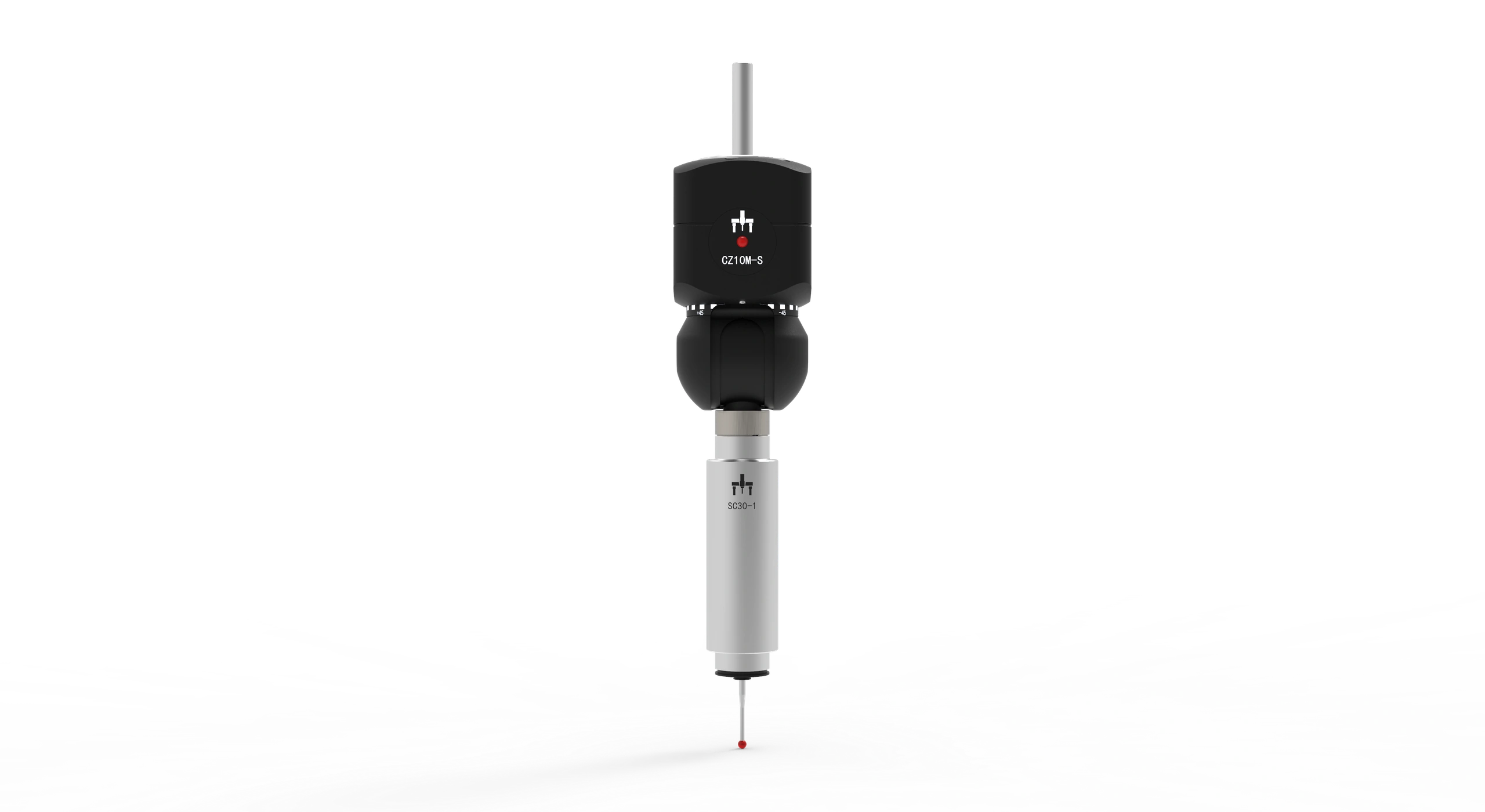

Best scanning configuration
ScanningTaurus 203010
MPEe4.5+L/250 µmMPEp5 µm
Large-Part Gantry CMM
Taurus Large-Part Gantry CMM
Large-part gantry CMM for automotive, aerospace, fixtures, molds, and heavy components.
PositioningLarge-part gantry CMM
Work volume
X2000 mm
Y3000–5000 mm
Z1000–1800 mm
Axis combinations vary by model. Build to suit available.LoadProject-specific / customizable
Best accuracy
Scanning
MPEe4.5+L/250 µmMPEp5 µm
Best Available Accuracy
Taurus Configuration Reference
Accuracy varies by model size, probe configuration, and acceptance conditions.

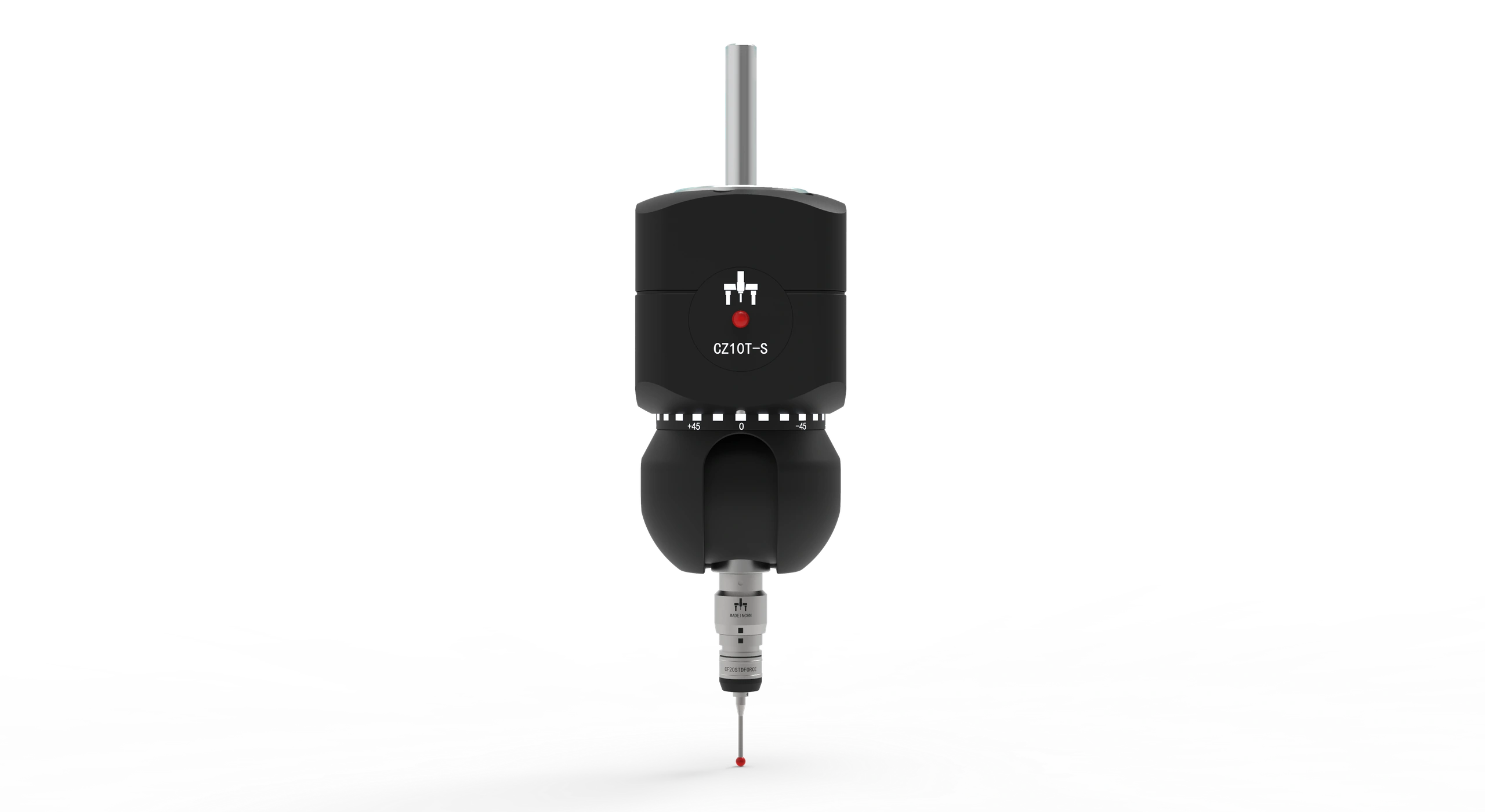

Best touch-trigger configuration
Touch-triggerTaurus 203010
MPEe5.5+L/250 µmMPEp6 µm
Model Range
Taurus Travel and Accuracy Options
Swipe left or right to see all specifications. Keyboard: focus the table and use the arrow keys.
| Model | Range | Dimension | Machine weight | Max speed | Max acceleration | Load | Scanning MPEe | Scanning MPEp | MPEThp/t | Touch-trigger MPEe | Touch-trigger MPEp |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Taurus 203010 | 2000×3000×1000 mm | 4280×3500×3680 mm | 9880 kg | 500 mm/s | 460 mm/s² | Project-specific | 4.5+L/250 µm | 5 µm | 5/90 | 5.5+L/250 µm | 6 µm |
| Taurus 203015 | 2000×3000×1500 mm | 4280×3500×4680 mm | 9960 kg | 500 mm/s | 460 mm/s² | Project-specific | 5.0+L/250 µm | 5 µm | 5.5/90 | 6.0+L/250 µm | 6.5 µm |
| Taurus 204015 | 2000×4000×1500 mm | 5280×3500×4680 mm | 11960 kg | 500 mm/s | 460 mm/s² | Project-specific | 5.0+L/250 µm | 5 µm | 5.5/90 | 6.0+L/250 µm | 6.5 µm |
| Taurus 205015 | 2000×5000×1500 mm | 6280×3500×4680 mm | 13960 kg | 500 mm/s | 460 mm/s² | Project-specific | 5.0+L/250 µm | 5 µm | 5.5/90 | 6.0+L/250 µm | 6.5 µm |
| Taurus 203018 | 2000×3000×1800 mm | 4280×3500×5280 mm | 10000 kg | 500 mm/s | 460 mm/s² | Project-specific | 5.5+L/250 µm | 6 µm | 6.5/90 | 6.5+L/250 µm | 7 µm |
| Taurus 204018 | 2000×4000×1800 mm | 5280×3500×5280 mm | 12000 kg | 500 mm/s | 460 mm/s² | Project-specific | 5.5+L/250 µm | 6 µm | 6.5/90 | 6.5+L/250 µm | 7 µm |
| Taurus 205018 | 2000×5000×1800 mm | 6280×3500×5280 mm | 14000 kg | 500 mm/s | 460 mm/s² | Project-specific | 5.5+L/250 µm | 6 µm | 6.5/90 | 6.5+L/250 µm | 7 µm |
Best-Fit Applications
Where Taurus Fits Best
Taurus is selected when part envelope, fixture size, or loading method exceeds bridge CMM limits and the project requires gantry planning.
Large parts
Use Taurus for oversized parts, fixtures, tooling, and heavy components that exceed bridge CMM travel.
Aerospace structures
A fit when foundation, loading route, fixture height, and site preparation are part of the quote.
Automotive tooling
Best handled as a project-specific gantry configuration rather than a standard catalog purchase.
Large Structural Frame Inspection
- TRAVEL
- 2000 × 3000 × 1500 mm
- STRUCTURE
- Gantry CMM
- PART
- Large frame / casting
- ACCURACY
- MPEe 5.0 + L/250 µm

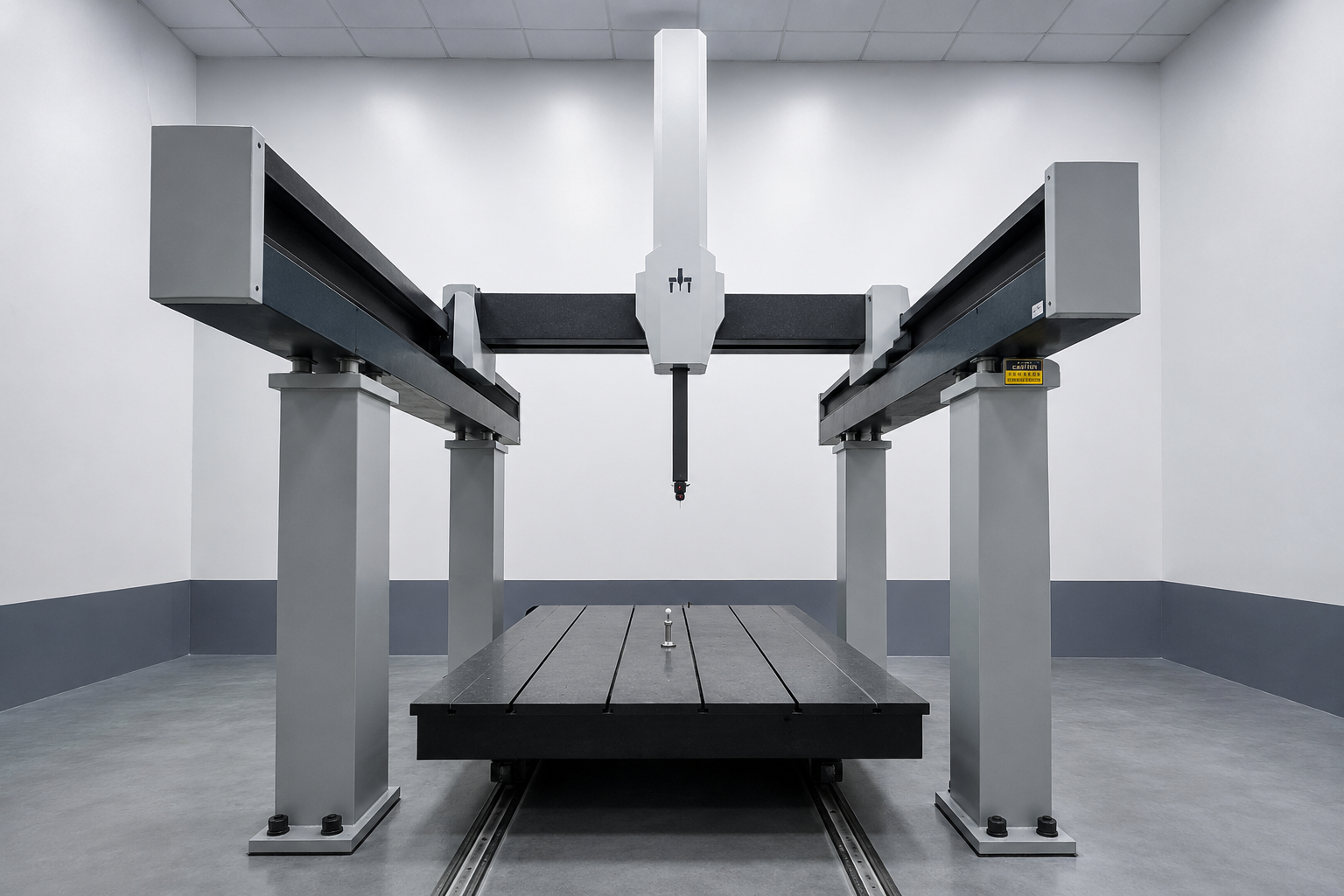

1Customer Scenario
Inspection of large machined frames, welded-and-machined bases, heavy fixtures and oversized castings.
2Why This Machine
Large 2000 × 3000 × 1500 mm measuring envelope and gantry access for heavy workpieces, loading and site-specific workflows.
3System Configuration
Gantry CMM with controller, motorized probe head, touch-trigger probe, long-stylus options and optional scanning package.
4Measurement Problem Solved
Large datum surfaces, bore locations, mounting interfaces, long-distance hole patterns and geometric relationships in one setup.
Similar applications
Large machining suppliers, aerospace structures, rail and transportation parts, heavy equipment, molds and oversized fixtures.
Structure & motion
Engineering Highlights
Taurus Structure and Motion Package
Taurus is a project-style gantry CMM where foundation, loading route, dual-side motion, and on-site acceptance planning are part of the configuration.
Floor-Mounted Gantry Structure
Uses the foundation plane as the working table for easier loading of large and heavy workpieces.
High-Rigidity Drive System
All three axes use a zero-backlash, high-stiffness friction steel-belt drive.
Ultra-Long Y-Axis Guides
Smooth guide joining technology supports long-travel large-part measurement.
Dual-Side Gantry Control
Dual elevated sides, dual scales, and dual drives help reduce Y-axis yaw error.
Environment & site requirements
Site Requirements
Confirm Environment Before Quotation
PeakMerit reviews installation conditions, model-specific load capacity, air, power, and acceptance needs before final quotation.
Load capacity
Project-specific, based on foundation, part support, fixture design, and loading method.
Temperature
18–22°C
Thermal stability
≤1°C/h; ≤2°C/24 h; spatial gradient ≤1°C/m
Humidity
40–70%
Voltage / Current
220 V ±10%; 15 A
Air Supply
6 bar / 0.6 MPa; 250 NL/min
Controller, probe & software options
Configured System Options
Controller, Probe, and Application Package
Select the machine family together with the controller, probe head, rack, joystick, software workflow, and acceptance requirements that fit the application.

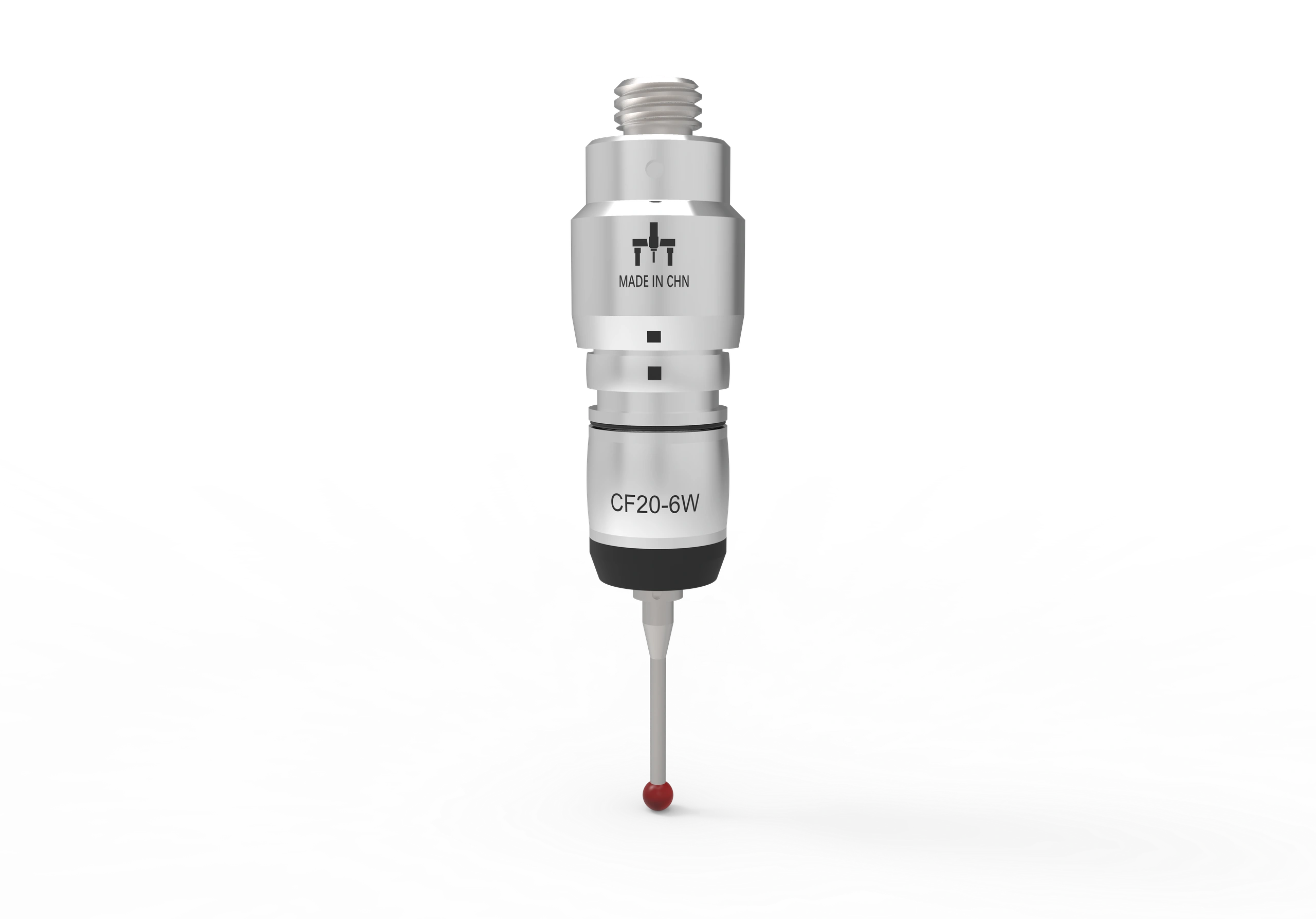

Touch-trigger package
For large features and fixture/tooling inspection where point measurement is sufficient.
View CF20 SeriesAsk before quoting
- Feature size
- Fixture height
- Tolerance target
SC30 scanning package
For large-part profile or surface data where compatible with the gantry project.
View SC30 Scanning ProbesAsk before quoting
- Scanning features
- Large-part access
- Software workflow

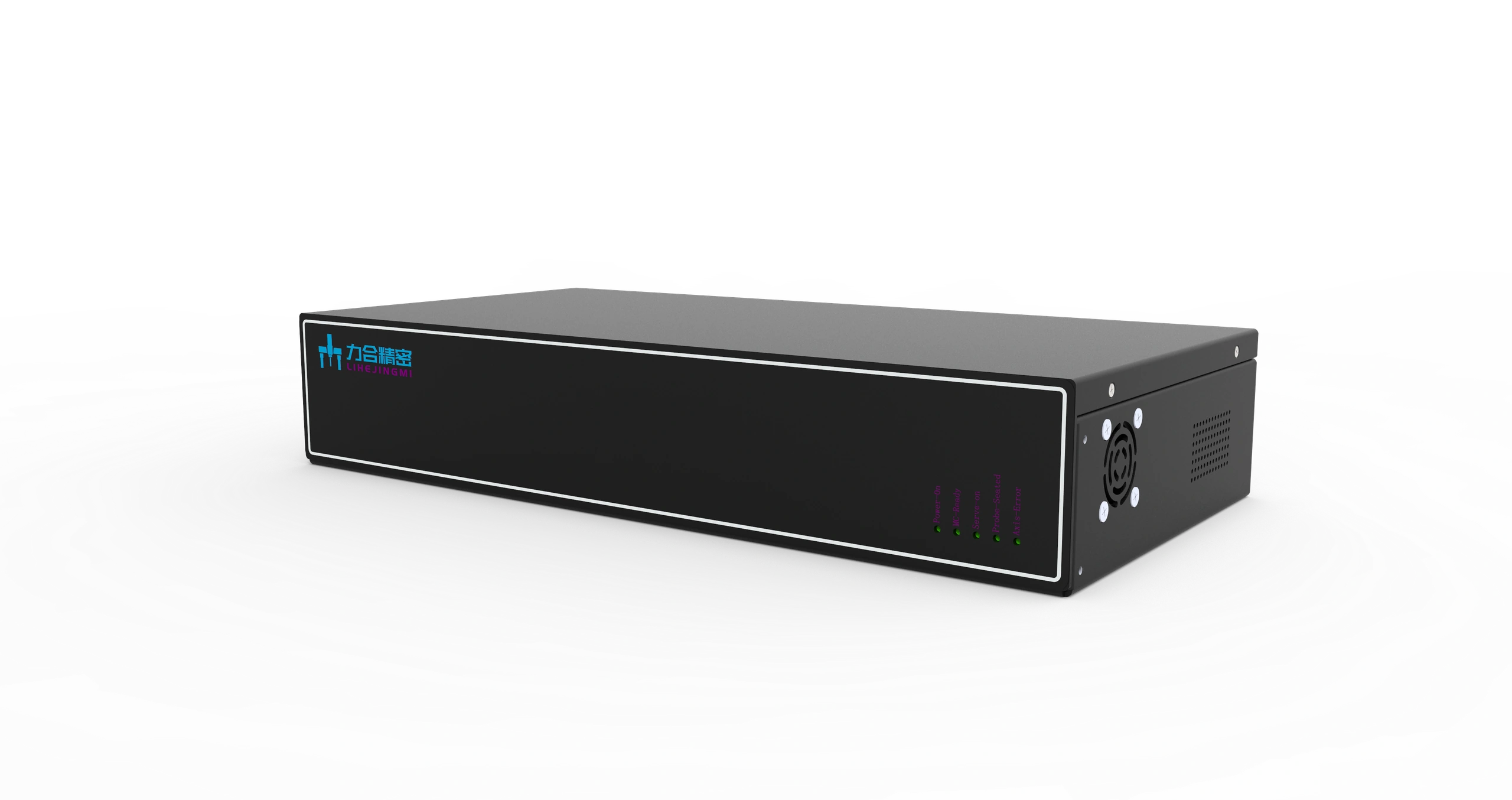

Project-specific controller package
For gantry motion control, dual-drive coordination, and installation planning.
View MACC ControllersAsk before quoting
- Travel envelope
- Dual-drive coordination
- Installation route

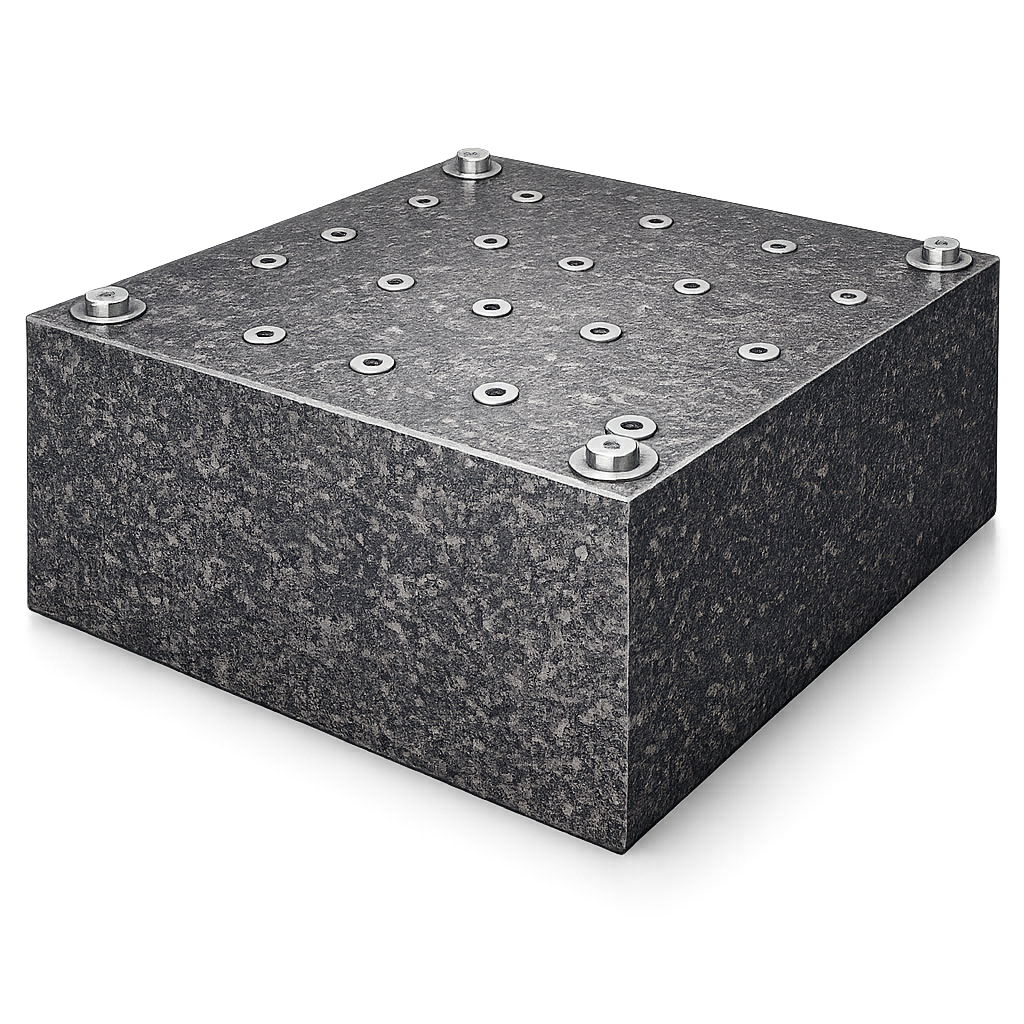

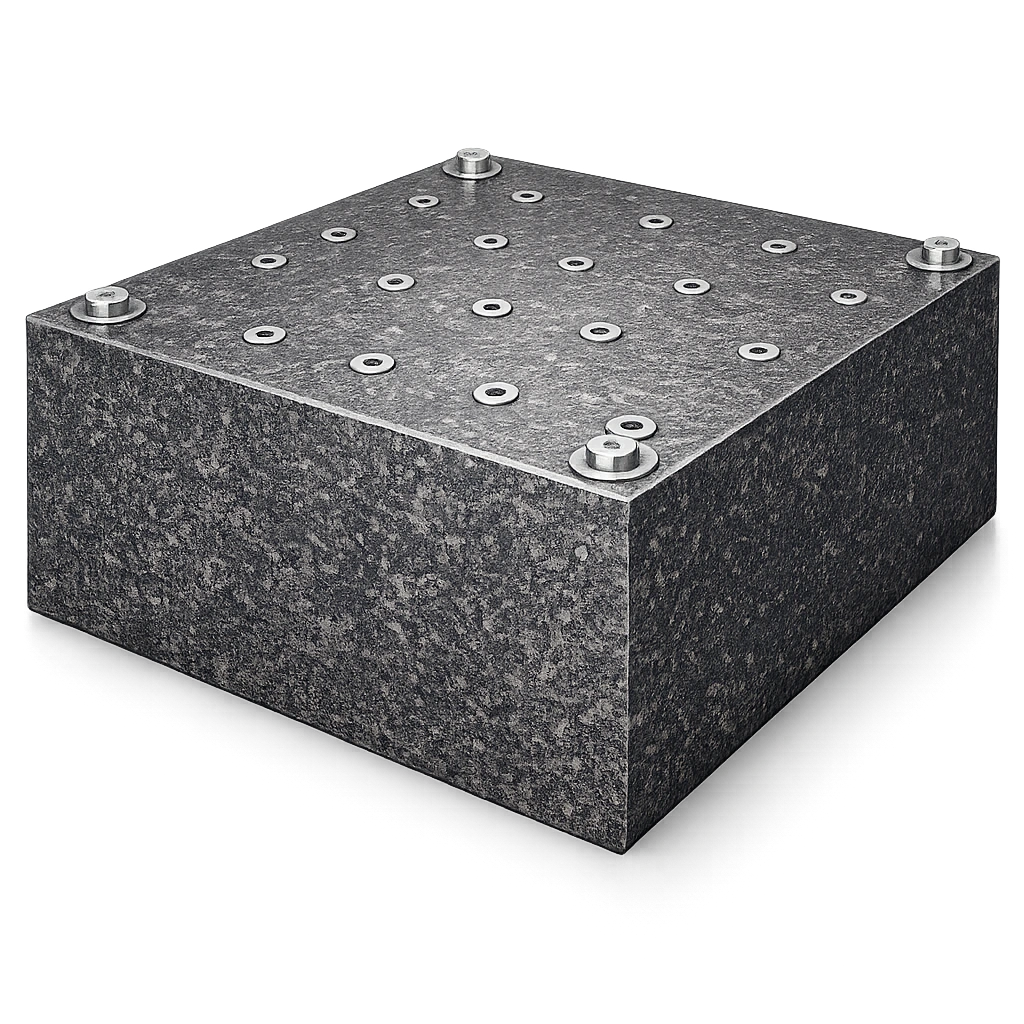

Foundation and loading review
For part support, fixture height, access route, and on-site acceptance planning.
Ask before quoting
- Foundation
- Part support
- Fixture height
- Loading method
Selection Boundaries
Not Ideal For
- Small or medium parts that fit a bridge CMM
- Budget-sensitive first CMM projects
- Sites without enough foundation, access, or installation clearance
- Applications where a controlled bridge CMM gives better value
Nearby Choices
Compare With Nearby Models
Polaris / Gemini
Use bridge CMMs when the part envelope, fixture, and loading method fit standard bridge travel.
View PolarisLibra
Use Libra when controlled-room ultra-high precision is more important than large travel.
View LibraGemini
Use Gemini for smaller high-precision parts that do not require gantry travel.
View GeminiProject Planning
Large-Part CMM Planning Checklist
Foundation planning
Confirm foundation flatness, stability, embedded plate requirements, machine footprint, and surrounding clearance.
Transportation route
Review unloading method, door height, crane or forklift access, crate path, and installation space.
Installation and alignment
Plan installation sequence, leveling, guide alignment, air and power routing, and environmental stabilization.
On-site acceptance
Define acceptance artifact, measurement length, temperature condition, and acceptance standard before shipment.
Custom load requirements
Clarify maximum part weight, loading method, floor loading, fixture height, and part support strategy.
Project timeline
Align production schedule, site preparation, installation crew, acceptance testing, and operator training.
CONTINUE YOUR REVIEW
Explore related resources and next steps.
Compare CMM families
Check other platforms before settling on travel and configuration.
Understand CMM accuracy
Read the specification terms alongside the model and operating conditions.
Touch-trigger or scanning?
Choose the measurement method around features and inspection needs.
See project updates
Explore published CMM setups and field activity.
Ready to Configure This CMM?
Send your part size, tolerance requirement, inspection environment, and preferred probing method. PeakMerit will recommend a suitable model and configuration for quotation.
