Probing & Controllers Overview

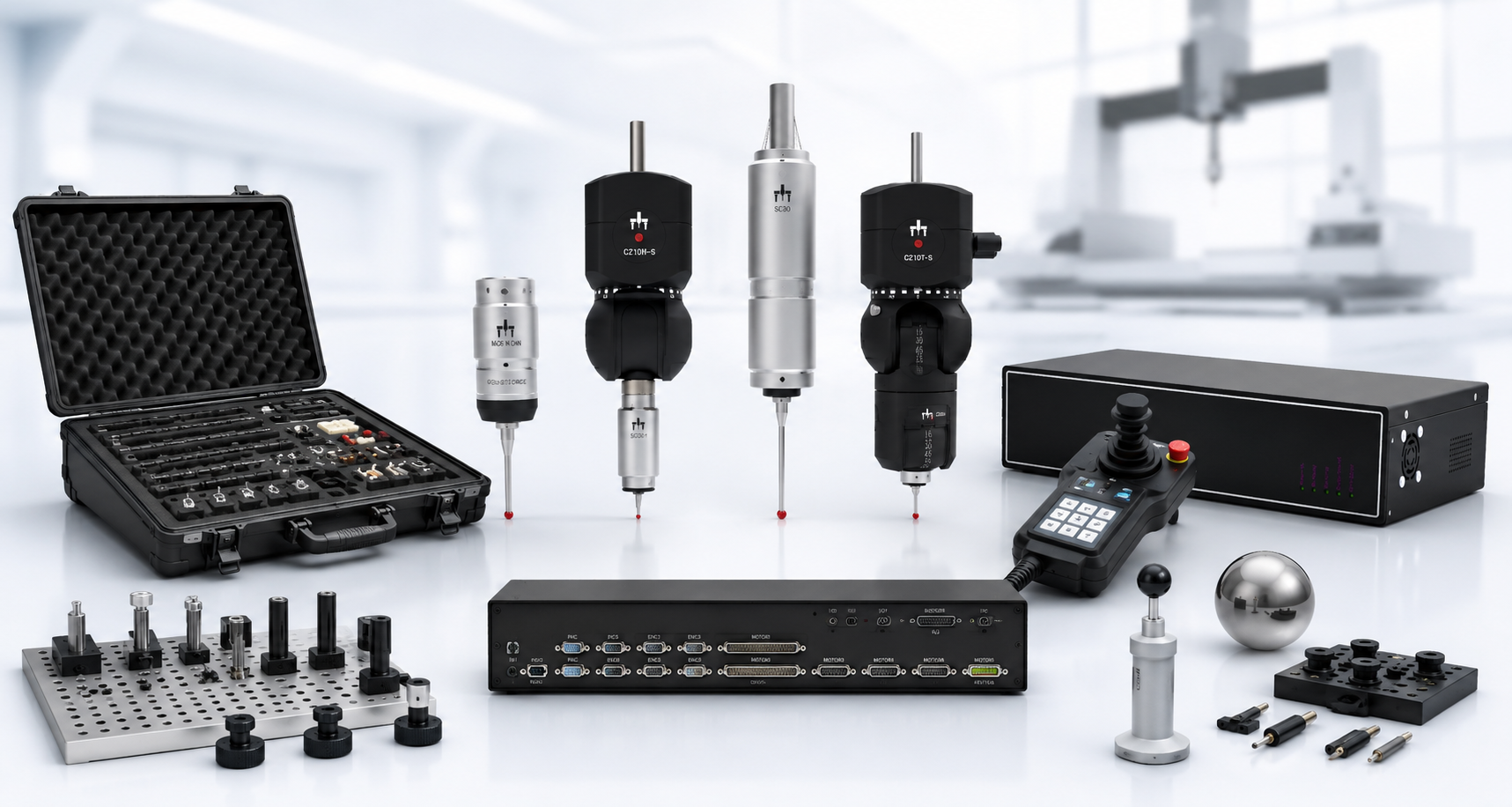

Browse PeakMerit probe heads, touch-trigger modules, scanning probes, motion controllers, joystick controllers, and CMM accessories. This is a product catalog page for individual components, not a bundled solution page.

Controllers

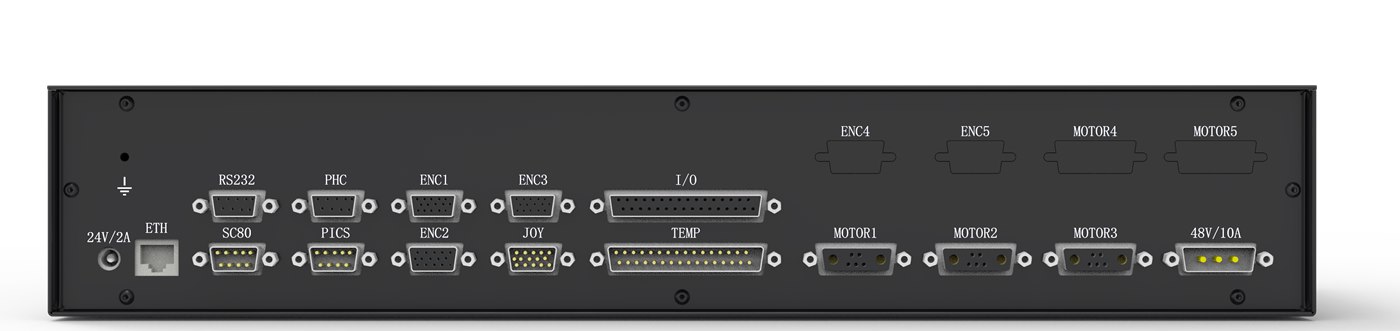

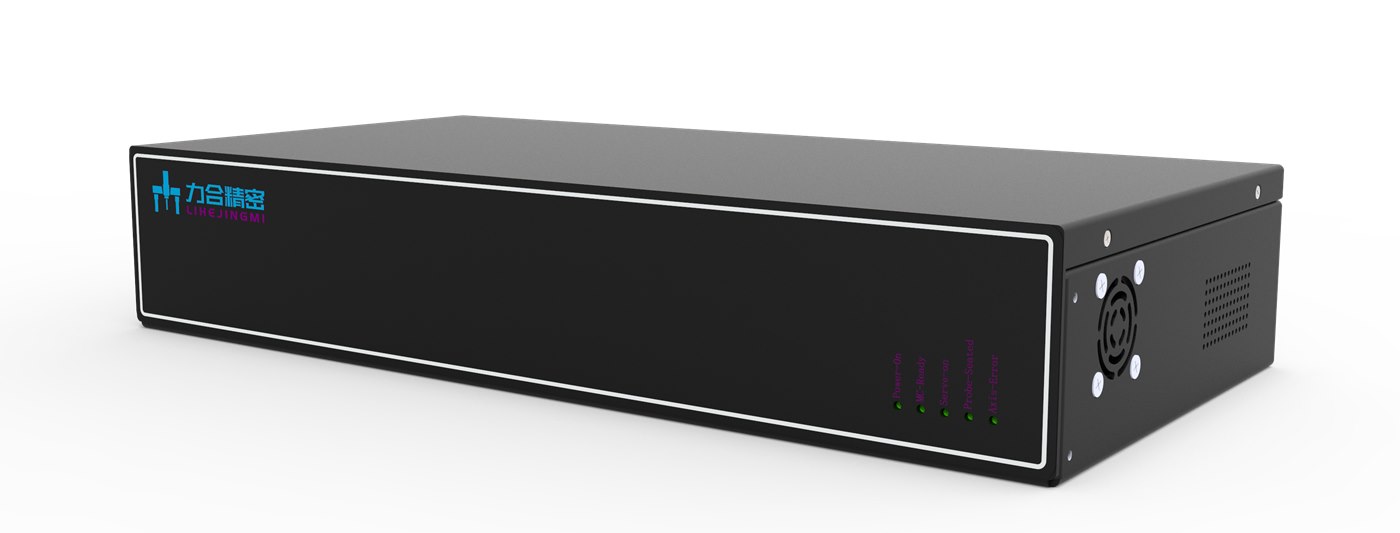

  • MACC CMM Motion Controller: Integrated motion controller and drive system with Ethernet communication, SDK / I++ DME interface, probe signal interfaces, and PLUS versions for scanning applications.

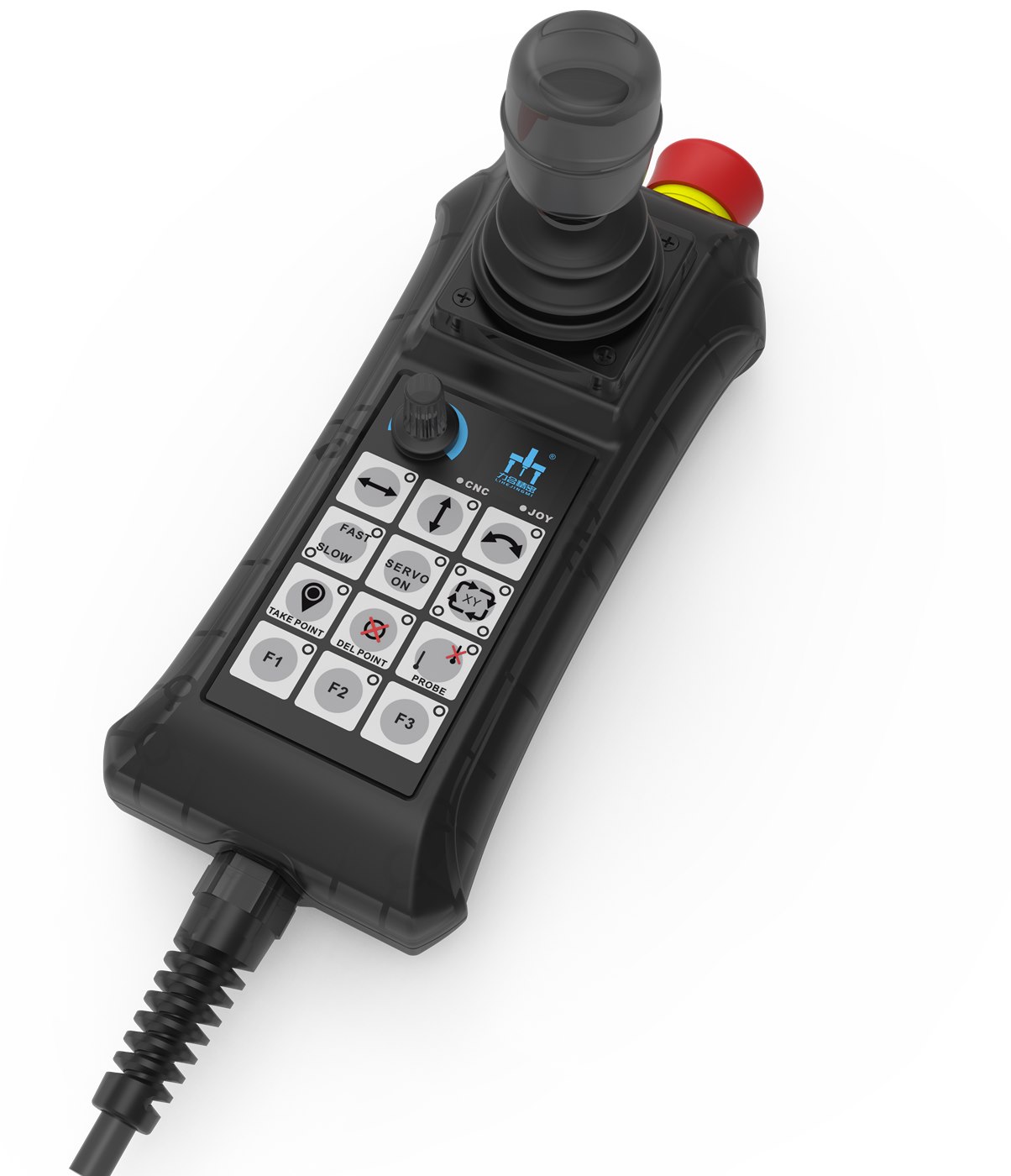

  • IMO Joystick Controller: Handheld CMM operation controller for axis movement, CNC / joystick status, motor servo control, probe disable, point capture, and point delete functions.

Scanning Probes

  • SC30 Compact Scanning Probe: Compact scanning probe with trigger and scanning modes, M3 stylus interface, 0.1 um resolution, and model options for different stylus length ranges.

Touch-Trigger Modules

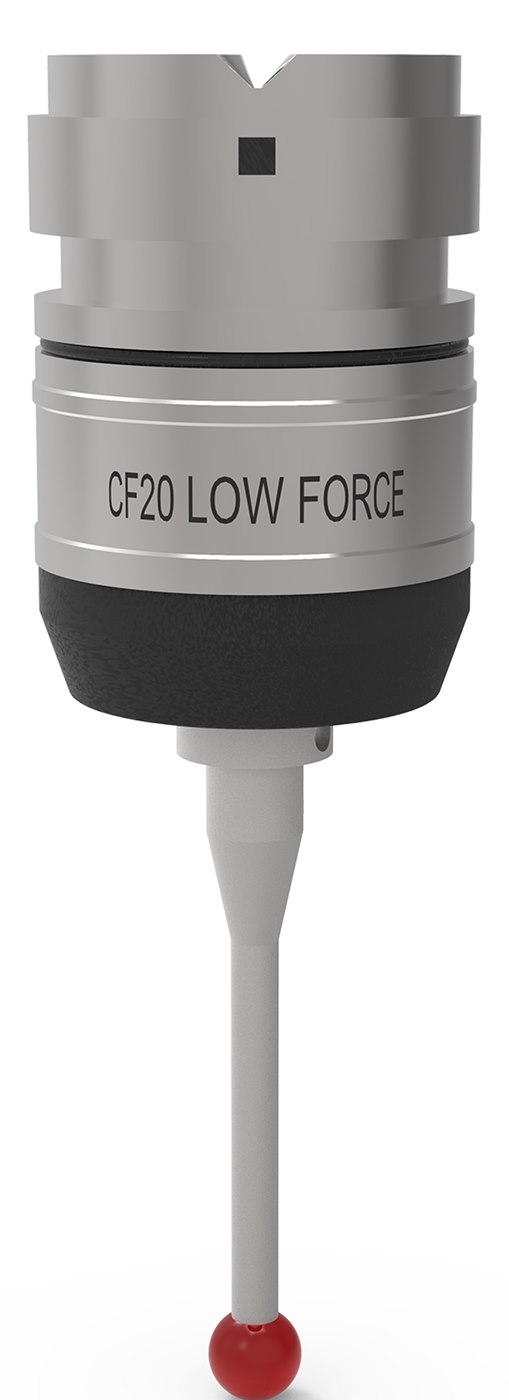

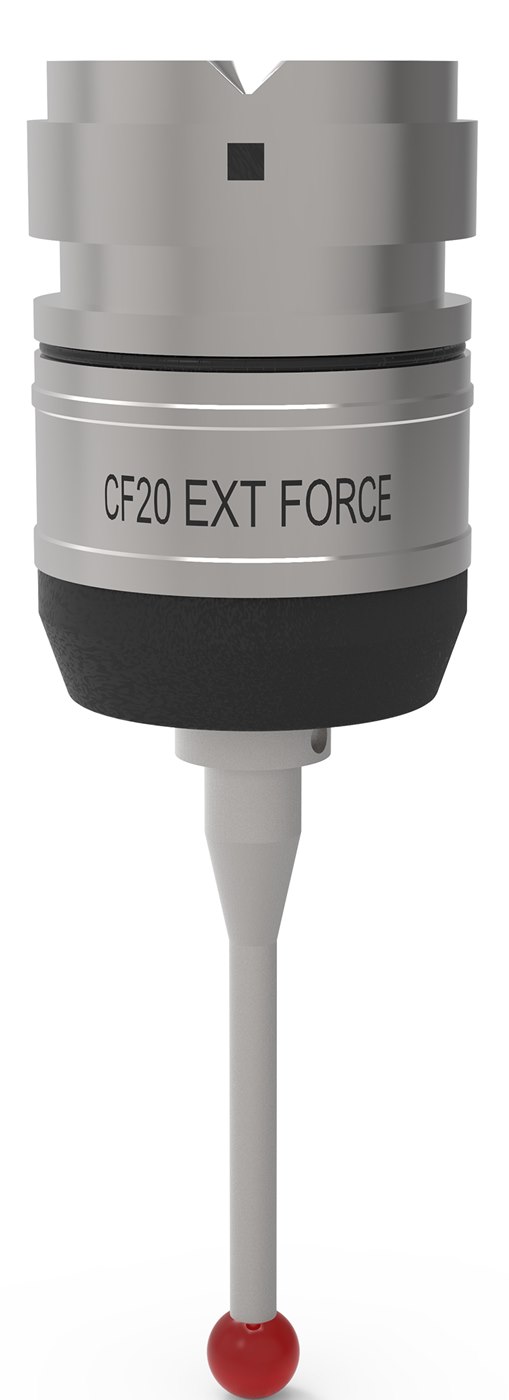

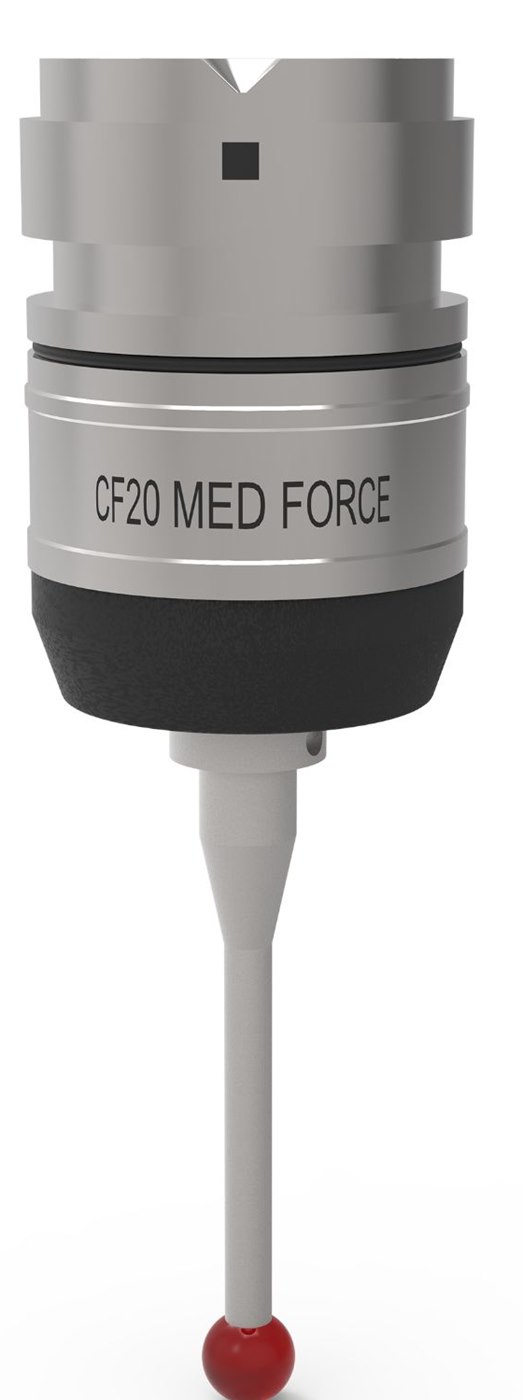

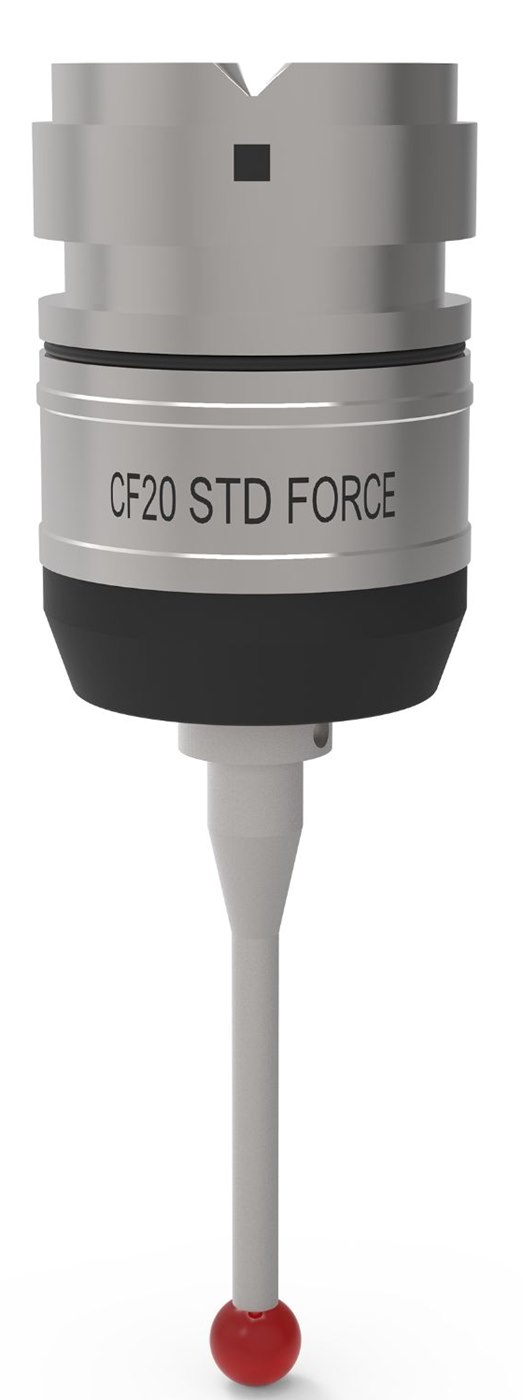

  • CF20 Touch-Trigger Probe Module Family: Five-way and six-way touch-trigger probe modules for manual or automatic stylus module changes, with force options for different measurement needs.

Motorized Probe Heads

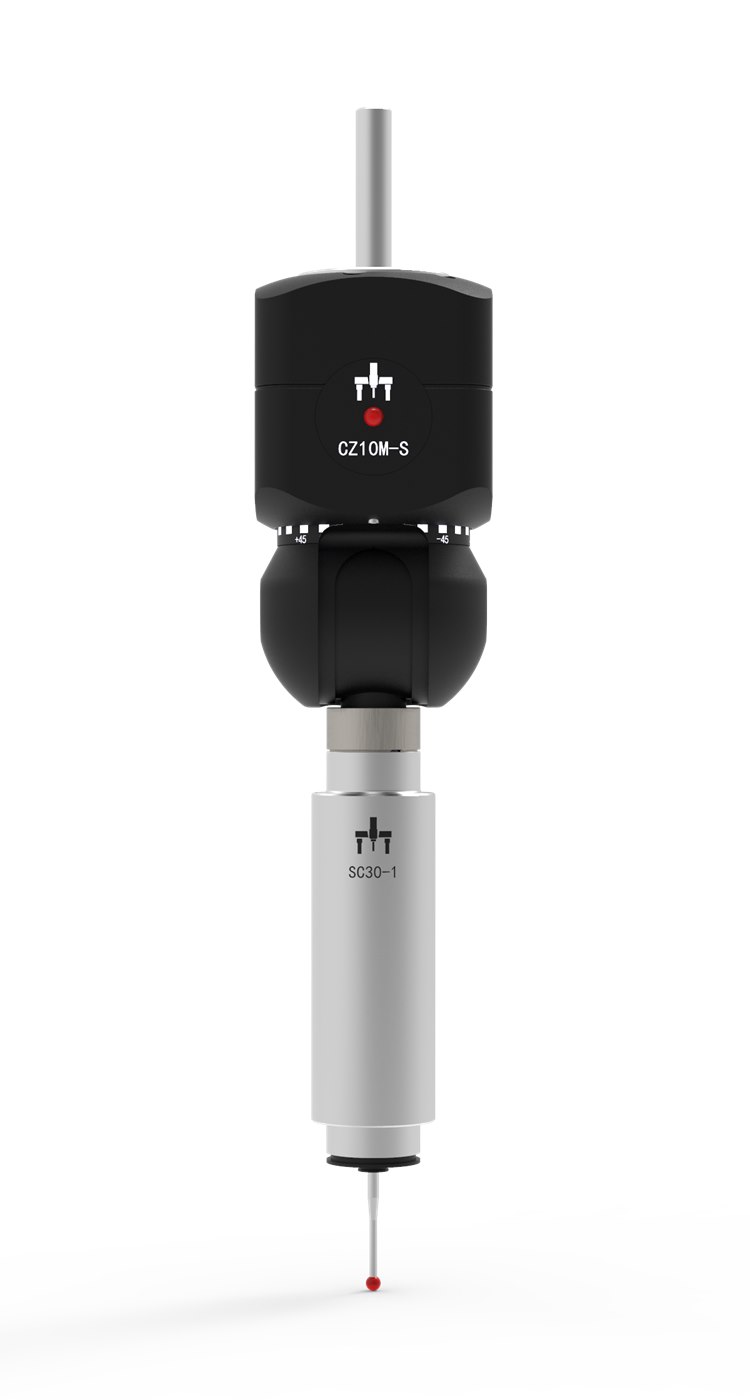

  • CZ10M-S Motorized Indexing Probe Head: 720 positions, 7.5 degree indexing, 0.5 um repeatability, for trigger and scanning probe configurations.

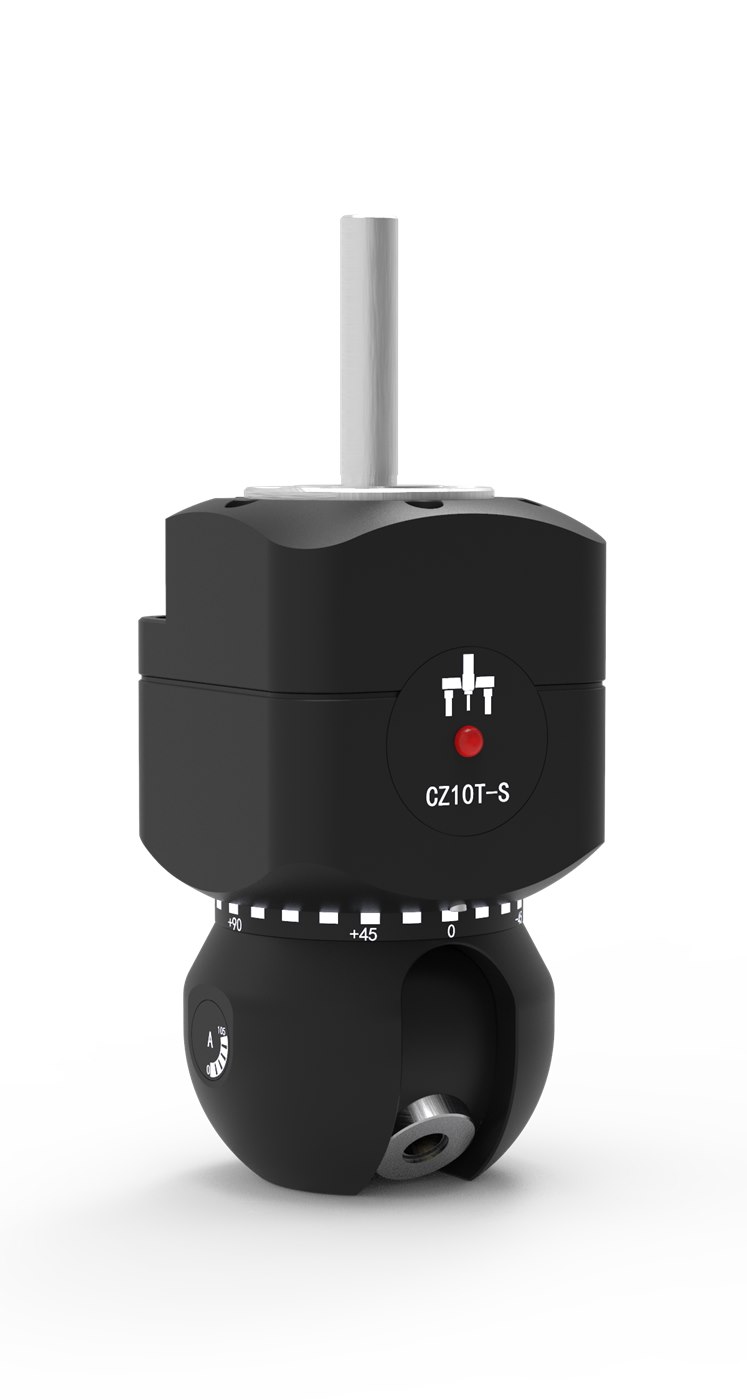

  • CZ10T-S Motorized Indexing Probe Head: High-speed indexing probe head for repetitive precision inspection.

  • CZ10M-L Heavy-Duty Motorized Probe Head: Higher torque motorized head for longer extensions and SC30 scanning probe configurations.

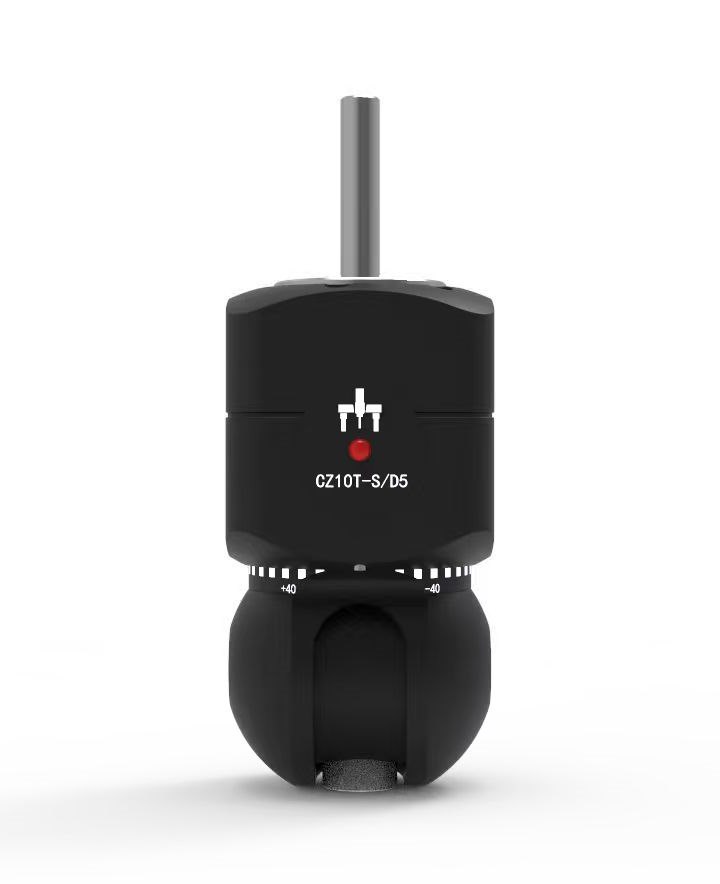

  • CZ10T-S/D5 Fully Automatic Probe Head: 5 degree indexing and 1,584 spatial positions for dense angle positioning.

Semi-Automatic / Fixed Heads

  • CZ20i Semi-Automatic Probe Head: 15 degree indexing, 168 repeatable positions, compact configuration for touch-trigger probing.

  • CZ6 Fixed Probe Head Family: Fixed probe head options for magnetic quick-change, M8 probe mounting, and automatic attachment configurations.

Accessories

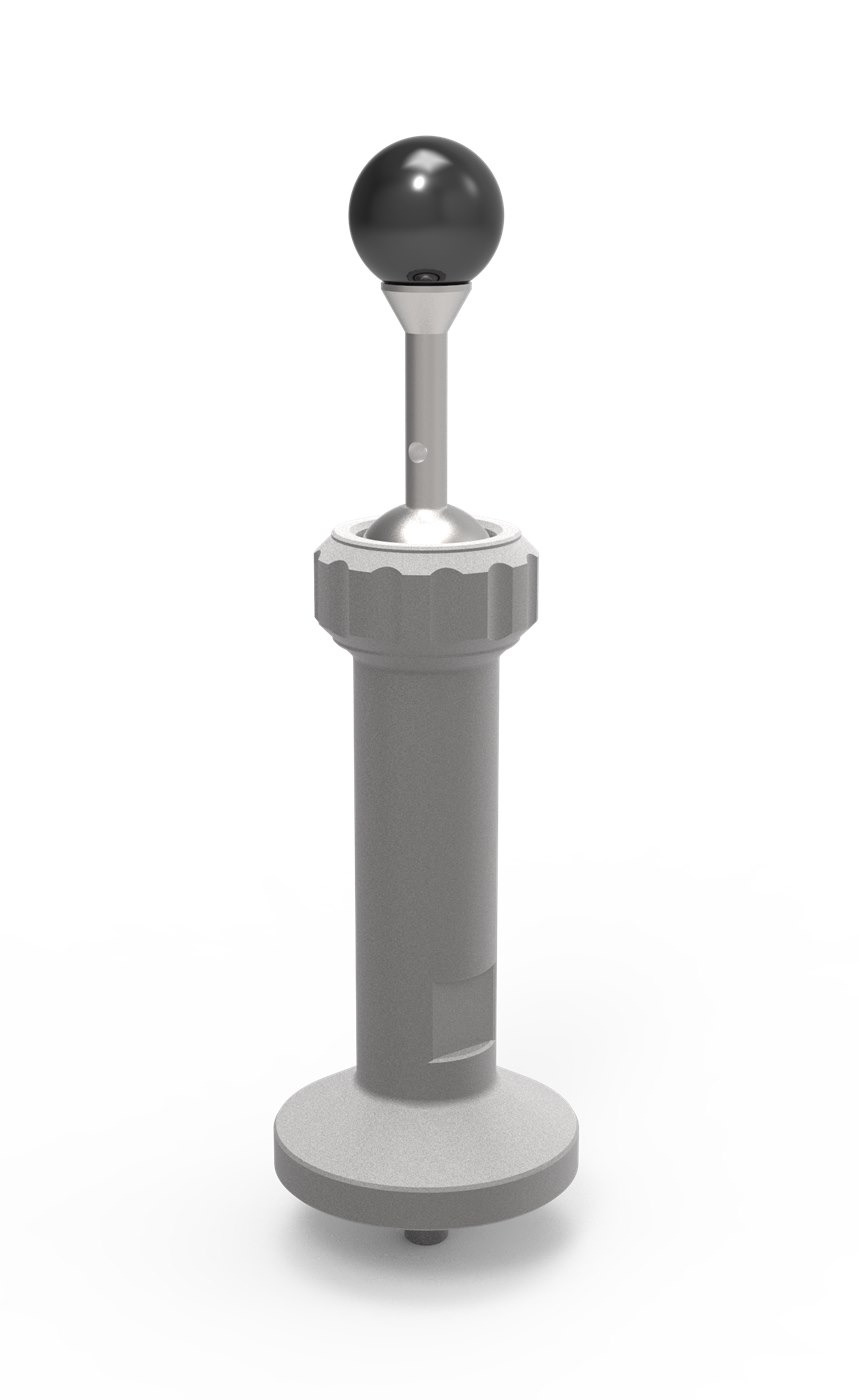

  • Calibration Sphere: CMM calibration accessory available in wear-resistant material options.

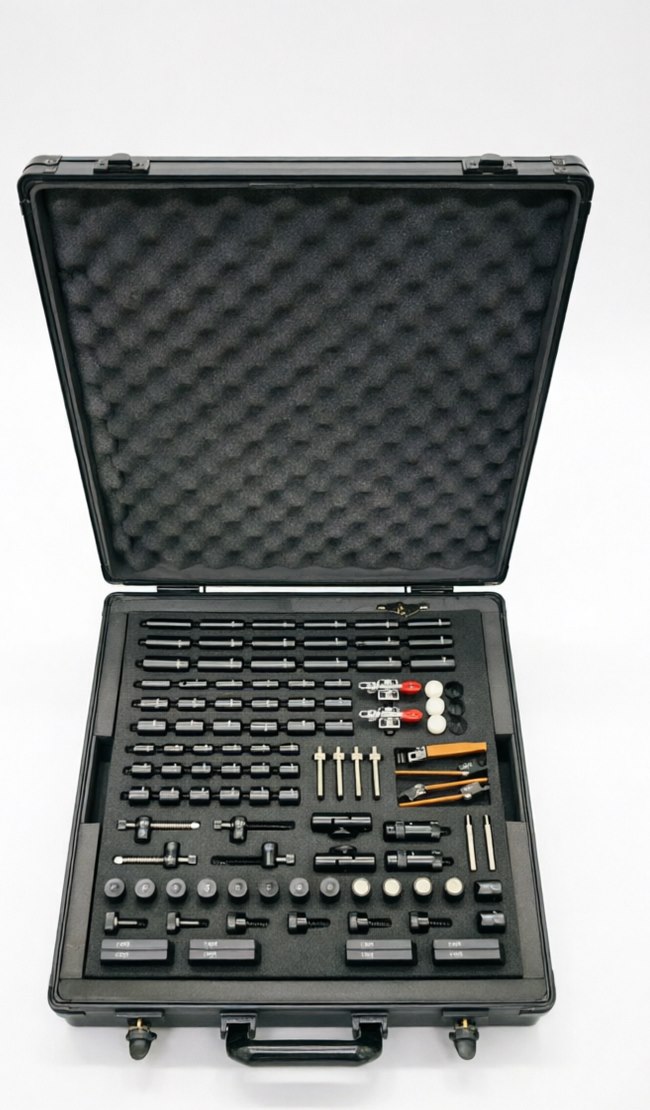

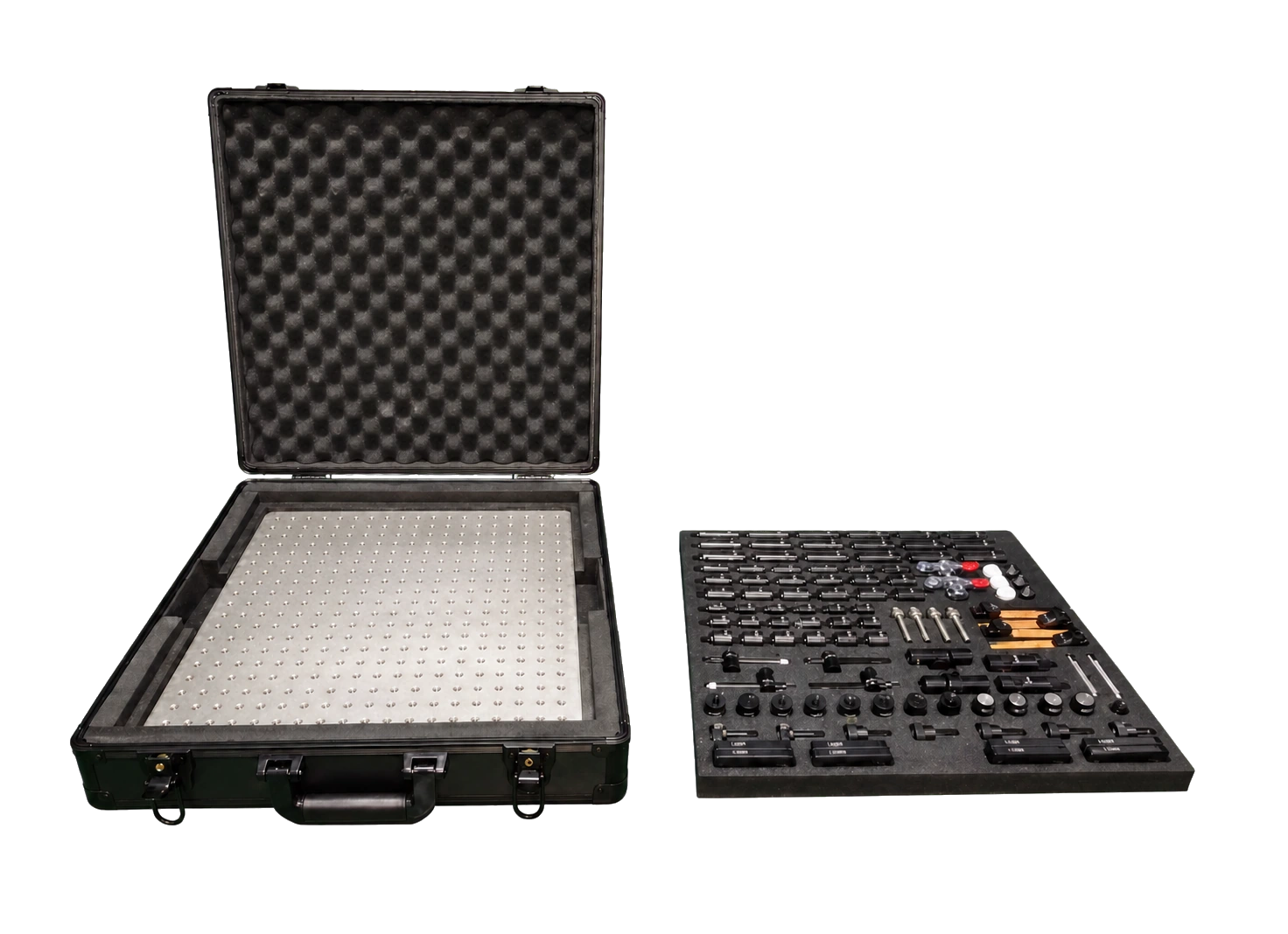

  • CMM Universal Clamping Kit: Modular fixture kit for fast part setup on CMM granite tables.

CTA
Request a CMM quote or compatibility check: /request-cmm-quote
