Best scanning configuration
ScanningGemini 565
MPEe0.9+L/300 µmMPEp1.1 µm
High-Precision Bridge CMM
Gemini High-Precision Bridge CMM
High-precision bridge CMM for precision machining, molds, consumer electronics / precision components, automotive parts, and quality labs.
PositioningHigh-precision bridge CMM
Work volume
X500–2000 mm
Y600–3000 mm
Z500–1500 mm
Axis combinations vary by model.Load500–3000 kg
Best accuracy
Scanning
MPEe0.9+L/300 µmMPEp1.1 µm
Best Available Accuracy
Gemini Configuration Reference
Accuracy varies by model size, probe configuration, and acceptance conditions.
Best touch-trigger configuration
Touch-triggerGemini 565
MPEe1.6+L/300 µmMPEp2 µm
Model Range
Gemini Travel and Accuracy Options
Swipe left or right to see all specifications. Keyboard: focus the table and use the arrow keys.
| Model | Range | Dimension | Machine weight | Max speed | Max acceleration | Load | Scanning MPEe | Scanning MPEp | MPEThp/t | Touch-trigger MPEe | Touch-trigger MPEp |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Gemini 565 | 500×600×500 mm | 1400×1600×2650 mm | 1600 kg | 500 mm/s | 700 mm/s² | 500 kg | 0.9+L/300 µm | 1.1 µm | 1.8/90 | 1.6+L/300 µm | 2 µm |
| Gemini 686 | 600×800×600 mm | 1500×1800×2800 mm | 1800 kg | 500 mm/s | 700 mm/s² | 800 kg | 1.0+L/300 µm | 1.2 µm | 2.0/90 | 1.7+L/300 µm | 2.1 µm |
| Gemini 8106 | 800×1000×600 mm | 1700×2000×2800 mm | 2200 kg | 500 mm/s | 700 mm/s² | 1000 kg | 1.2+L/300 µm | 1.3 µm | 2.2/90 | 1.8+L/300 µm | 2.2 µm |
| Gemini 8126 | 800×1200×600 mm | 1700×2200×2800 mm | 2400 kg | 500 mm/s | 700 mm/s² | 1000 kg | 1.2+L/300 µm | 1.3 µm | 2.2/90 | 1.8+L/300 µm | 2.2 µm |
| Gemini 8156 | 800×1500×600 mm | 1700×2500×2800 mm | 2800 kg | 500 mm/s | 700 mm/s² | 1000 kg | 1.3+L/300 µm | 1.5 µm | 2.3/90 | 1.8+L/300 µm | 2.2 µm |
| Gemini 10128 | 1000×1200×800 mm | 2000×2700×3300 mm | 3750 kg | 500 mm/s | 700 mm/s² | 1500 kg | 1.3+L/300 µm | 1.5 µm | 2.3/90 | 1.8+L/300 µm | 2.2 µm |
| Gemini 10158 | 1000×1500×800 mm | 2000×3000×3300 mm | 4150 kg | 500 mm/s | 700 mm/s² | 1500 kg | 1.3+L/300 µm | 1.5 µm | 2.3/90 | 1.8+L/300 µm | 2.2 µm |
| Gemini 102010 | 1000×2000×1000 mm | 2000×3500×3700 mm | 5250 kg | 500 mm/s | 700 mm/s² | 1500 kg | 1.5+L/300 µm | 1.8 µm | 2.5/90 | 1.8+L/300 µm | 2.2 µm |
| Gemini 121510 | 1200×1500×1000 mm | 2200×3000×3700 mm | 5200 kg | 500 mm/s | 700 mm/s² | 2000 kg | 1.5+L/300 µm | 1.8 µm | 2.5/90 | 2.0+L/300 µm | 2.4 µm |
| Gemini 122010 | 1200×2000×1000 mm | 2200×3500×3700 mm | 6100 kg | 500 mm/s | 700 mm/s² | 2000 kg | 1.5+L/300 µm | 1.8 µm | 2.5/90 | 2.0+L/300 µm | 2.4 µm |
| Gemini 152010 | 1500×2000×1000 mm | 2700×3600×3700 mm | 7100 kg | 500 mm/s | 700 mm/s² | 2500 kg | 1.7+L/300 µm | 2.1 µm | 2.7/90 | 2.6+L/300 µm | 3 µm |
| Gemini 152510 | 1500×2500×1000 mm | 2700×4100×3700 mm | 8100 kg | 500 mm/s | 700 mm/s² | 2500 kg | 1.7+L/300 µm | 2.1 µm | 2.7/90 | 2.6+L/300 µm | 3 µm |
| Gemini 153012 | 1500×3000×1200 mm | 2800×4600×4100 mm | 10150 kg | 500 mm/s | 700 mm/s² | 3000 kg | 2.0+L/300 µm | 2.4 µm | 3.0/90 | 3.2+L/300 µm | 3.6 µm |
| Gemini 203015 | 2000×3000×1500 mm | 3300×4600×4800 mm | 13200 kg | 500 mm/s | 700 mm/s² | 3000 kg | 2.8+L/300 µm | 3.3 µm | 4.0/90 | 3.5+L/300 µm | 3.9 µm |
Best-Fit Applications
Where Gemini Fits Best
Gemini is selected when a bridge CMM still fits the part envelope but the tolerance target, scanning workflow, or repeatability requirement calls for a higher accuracy class.
Precision components
Use Gemini when tighter bridge CMM accuracy and scanning-oriented workflows are important.

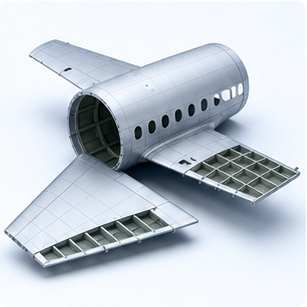

Aerospace components
A strong fit for aerospace components that need stable bridge CMM accuracy, scanning workflows, and repeatable controlled-room inspection.
consumer electronics / precision components
Good when the part fits a bridge CMM but the application needs a higher accuracy class than Polaris.

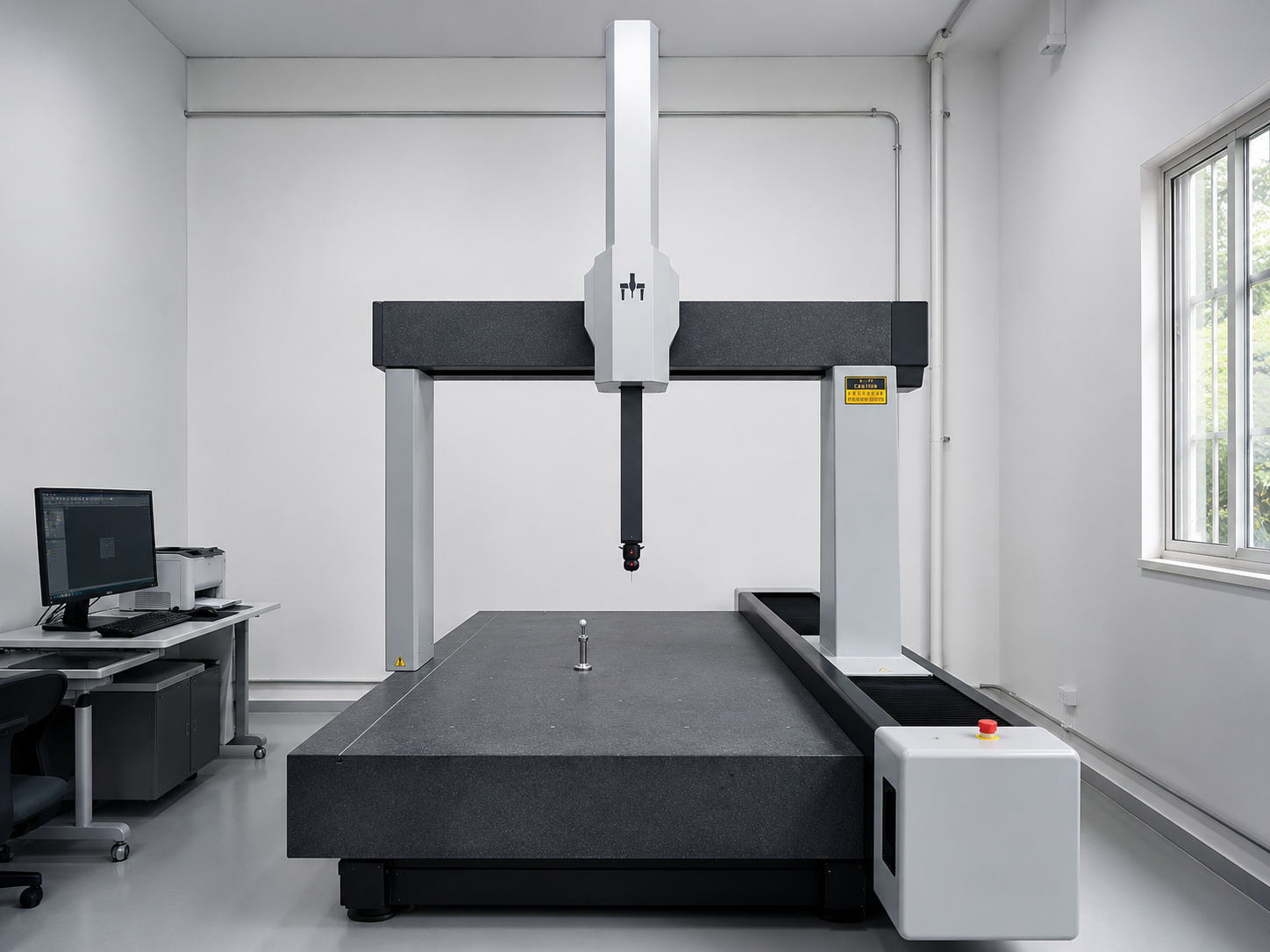

Precision Mold Base and Fixture Inspection
- TRAVEL
- 1200 × 1500 × 1000 mm
- STRUCTURE
- Ultra high-accuracy bridge
- PART
- Mold base / fixture plate
- ACCURACY
- MPEe 1.5 + L/300 µm · Scanning
1Customer Scenario
High-accuracy inspection of larger mold bases, fixture plates and tooling components with guide holes and reference surfaces.
2Why This Machine
Large measuring envelope, higher accuracy class and stronger Z-axis clearance for demanding tooling and precision fixture inspection.
3System Configuration
Motorized indexing probe head with a scanning probe for contours, long edges and precision surfaces.
4Measurement Problem Solved
Bore-to-bore spacing, guide-pin alignment, insert pocket location, datum flatness and top-to-side machining relationships.
Similar applications
Mold shops, die makers, precision fixture builders, automation equipment builders and high-accuracy CNC suppliers.
Structure & motion
Engineering Highlights
Gemini Structure and Motion Package
Gemini focuses on stability, smooth motion, and scanning-oriented inspection for precision machining, molds, automotive parts, and precision components.
Integrated Granite Guideway
One-piece granite guideway design supports long-term measurement stability.
Kevlar Drive Belt
Designed to improve drive efficiency, smoothness, and positioning precision.
Optimized for Scanning
High stiffness-to-weight ratio supports scanning measurement applications.
Four-Sided Air Bearing System
Closed, four-sided air-bearing structure helps maintain long-term measurement accuracy.
Environment & site requirements
Site Requirements
Confirm Environment Before Quotation
PeakMerit reviews installation conditions, model-specific load capacity, air, power, and acceptance needs before final quotation.
Load capacity
Model-specific. See model table. Family range: 500–3000 kg.
Temperature
18–22°C
Thermal stability
1°C/h; 2°C/24 h; spatial gradient 1°C/m
Humidity
40–70%
Voltage / Current
220 V ±10%; 15 A
Air Supply
6 bar / 0.6 MPa; 150 NL/min
Controller, probe & software options
Configured System Options
Controller, Probe, and Application Package
Select the machine family together with the controller, probe head, rack, joystick, software workflow, and acceptance requirements that fit the application.
Touch-trigger package
For high-precision dimensional point measurement.
View CF20 SeriesAsk before quoting
- Feature size
- Tolerance target
- Acceptance condition
SC30 scanning package
For surface, profile, and contour data where compatible with the selected Gemini model and software workflow.
View SC30 Scanning ProbesAsk before quoting
- Selected Gemini model
- Scanning features
- Software workflow

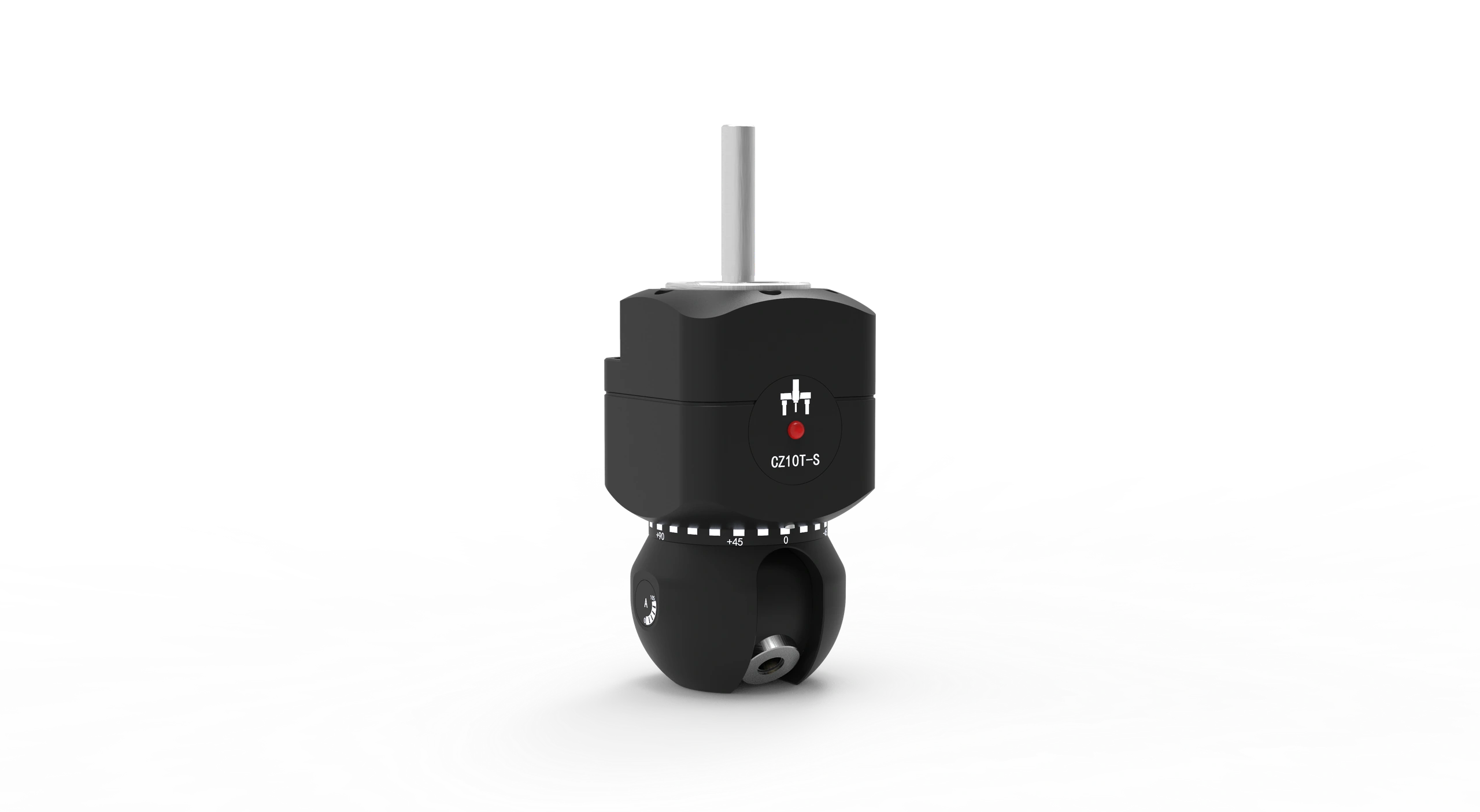

Motorized probe head package
For repeatable multi-angle access in precision inspection routines.
View CZ10T-S Probe HeadAsk before quoting
- Required probe angles
- Repeatability target
- Program complexity

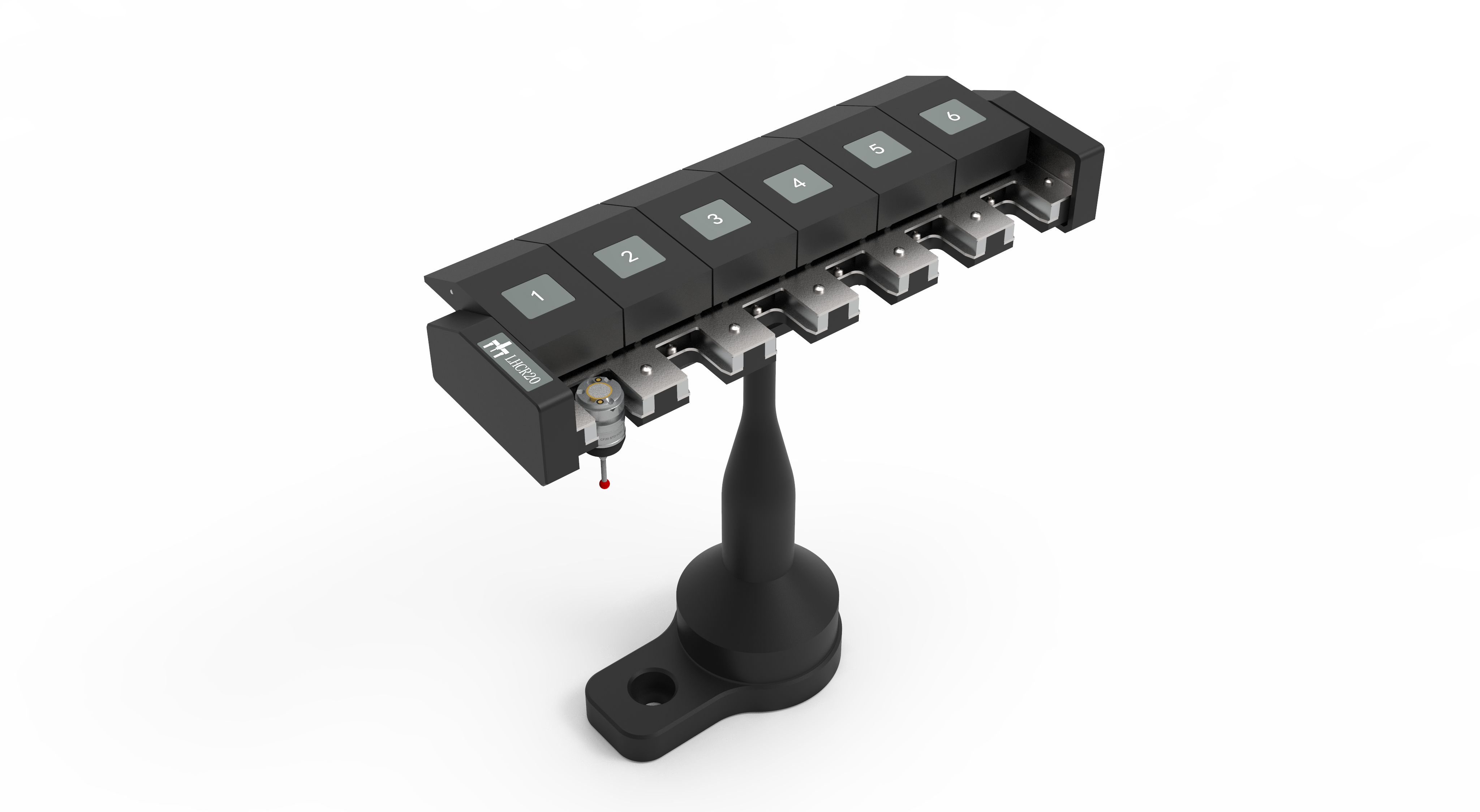

Changing rack option
For automated stylus or module changes in more complex programs.
View Changing RacksAsk before quoting
- Rack location
- Stylus/module count
- Program flow
Selection Boundaries
Not Ideal For
- Entry-level budget projects where Pisces is sufficient
- Ultra-high-precision fixed-bridge applications better suited to Libra
- Shop-floor near-line inspection where Aries is a better workflow fit
- Very large parts requiring Taurus gantry travel
Nearby Choices
Compare With Nearby Models
Polaris
Polaris if general manufacturing QC is the primary need.
View PolarisLibra
Libra if ultra-high-precision fixed-bridge measurement is required.
View LibraTaurus
Taurus if the part envelope exceeds bridge CMM travel.
