Probe Head Series

One Series.Six Probe-Head Options.

Motorized, scanning-ready, heavy-duty, fine-indexing, semi-automatic, and fixed configurations for new CMM systems and retrofit projects.

Touch TriggerScanning Ready720 / 1,584 PositionsManual & Fixed
Compare all modelsBuild a probing package

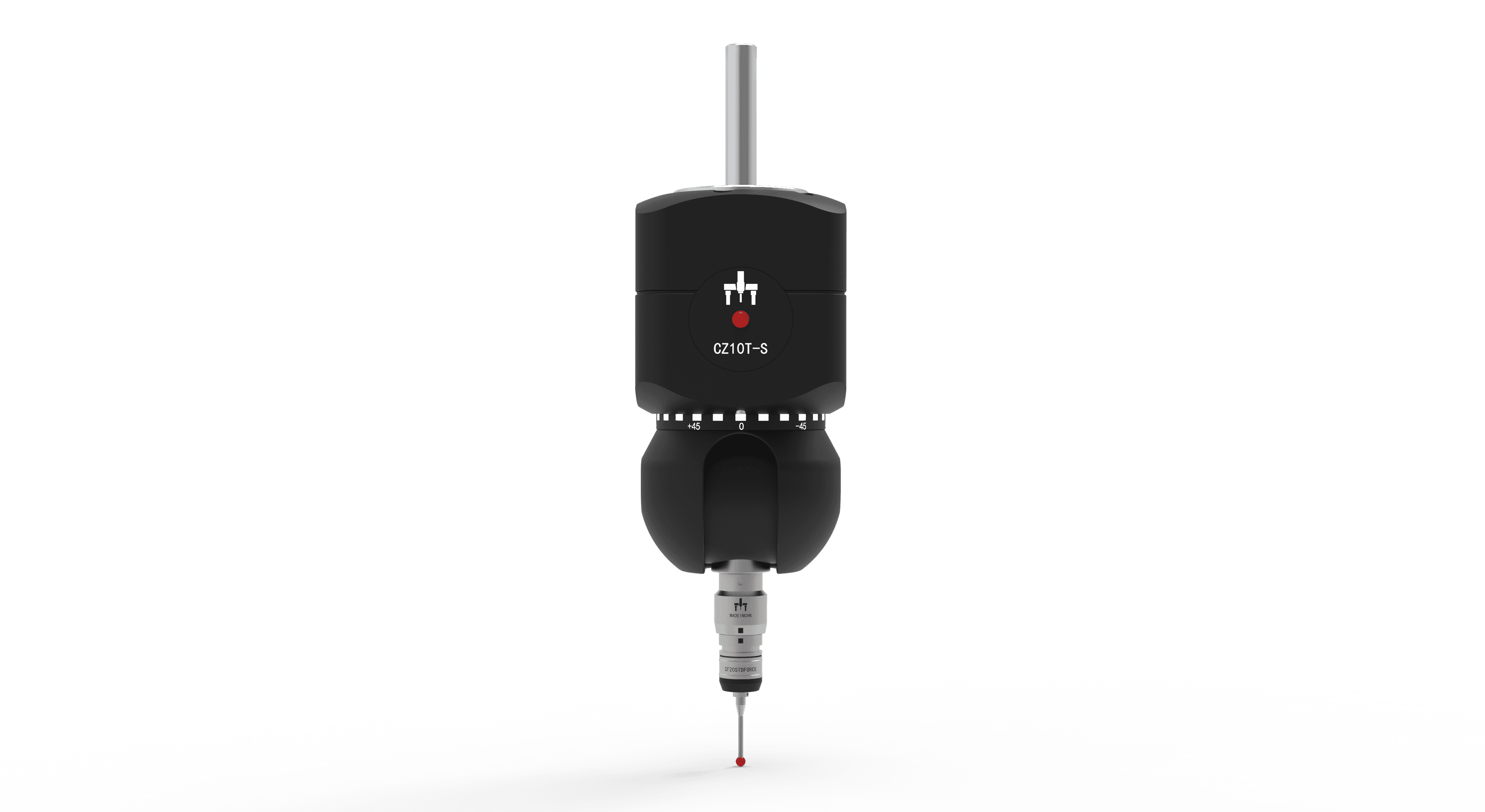

CZ10T-S high-speed automatic CMM probe head with CF20 probe
CZ10T-S

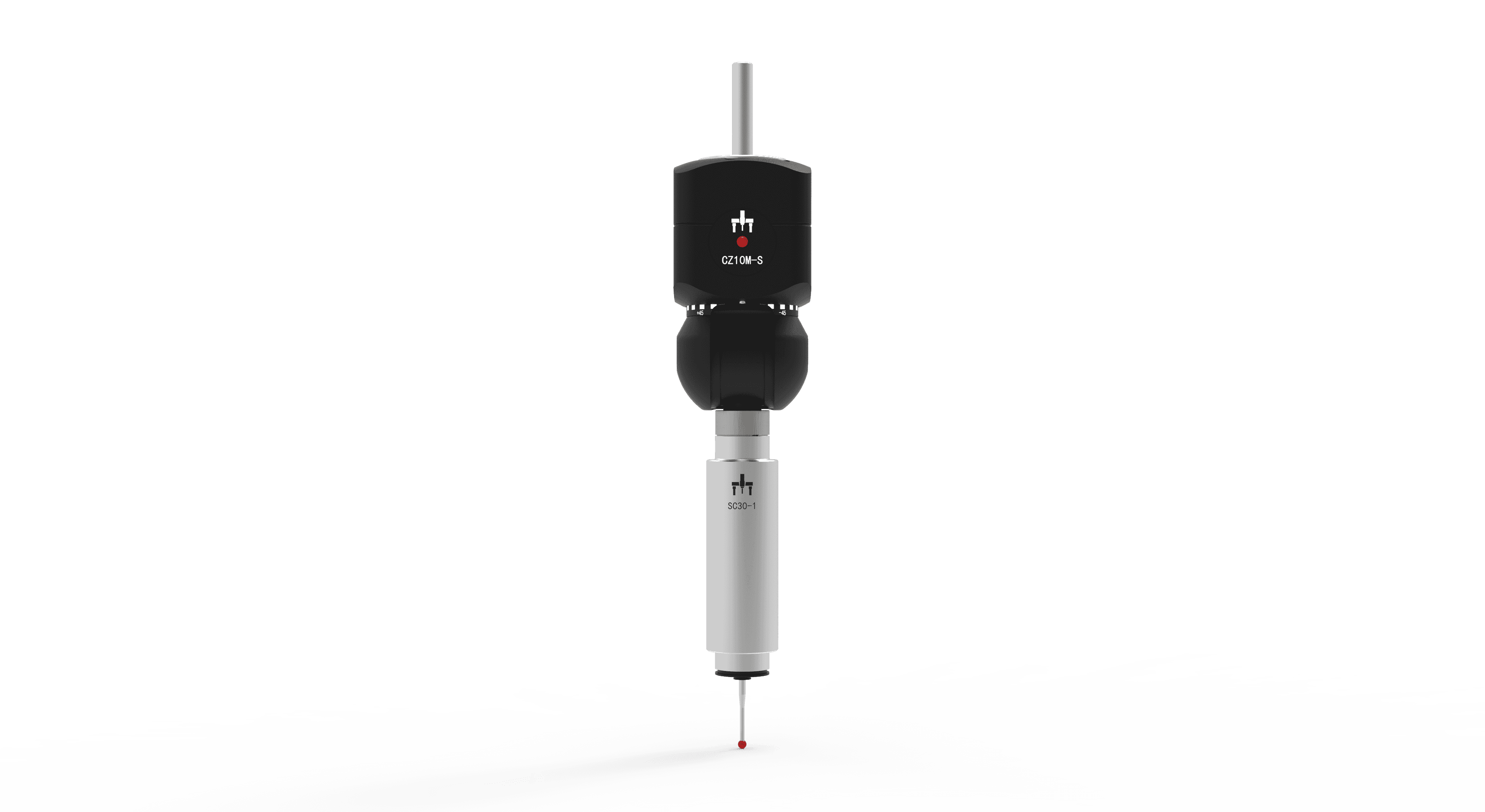

CZ10M-S automatic CMM probe head configured for scanning
CZ10M-S

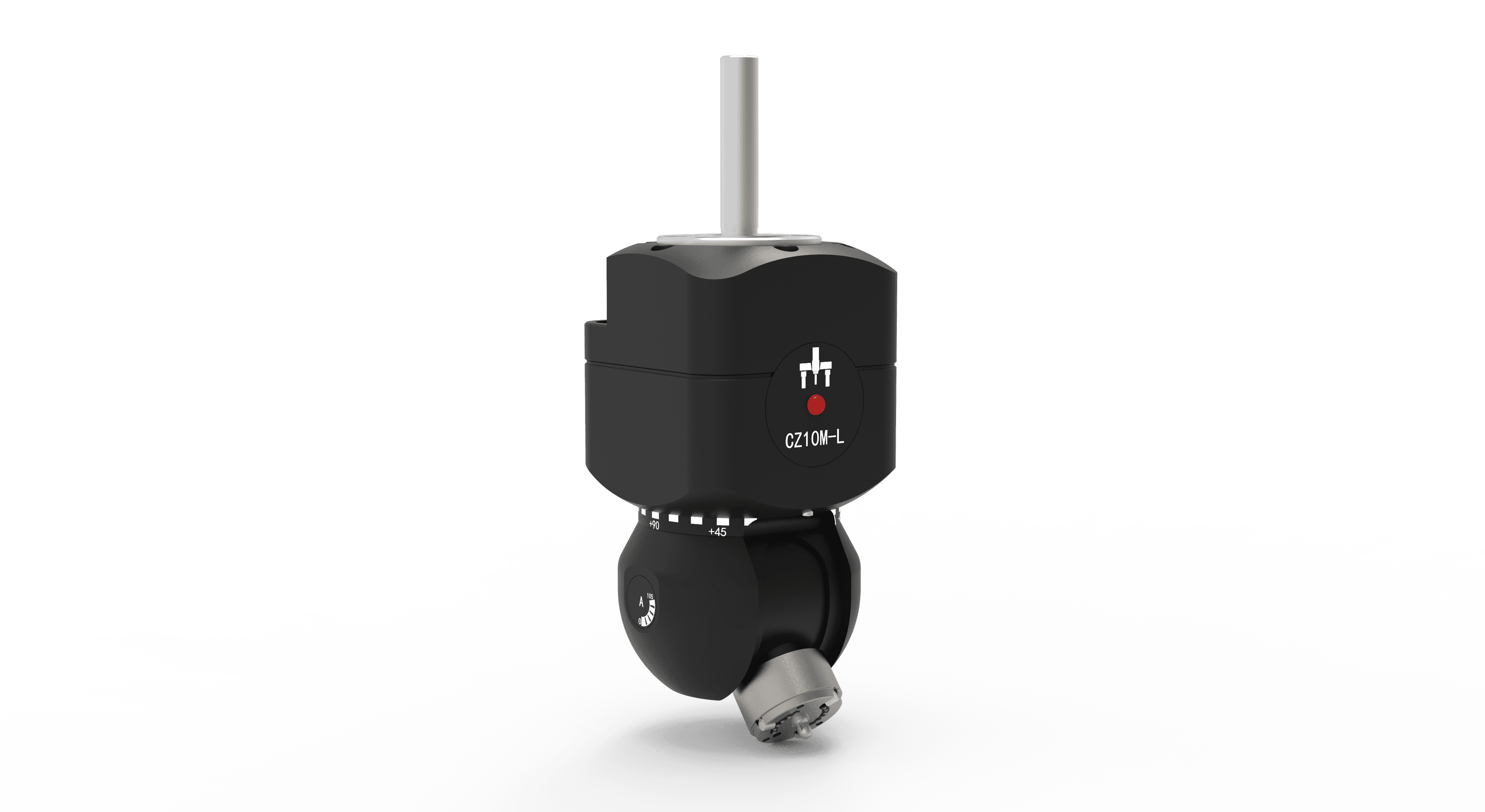

CZ10M-L heavy-duty automatic CMM probe head
CZ10M-L

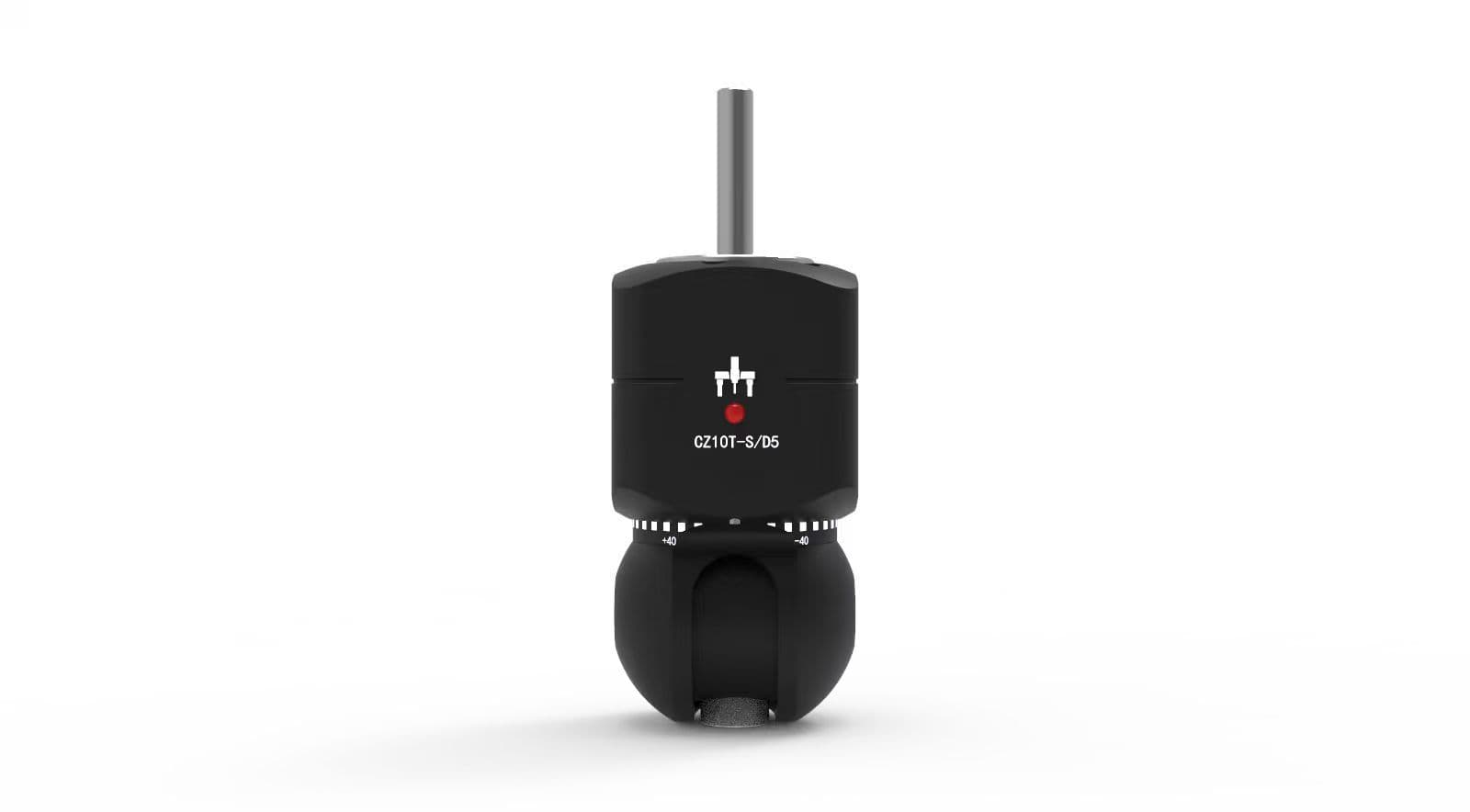

CZ10TD5 fully automatic rotary CMM probe head
CZ10TD5

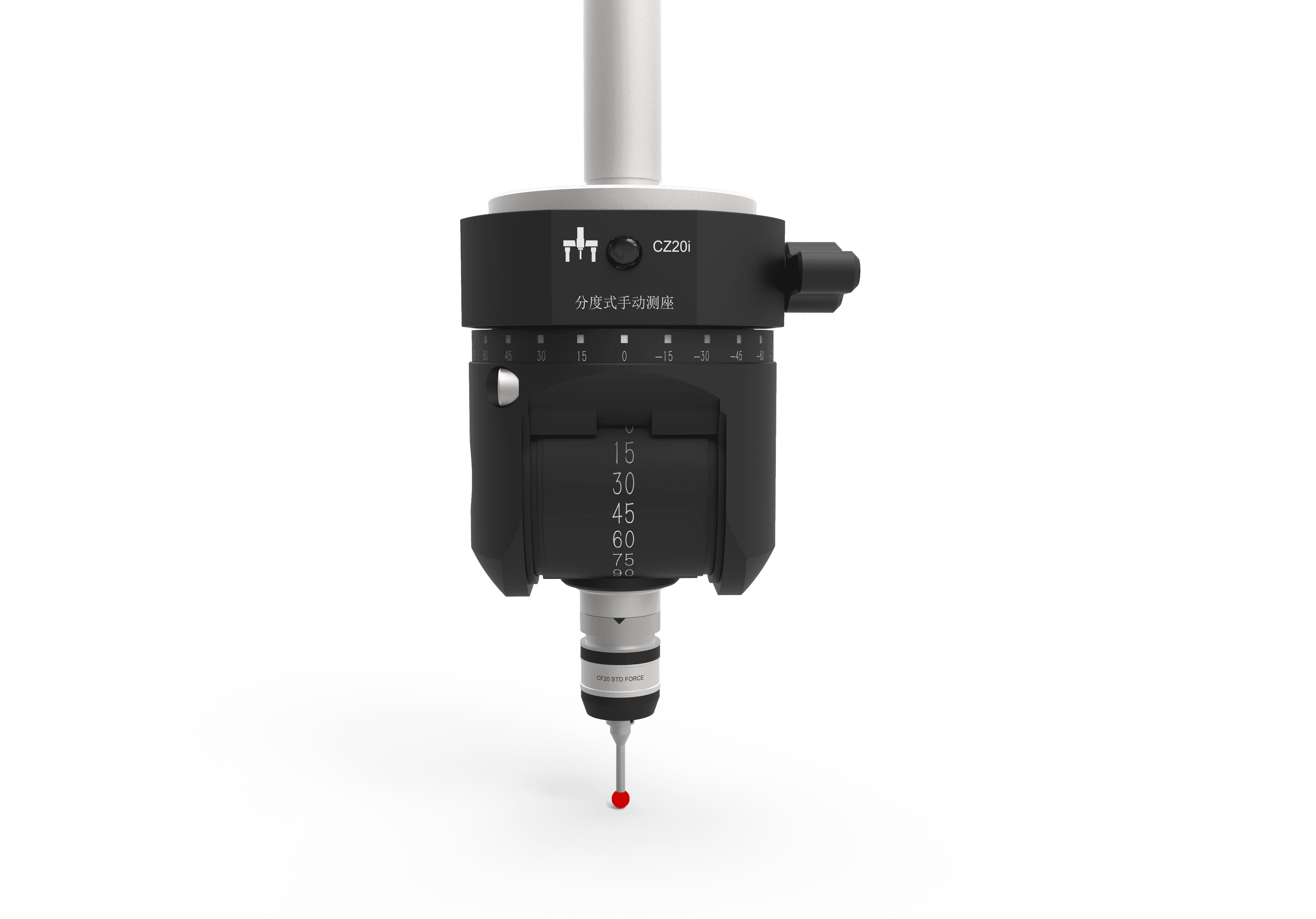

CZ20i semi-automatic indexing CMM probe head
CZ20i

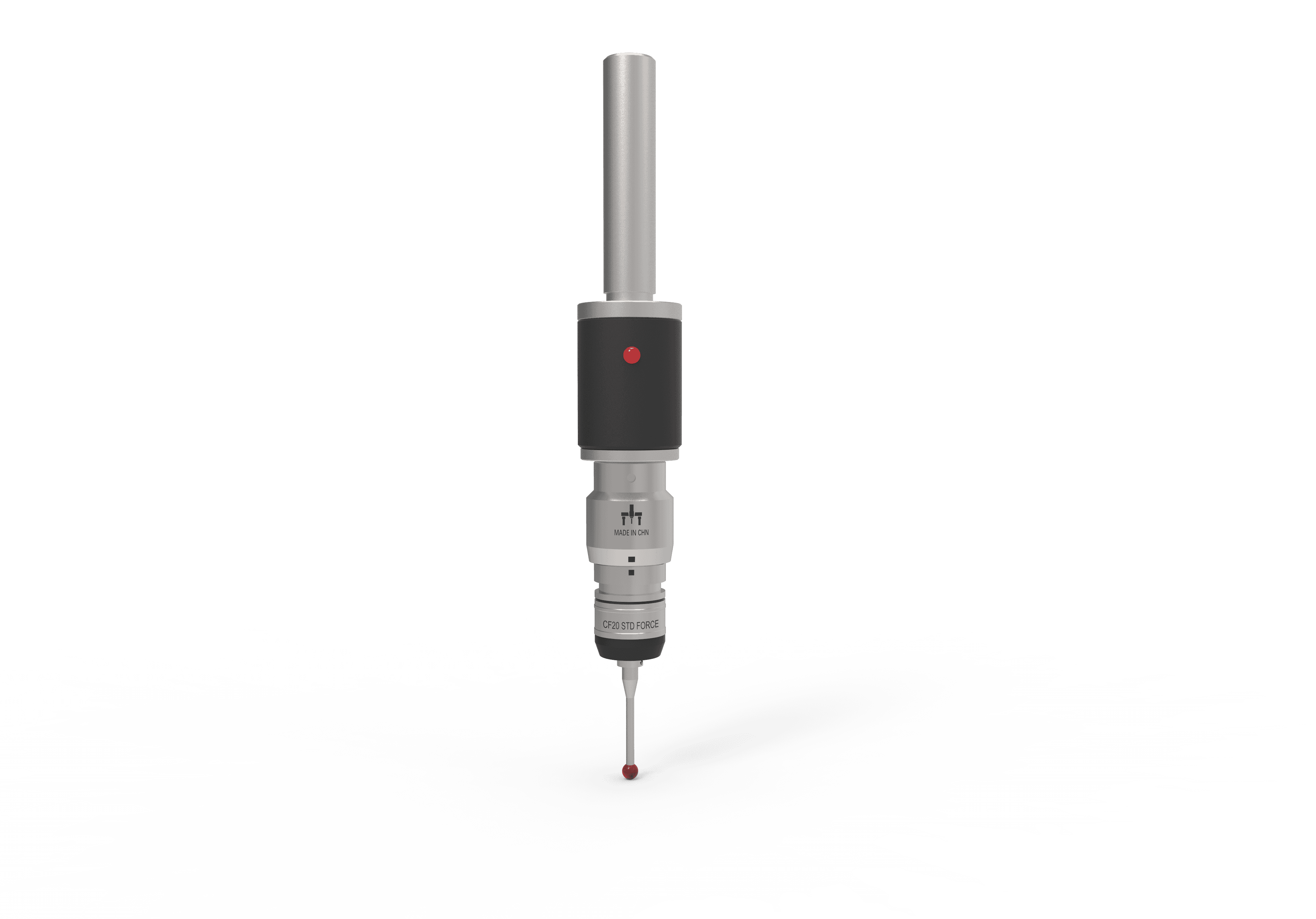

CZ6 fixed straight CMM probe head with CF20 probe
CZ6
6

Six configurations

Automatic, semi-automatic, and fixed

0.5µm

Down to 0.5 µm

Published positioning repeatability

1,584

Up to 1,584 positions

Fine 5° indexing on CZ10TD5

300mm

Up to 300 mm extension

Heavy-duty CZ10M-L configuration

Product Family

Choose the right probe head

Select by measurement mode, indexing resolution, torque, extension length, and the level of automation required by the application.

Touch TriggerCZ10T-S high-speed automatic CMM probe head with CF20 probe

CZ10T-S

High-Speed Indexing Automatic Probe Head

Fast, repeatable automatic indexing for high-throughput touch-trigger inspection on production CMMs.

Repeatability
0.5 µm (2σ)
Full cycle
2.2 s / 360°
Positions
720
Increment
7.5°
Drive torque
0.18 N·m
Max extension
100 mm
Compare CZ10T-S
Scanning ReadyCZ10M-S automatic CMM probe head configured for scanning

CZ10M-S

High-Speed Automatic Probe Head

One automatic indexing platform for touch-trigger single-point measurement and scanning applications.

Repeatability
0.5 µm (2σ)
Full cycle
2.2 s / 360°
Positions
720
Modes
Trigger + scan
Drive torque
0.18 N·m
Max extension
100 mm
Compare CZ10M-S
Heavy DutyCZ10M-L heavy-duty automatic CMM probe head

CZ10M-L

Heavy-Duty Automatic Probe Head

Higher drive torque and longer extension support for deep, obstructed, or demanding scanning setups.

Repeatability
0.5 µm (2σ)
Full cycle
2.8 s / 360°
Positions
720
Drive torque
0.55 N·m
Max extension
300 mm
Increment
7.5°
Compare CZ10M-L
Fine IndexingCZ10TD5 fully automatic rotary CMM probe head

CZ10TD5

Fully Automatic Rotary Probe Head

High-resolution orientation control for complex features requiring finer angular access and more indexed positions.

Repeatability
0.5 µm (2σ)
Positions
1,584
Increment
5°
A axis
0° to 105°
B axis
±180°
Compatible
CF20 / TP20 / TP200
Compare CZ10TD5
Semi-AutomaticCZ20i semi-automatic indexing CMM probe head

CZ20i

Semi-Automatic Indexing Probe Head

Compact, cost-effective pitch and yaw positioning for angled and recessed features without full motorization.

Repeatability
1.5 µm (2σ)
Positions
168
Increment
15°
A axis
0° to 90°
B axis
±180°
Weight
300 g
Compare CZ20i
Fixed StraightCZ6 fixed straight CMM probe head with CF20 probe

CZ6

Fixed Straight Probe Head

A compact M8 fixed-head installation with built-in cable and LED status indication for basic probing applications.

Probe interface
M8 thread
Weight
50 g
Positions
1 fixed
Status
1 LED
Connection
Built-in cable
Installation
Shank mounted
Compare CZ6

Technical Comparison

Probe-head selection table

A single view of the key published specifications for the complete probe-head family.

ModelBest fitMeasurement modePositionsIndexingRepeatabilityExtension / torque
CZ10T-SFast general-purpose automatic indexingTouch trigger7207.5°0.5 µm (2σ)100 mm / 0.18 N·m
CZ10M-SFlexible trigger and scanning platformTouch trigger + scanning7207.5°0.5 µm (2σ)100 mm / 0.18 N·m
CZ10M-LLong extensions and higher load demandScanning ready7207.5°0.5 µm (2σ)300 mm / 0.55 N·m
CZ10TD5Complex features and fine orientationTouch trigger1,5845°0.5 µm (2σ)Up to 100 mm
CZ20iCost-effective semi-automatic accessManual indexing16815°1.5 µm (2σ)300 g head weight
CZ6Basic fixed straight installationFixed touch trigger1Fixed—50 g / M8

Published values are shown for product-page comparison. Final interface compatibility, permissible load, extension-bar part number, and complete system performance should be confirmed in quotation and configuration documentation.
