Fast motion-control and measurement-data processing
Integrated CMM Drive-and-Control Platform
MACC Series
Motion Control for Your CMM System
Integrated Drive-and-Control Platform for CMMs

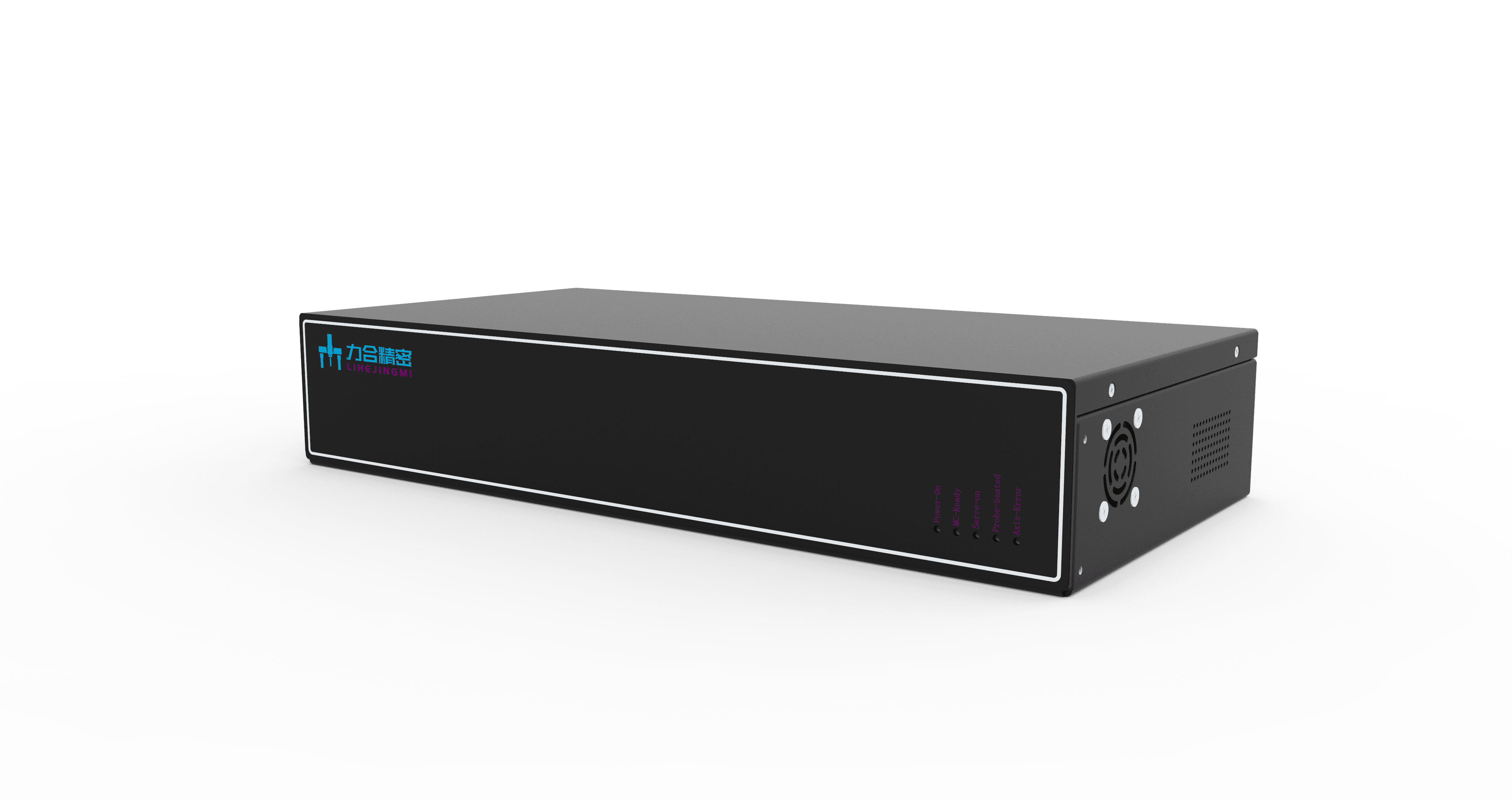

The MACC Series combines motion control, motor drives and probe-head interfaces in a compact chassis. Designed for stable performance and straightforward integration, it supports trigger measurement and, on PLUS models, scanning measurement across a wide range of CMM applications.
Motor drives and controller functions in one chassis
A compact architecture with fewer external interconnections
Open integration with compatible measurement software
Match control to the machine and probing task
Compare the controller models, review the required probing interfaces, and check the existing machine details before planning integration.
Product Range
Model Comparison
| Function / Specification | MACC3000 | MACC5000 | MACC3000 PLUS | MACC5000 PLUS |
|---|---|---|---|---|
| Integrated drive axes | 3 | 5 | 3 | 5 |
| CF20 trigger-probe interface | Supported | Supported | Supported | Supported |
| SC80 scanning-probe interface | Not supported | Not supported | Supported | Supported |
| SC30 / SP25 scanning interface | Not supported | Not supported | Supported | Supported |
| CZ10 automatic probe-head interface | Supported | Supported | Supported | Supported |
| Chassis weight | 3.4 kg | 3.6 kg | 3.6 kg | 3.6 kg |
✓ Supported – Not supported
System Value
Key Benefits
Integrated drive and control reduces system complexity
High-speed, high-precision motion-control platform
PLUS models support scanning with SC30, SC80 and SP25
Open integration through SDK and international-standard I++ DME
Guided setup wizard supports faster system configuration
Reliability-focused hardware production and environmental testing
Measurement software
Work with your preferred metrology software.
Two integration paths for PeakMerit CMM systems and MACC controller packages.
I++ Server integration
Connect your choice of measurement software through IPPServer.
CMM-Manager
PC-DMIS
PolyWorks
Metrolog X4
Measurement software IPPServer MACC
Direct connection
TouchDMIS
TouchDMIS connects directly to MACC without an I++ Server layer. The connection uses the PeakMerit SDK.
TouchDMIS MACC
Compatibility depends on software version, interface licensing, and the selected machine and probing configuration.
Developed In-House for the MACC Platform
One Software Stack from Commissioning to Measurement
PeakMerit-developed IPPServer and MACC Tuning Software give machine builders, integrators and service teams direct tools for setup, tuning, software integration and lifecycle support.Measurement Software Integration
IPPServer
The in-house I++ server layer connects the MACC controller with compatible measurement software while keeping commands, results and alarms visible to operators and service teams.
Common I++ Software Examples
CMM-ManagerPC-DMISPolyWorksMetrolog X4
Compatibility depends on software version, interface licensing, and the selected machine and probing configuration.- I++ 1.7 communication for measurement software integration
- Detailed logs of commands, execution results, returned data and alarms
- Probe activation, calibration, naming and indexed-head angle management
- Reference-sphere positioning and guided probe-system setup
Commissioning, Diagnostics & Service
MACC Tuning Software
The in-house tuning environment makes commissioning straightforward with a guided, easy-to-use workflow and built-in auto tuning, while keeping live data, tests and maintenance tools close at hand.
Simplified Commissioning
Easy to UseGuided SetupAuto Tuning
Auto tuning accelerates initial setup, while live curves and manual adjustment keep engineers in control.- Step-by-step setup wizard for machine, axis, measurement and operator-control parameters
- Built-in auto tuning with graphical current-, speed- and position-loop verification
- I/O, homing, soft-limit, hand-controller, motion-cycle and automatic-head testing
- 16-channel temperature monitoring, compensation-data handling and controller parameter tools
- 01
Configure
Machine type, axes, scales, probe system and safe travel
- 02
Tune
Current, speed and position loops with live response curves
- 03
Integrate
Connect TouchDMIS through the SDK, or compatible measurement software through I++
- 04
Maintain
Review alarms, run tests, monitor temperature and manage parameters
Software functions and delivered version are matched to the selected controller, probe system and CMM configuration. PeakMerit confirms the applicable package during project configuration.
Common Across the Series
Shared Specifications
| Item | Specification |
|---|---|
| Input power supply | 24-72 VDC, 15 A max |
| Input control power supply | 24 VDC ±2 V, 2 A max |
| Measurement software interface | SDK / I++ DME |
| PC communication interface | Ethernet |
| CF20 trigger-probe interface | Supported on all models |
| CZ10 automatic probe-head interface | Supported on all models |
| Temperature-sensor inputs | 16 channels |
| Chassis dimensions (W × D × H) | 453 × 224 × 83 mm |
| Compatible accessory | IMO handheld controller |
Connection Reference

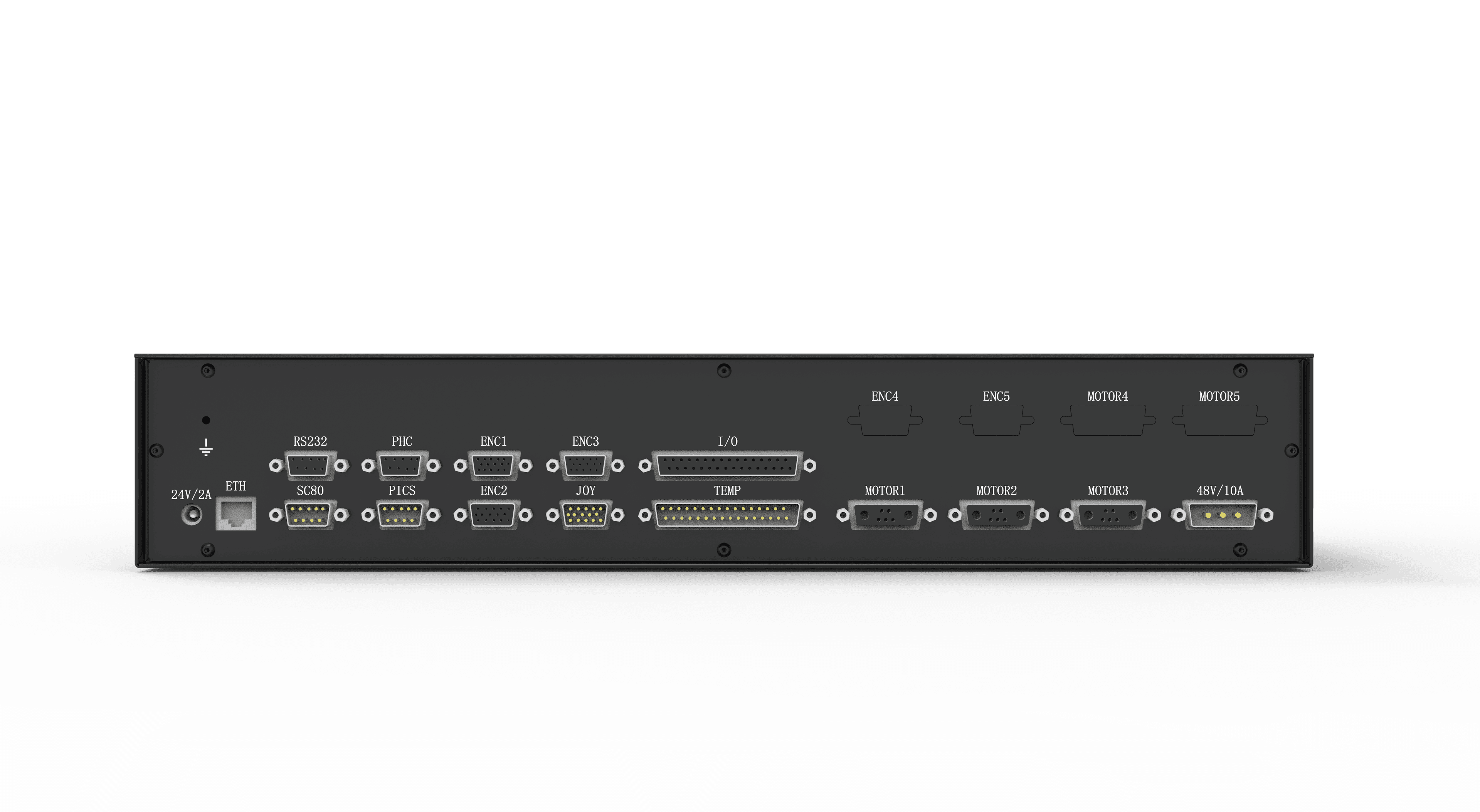

Rear Panel Interfaces
Power & Communications
- 24V/2A
- Control power input
- ETH
- Ethernet
- RS232
- Serial communication
- 48V/10A
- Drive power input
Probe & Operator Interfaces
- PHC
- Probe-head control
- SC80
- Scanning-probe interface
- PICS
- Probe interface
- JOY
- Joystick interface
Encoder & Motion Channels
- ENC1-ENC5
- Encoder inputs
- MOTOR1-MOTOR5
- Motor outputs
- TEMP
- Temperature sensors
- I/O
- General I/O interface
Connector layout and power input may differ by revision; confirm the exact hardware version and interface definition with PeakMerit before use.
