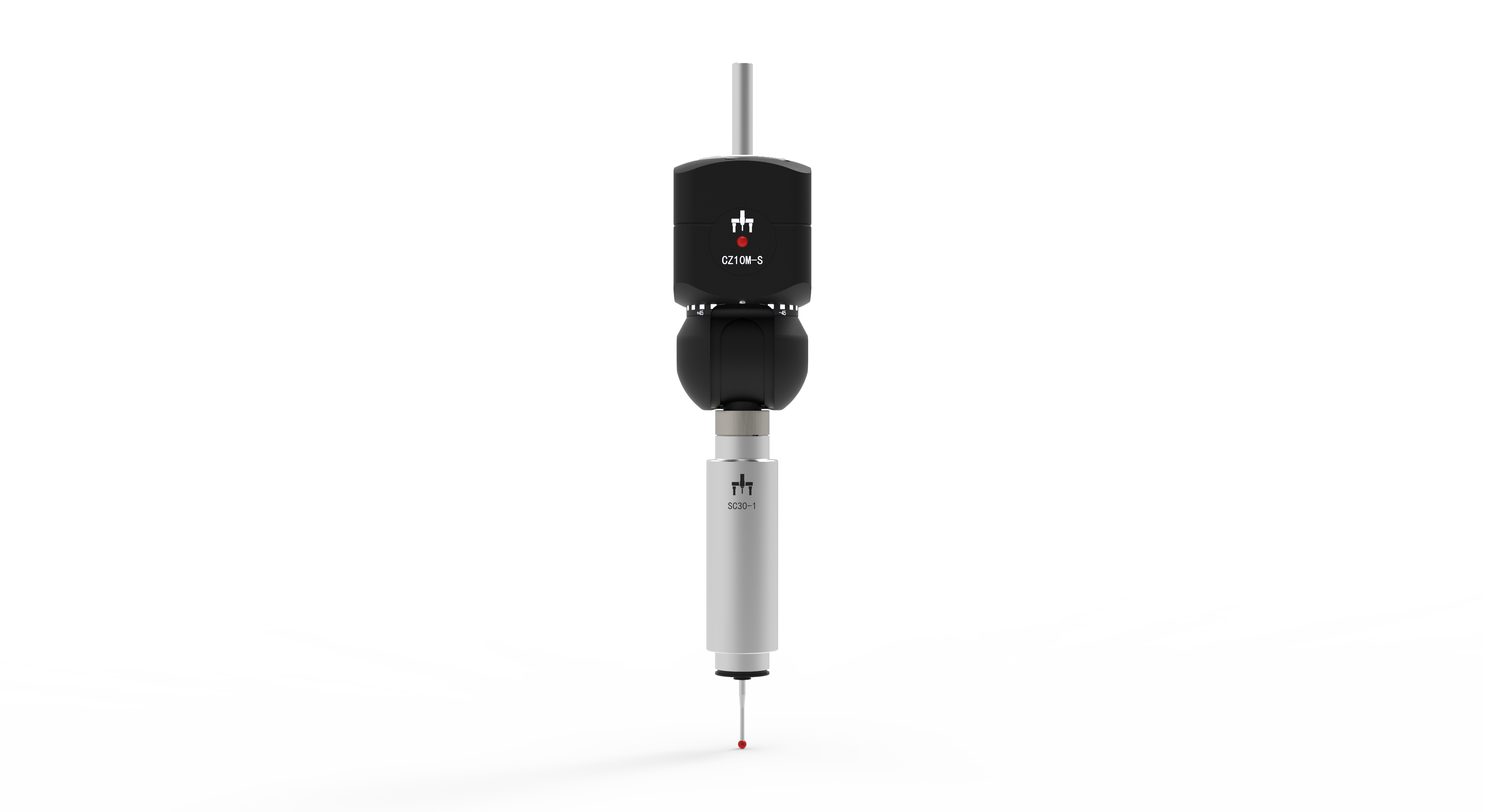

Best scanning configuration
ScanningPolaris 686
MPEe1.4+L/300 µmMPEp1.7 µm
Classic Bridge CMM
Polaris Classic Bridge CMM
Best-value classic bridge CMM for machine shops and manufacturing quality control.
PositioningClassic value bridge CMM
Work volume
X600–2000 mm
Y800–3000 mm
Z600–1500 mm
Axis combinations vary by model.Load500–3000 kg
Best accuracy
Scanning
MPEe1.4+L/300 µmMPEp1.7 µm
Best Available Accuracy
Polaris Configuration Reference
Accuracy varies by model size, probe configuration, and acceptance conditions.

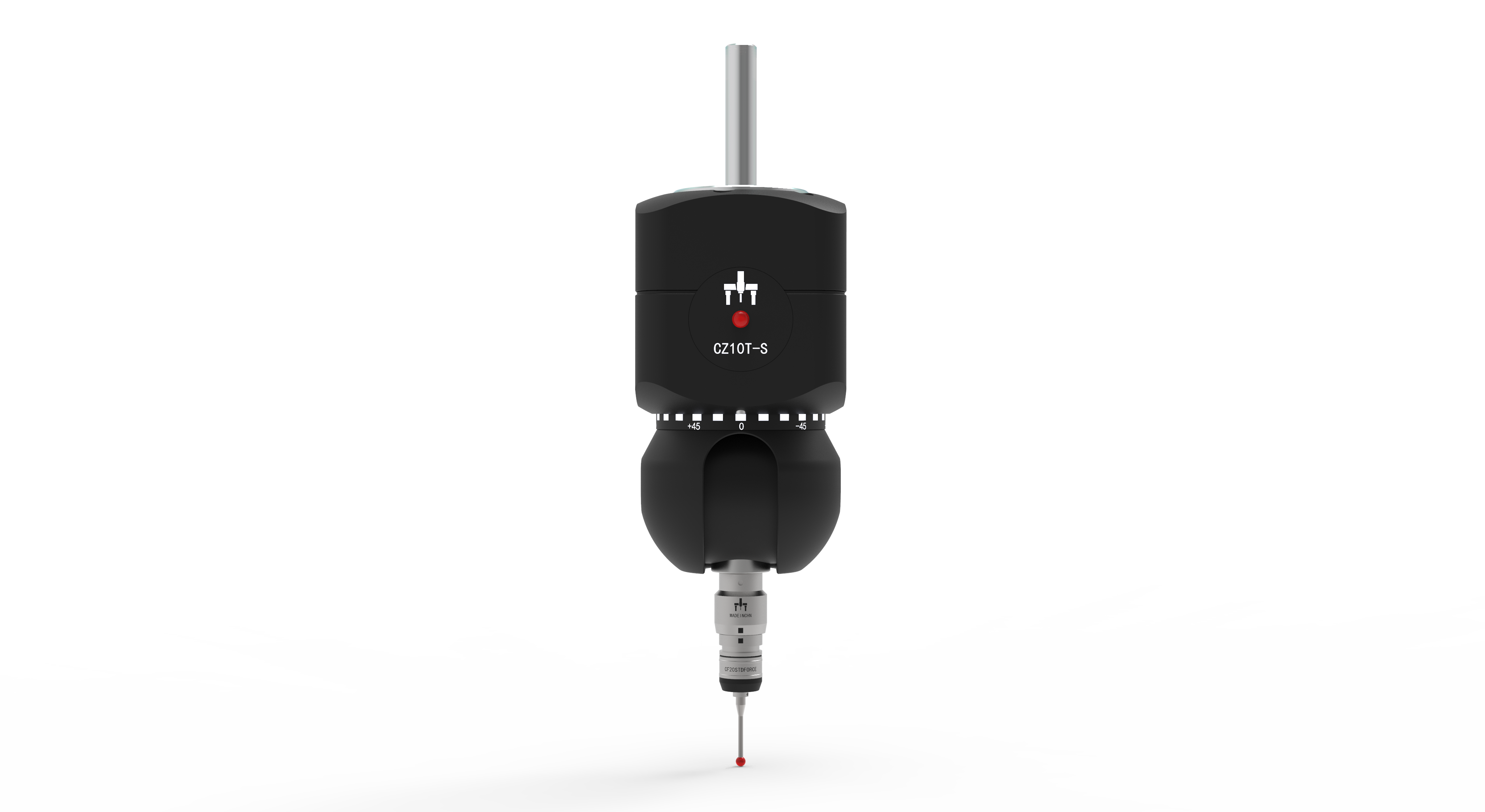

Best touch-trigger configuration
Touch-triggerPolaris 686
MPEe2.2+L/300 µmMPEp2.5 µm
Model Range
Polaris Travel and Accuracy Options
Swipe left or right to see all specifications. Keyboard: focus the table and use the arrow keys.
| Model | Range | Dimension | Machine weight | Max speed | Max acceleration | Load | Scanning MPEe | Scanning MPEp | MPEThp/t | Touch-trigger MPEe | Touch-trigger MPEp |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Polaris 686 | 600×800×600 mm | 1200×1600×2700 mm | 1350 kg | 700 mm/s | 1000 mm/s² | 500 kg | 1.4+L/300 µm | 1.7 µm | 2.2/90 | 2.2+L/300 µm | 2.5 µm |
| Polaris 8106 | 800×1000×600 mm | 1400×1800×2700 mm | 1800 kg | 700 mm/s | 1000 mm/s² | 800 kg | 1.6+L/300 µm | 1.8 µm | 2.4/90 | 2.5+L/300 µm | 2.8 µm |
| Polaris 8126 | 800×1200×600 mm | 1400×2000×2700 mm | 2100 kg | 700 mm/s | 1000 mm/s² | 800 kg | 1.6+L/300 µm | 1.8 µm | 2.4/90 | 2.5+L/300 µm | 2.8 µm |
| Polaris 8156 | 800×1500×600 mm | 1400×2300×2700 mm | 2400 kg | 700 mm/s | 1000 mm/s² | 1200 kg | 1.6+L/300 µm | 1.8 µm | 2.4/90 | 2.5+L/300 µm | 2.8 µm |
| Polaris 10128 | 1000×1200×800 mm | 1810×2600×3200 mm | 3500 kg | 500 mm/s | 700 mm/s² | 1200 kg | 1.8+L/300 µm | 2.1 µm | 2.5/90 | 2.5+L/300 µm | 2.8 µm |
| Polaris 10158 | 1000×1500×800 mm | 1810×2900×3200 mm | 3950 kg | 500 mm/s | 700 mm/s² | 1500 kg | 1.8+L/300 µm | 2.1 µm | 2.5/90 | 2.5+L/300 µm | 2.8 µm |
| Polaris 102010 | 1000×2000×1000 mm | 1810×3400×3600 mm | 4700 kg | 500 mm/s | 700 mm/s² | 1500 kg | 2.1+L/300 µm | 2.4 µm | 2.8/90 | 2.8+L/300 µm | 3.3 µm |
| Polaris 121510 | 1200×1500×1000 mm | 2010×2900×3600 mm | 4500 kg | 500 mm/s | 700 mm/s² | 1500 kg | 2.1+L/300 µm | 2.4 µm | 2.8/90 | 2.8+L/300 µm | 3.3 µm |
| Polaris 122010 | 1200×2000×1000 mm | 2010×3400×3600 mm | 5300 kg | 500 mm/s | 700 mm/s² | 2000 kg | 2.1+L/300 µm | 2.4 µm | 2.8/90 | 2.8+L/300 µm | 3.3 µm |
| Polaris 152010 | 1500×2000×1000 mm | 2310×3400×3600 mm | 6050 kg | 500 mm/s | 700 mm/s² | 2000 kg | 2.5+L/300 µm | 2.8 µm | 3.0/90 | 3.2+L/300 µm | 3.8 µm |
| Polaris 152510 | 1500×2500×1000 mm | 2310×3900×3600 mm | 7000 kg | 500 mm/s | 700 mm/s² | 2500 kg | 2.5+L/300 µm | 2.8 µm | 3.0/90 | 3.2+L/300 µm | 3.8 µm |
| Polaris 153012 | 1500×3000×1200 mm | 2480×4500×4120 mm | 9000 kg | 400 mm/s | 700 mm/s² | 3000 kg | 2.8+L/300 µm | 3.1 µm | 3.5/90 | 3.5+L/300 µm | 4 µm |
| Polaris 203015 | 2000×3000×1500 mm | 2980×4500×4720 mm | 12000 kg | 400 mm/s | 700 mm/s² | 3000 kg | 3.2+L/300 µm | 3.6 µm | 4.5/90 | 4.0+L/300 µm | 5 µm |
Best-Fit Applications
Where Polaris Fits Best
Polaris is the general manufacturing bridge CMM choice when part sizes, load requirements, and inspection variety exceed entry-level systems but do not require Gemini or Libra.
CNC machined parts
Use Polaris for general manufacturing QC across machine shops, fixtures, castings, and automotive components.
Automotive Powertrain components
A broad bridge CMM platform when part sizes vary and the project needs value-focused scanning or touch-trigger options.
Fixtures and tooling
Best when a controlled quality room is available and the tolerance target does not require Gemini or Libra.

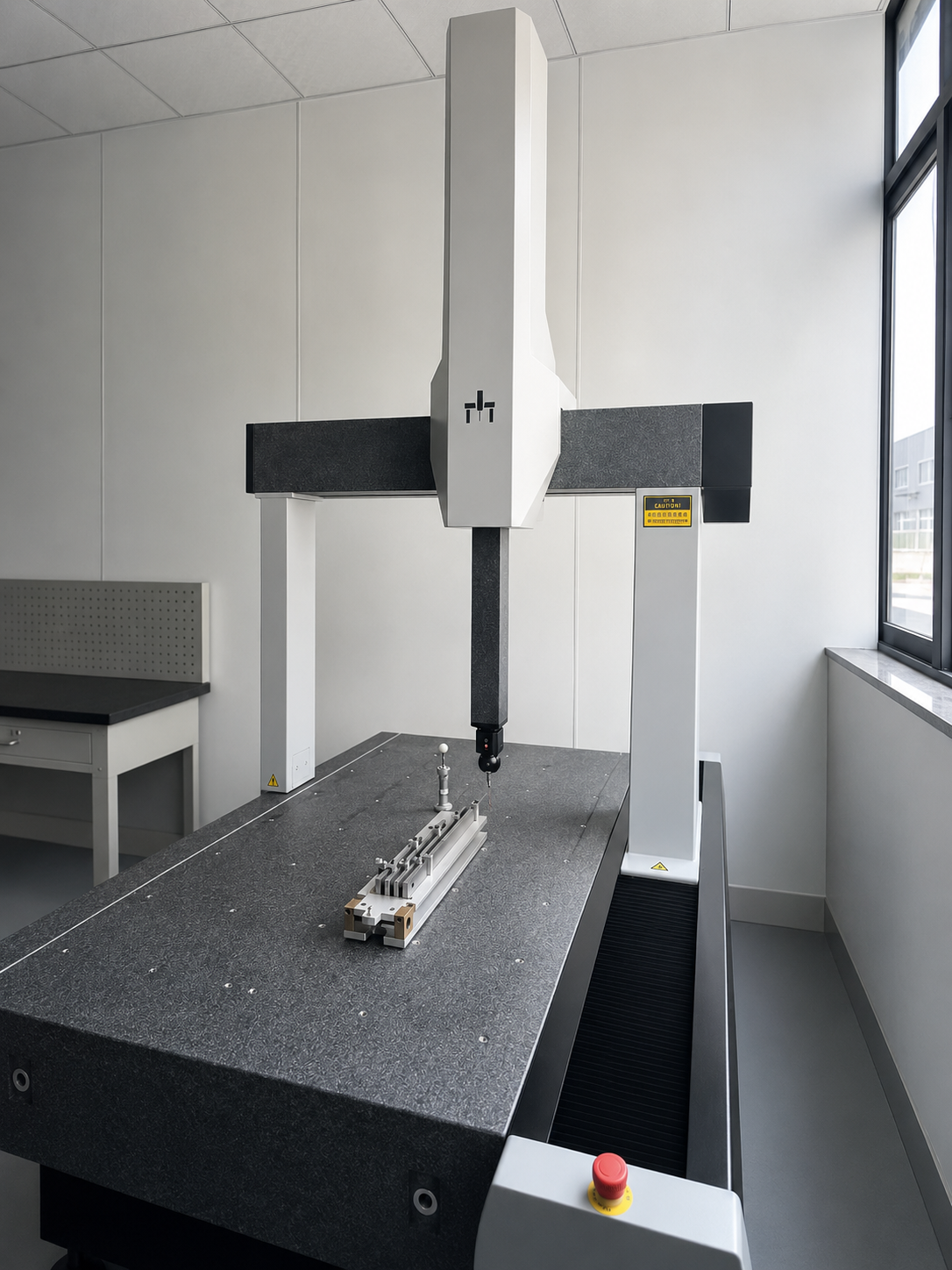

Medium-Size Motor Housing Inspection
- TRAVEL
- 800 × 1200 × 600 mm
- STRUCTURE
- Production bridge CMM
- PART
- Motor / gearbox housing
- ACCURACY
- MPEe 2.5 + L/300 µm
1Customer Scenario
Production machining inspection for aluminum housings with bearing bores, sealing faces, bolt-hole patterns and side features.
2Why This Machine
More measuring capacity than a compact CMM while still fitting into a standard quality room for daily production QC.
3System Configuration
Bridge CMM with motorized probe head, touch-trigger probe and optional scanning package for profile or sealing surfaces.
4Measurement Problem Solved
Verification of bore location, true position, flatness, parallelism, perpendicularity and relationships between machined datums.
Similar applications
EV motor housings, gearbox housings, pump bodies, aluminum castings, fixtures and batch inspection work.
Structure & motion
Engineering Highlights
Polaris Structure and Motion Package
Polaris balances bridge rigidity, usable travel, load capacity, and value for machine shops and manufacturing QC departments.
Classic Moving-Bridge Platform
A standard bridge CMM structure suited for general manufacturing inspection and quality control.
Modular High-Rigidity Design
A modular structure balances rigidity, weight, and measurement performance.
All-Granite Bridge Structure
Full granite bridge structure supports stiffness and stable inspection workflows for routine manufacturing QC.
Linear Temperature Sensors
Three-axis temperature sensors support more complex inspection environments.
Environment & site requirements
Site Requirements
Confirm Environment Before Quotation
PeakMerit reviews installation conditions, model-specific load capacity, air, power, and acceptance needs before final quotation.
Load capacity
Model-specific. See model table. Family range: 500–3000 kg.
Temperature
18–22°C
Thermal stability
1°C/h; 2°C/24 h; spatial gradient 1°C/m
Humidity
40–70%
Voltage / Current
220 V ±10%; 15 A
Air Supply
6 bar / 0.6 MPa; 120 NL/min
Controller, probe & software options
Configured System Options
Controller, Probe, and Application Package
Select the machine family together with the controller, probe head, rack, joystick, software workflow, and acceptance requirements that fit the application.

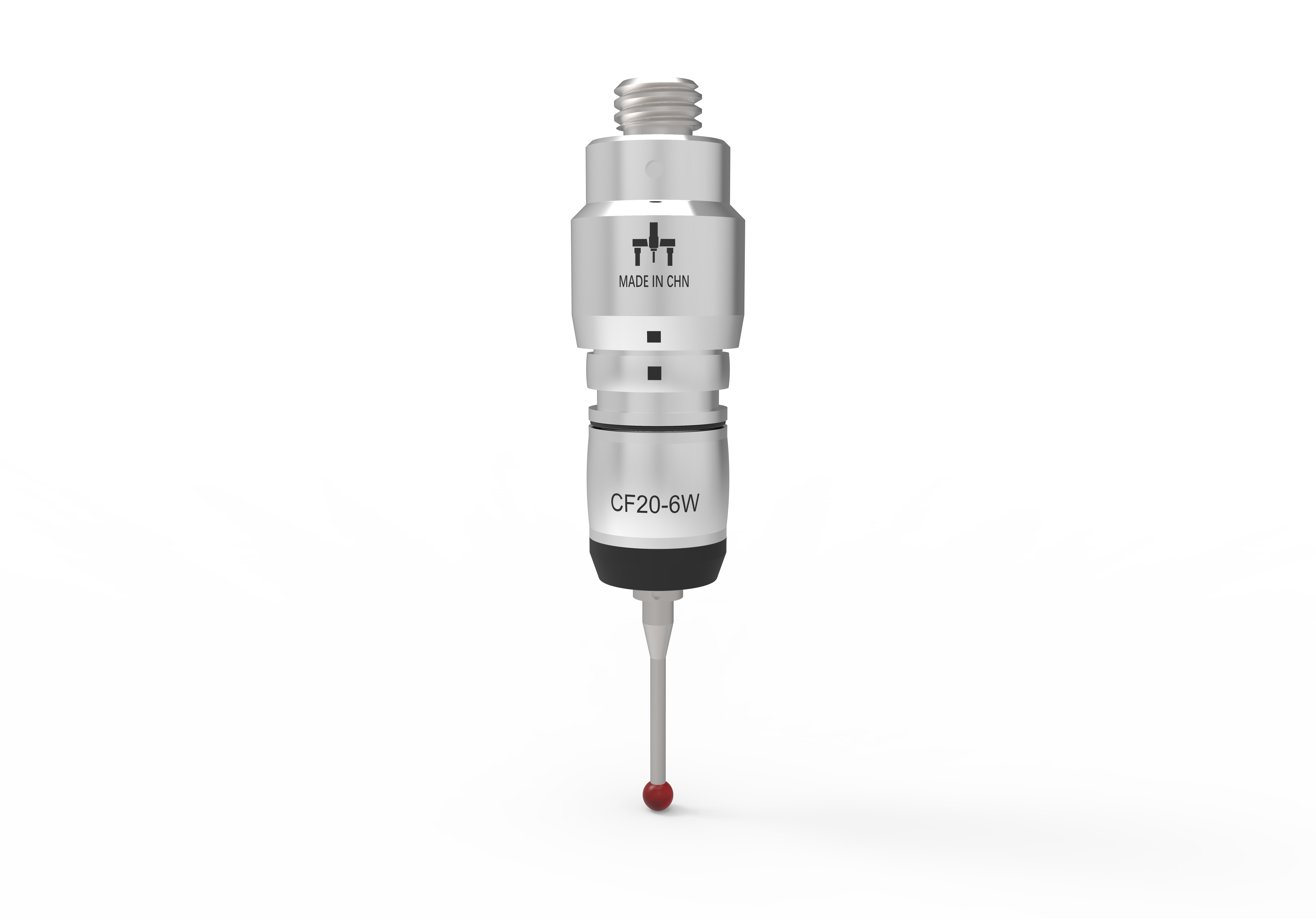

Touch-trigger package
For general manufacturing dimensional inspection.
View CF20 SeriesAsk before quoting
- Feature type
- Tolerance target
- Stylus length
SC30 scanning package
For profile, contour, and denser surface data where compatible with the selected configuration.
View SC30 Scanning ProbesAsk before quoting
- Scanning features
- Software workflow
- Machine compatibility

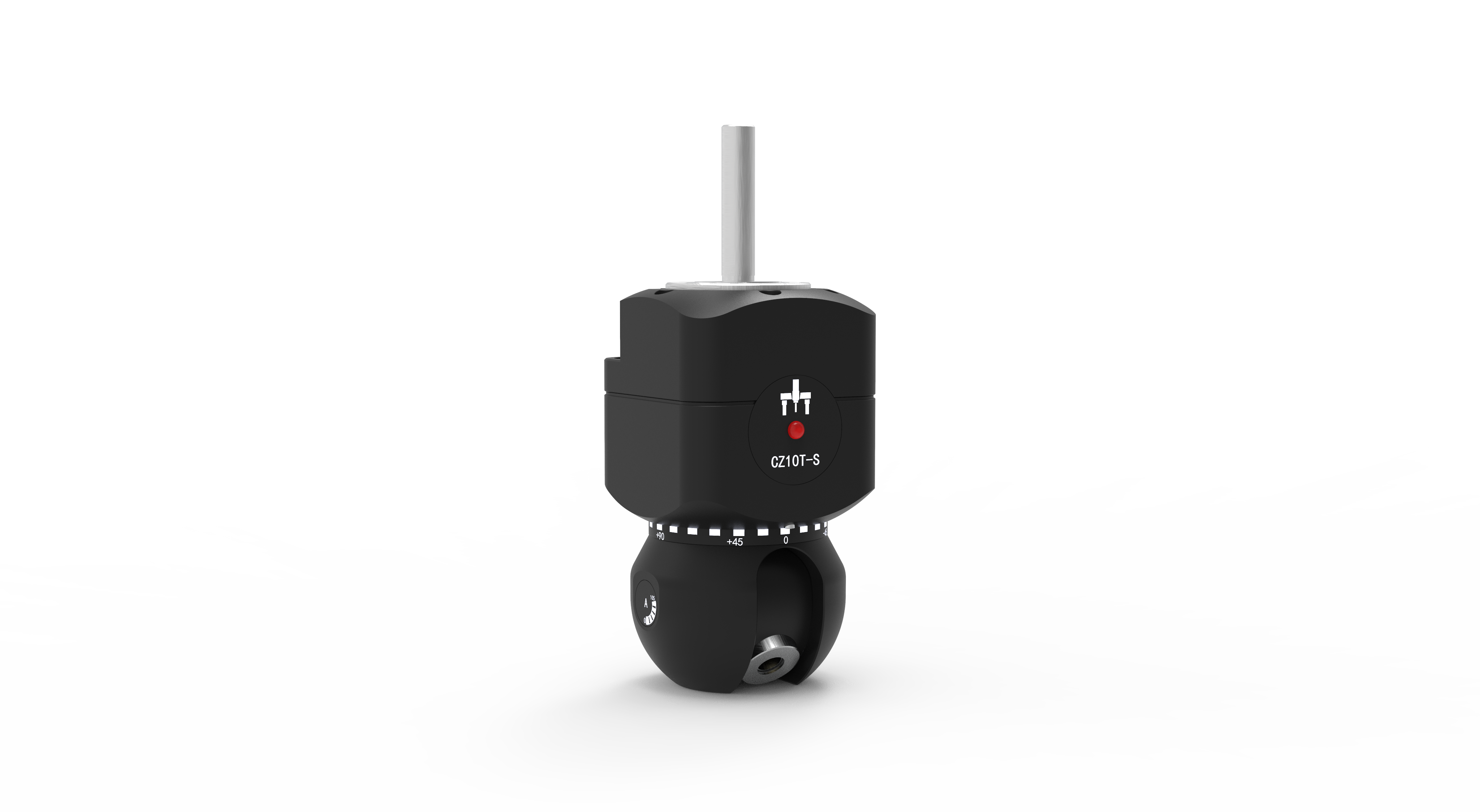

Motorized probe head package
For multi-angle access and automated routines.
View CZ10T-S Probe HeadAsk before quoting
- Required probe angles
- Part access
- Automation level

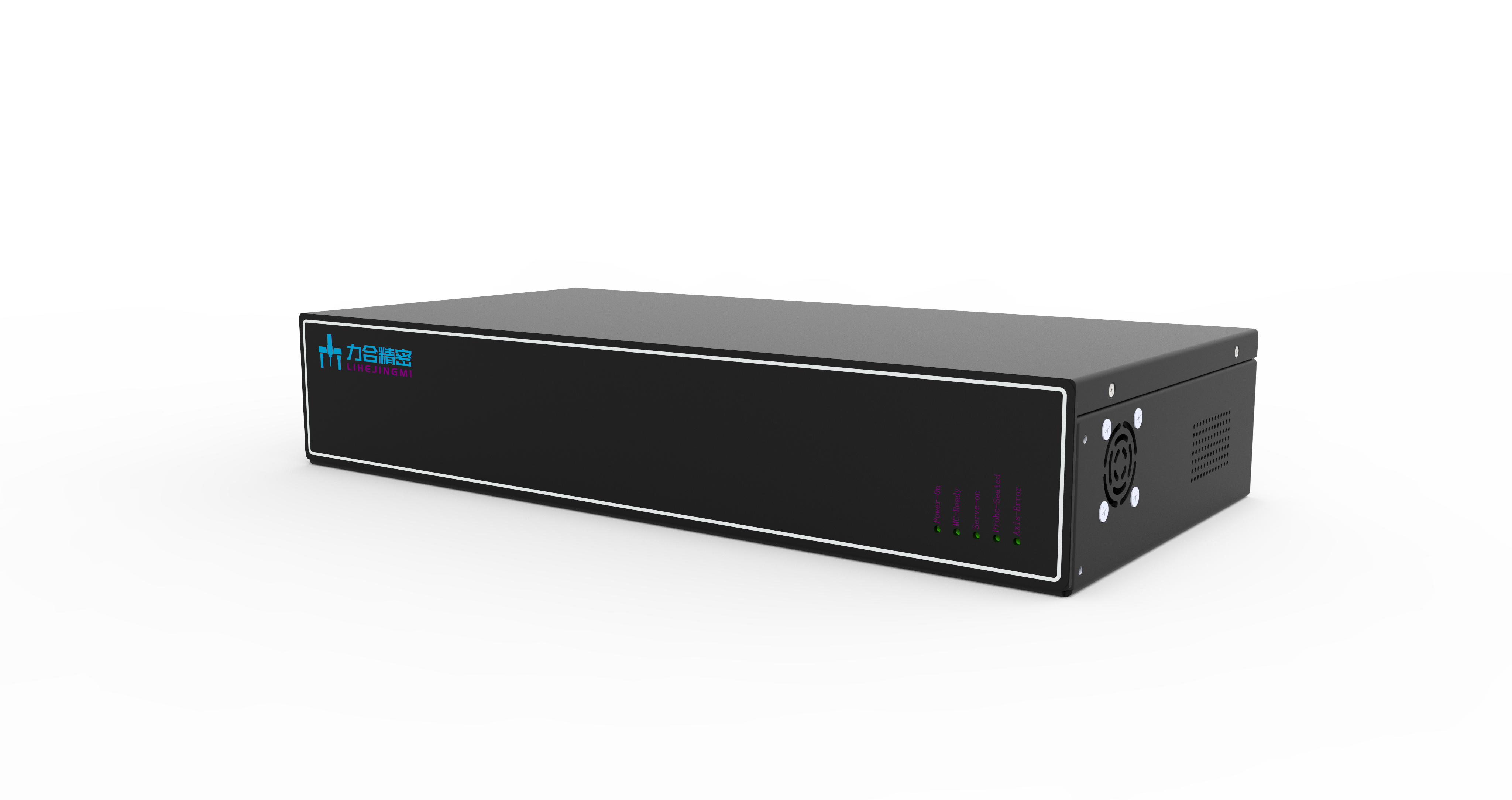

Controller, joystick, and rack package
For complete system configuration or replacement planning.
View MACC ControllersAsk before quoting
- Controller scope
- Joystick need
- Rack requirement
Selection Boundaries
Not Ideal For
- Ultra-high-precision lab applications better suited to Libra
- Small budget-sensitive projects where Pisces is sufficient
- Shop-floor near-line workflows where Aries is more appropriate
- Oversized parts requiring Taurus gantry travel
Nearby Choices
Compare With Nearby Models
Pisces
Pisces for entry-level automated inspection and lower capital cost.
View PiscesGemini
Gemini for tighter bridge CMM accuracy and scanning-oriented applications.
View GeminiTaurus
Taurus for parts too large for bridge CMM travel.
View TaurusCONTINUE YOUR REVIEW
Explore related resources and next steps.
Compare CMM families
Check other platforms before settling on travel and configuration.
Understand CMM accuracy
Read the specification terms alongside the model and operating conditions.
Touch-trigger or scanning?
Choose the measurement method around features and inspection needs.
See project updates
Explore published CMM setups and field activity.
Ready to Configure This CMM?
Send your part size, tolerance requirement, inspection environment, and preferred probing method. PeakMerit will recommend a suitable model and configuration for quotation.
