CF20 Module Exchange

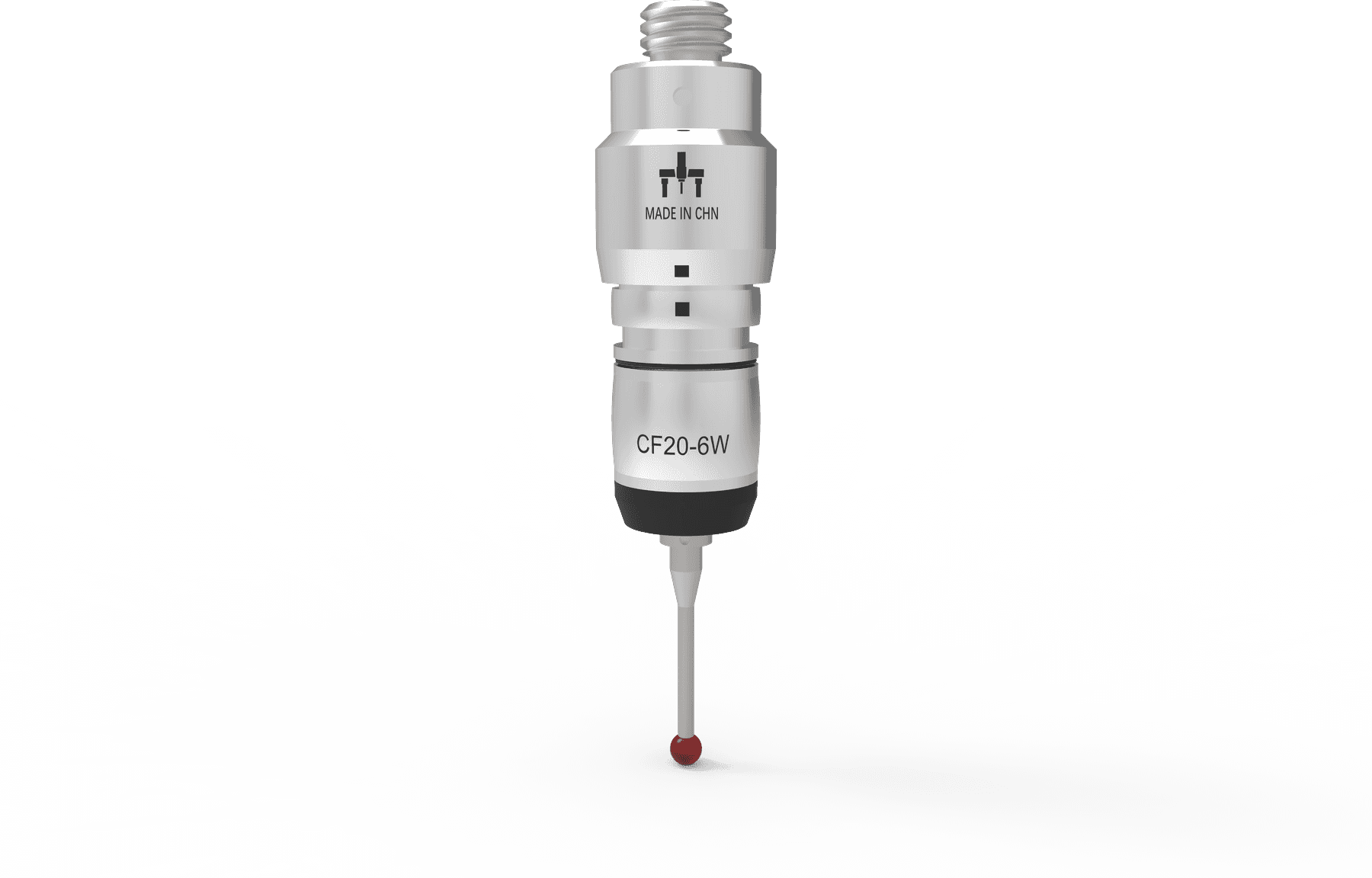

Automatic changing for up to six CF20 probe modules in a programmed measurement sequence.
- Six CF20 module ports
- Program-controlled automatic exchange
- Supports continuous multi-probe measurement
Complete CMM Accessories
Calibration, Fixturing
& Automated
Operation
Build a complete measurement workflow with G5 calibration spheres, LHCR automatic changing racks, modular CMM fixturing, and IMO operator pendants.
Probe QualificationAutomated ExchangeModular WorkholdingOperator Control
Accessory Family
Calibration Sphere
Changing Racks
Universal Fixturing
Wired Operator Pendants
Complete Accessories
Accessories for the Complete Measurement Workflow
Select the accessory around the CMM, probing system, workholding requirement, and measurement program instead of treating it as a stand-alone item.
Accessory Category
G5 Calibration Sphere
A calibrated reference for qualifying probe and stylus configurations before measurement.
View detailsAccessory Category
LHCR20 / LHCR25
Program-controlled module storage and exchange for automated inspection cycles.
View detailsAccessory Category
Universal Fixturing
A modular workholding system for parts with varied sizes, shapes, and materials.
View detailsAccessory Category
IMO Wired Operator Pendants
Direct axis, servo, speed, probe, and point-control functions at the machine.
View detailsG5 Calibration Reference
Calibration & Qualification

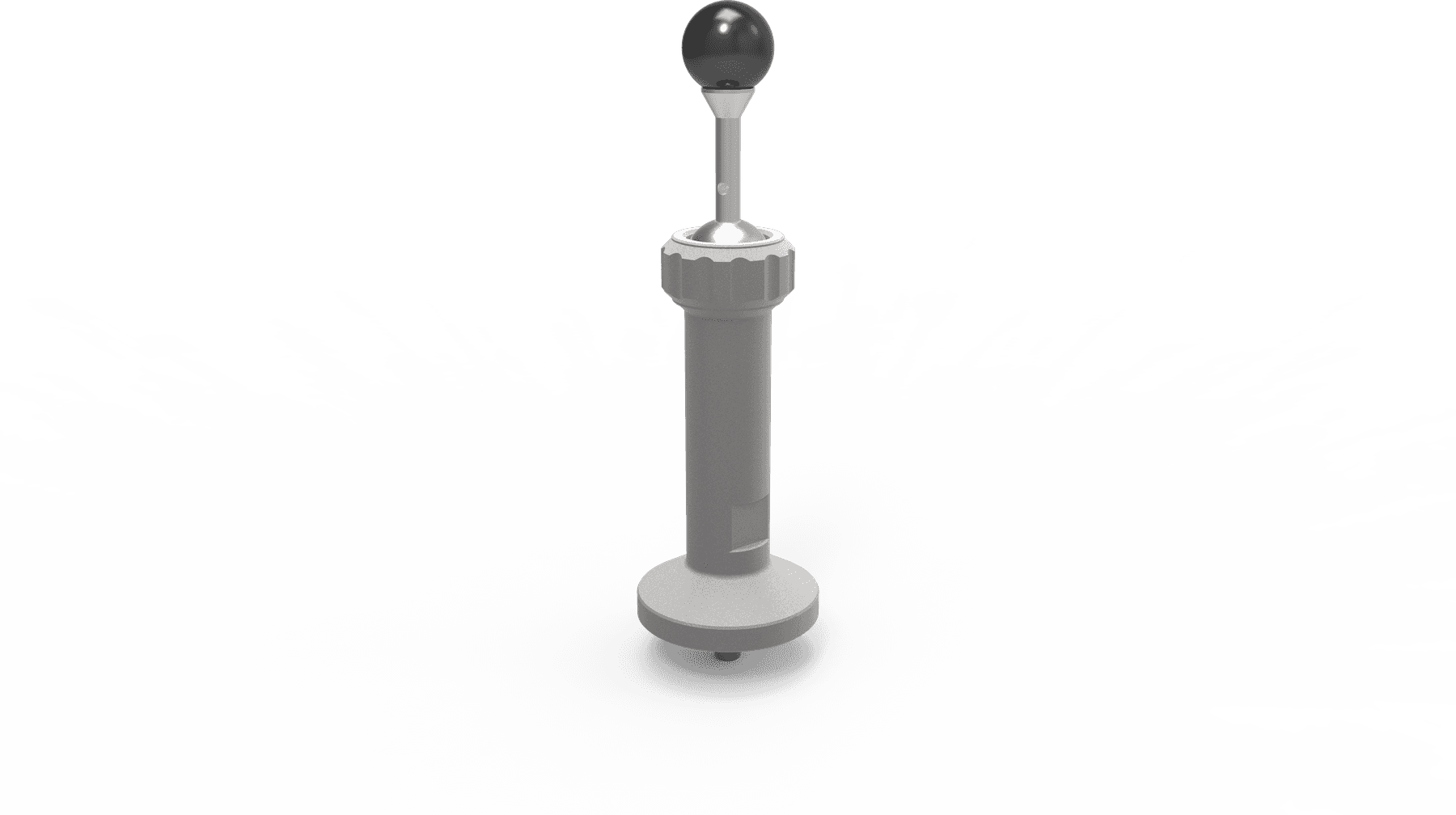

G5 Calibration Sphere
A durable reference surface for qualifying stylus assemblies and establishing effective ball radius, spatial position, and relative relationships between different styli.
G5Sphere grade
0.13 μmSphericity reference
2 OptionsCeramic or tungsten carbide
CalibratedCalibration information available
- Wear- and corrosion-resistant material choices
- Non-magnetic material options
- Probe and stylus qualification
- Selected configuration confirmed before order
Specification Snapshot
- Product type
- Reference sphere for CMM probe and stylus qualification
- Sphere grade
- G5
- Sphericity reference
- 0.13 μm for the G5 grade reference
- Material options
- Ceramic or tungsten carbide
- Primary function
- Establish probe radius, spatial position, and stylus-to-stylus relationships
Automatic Module Exchange

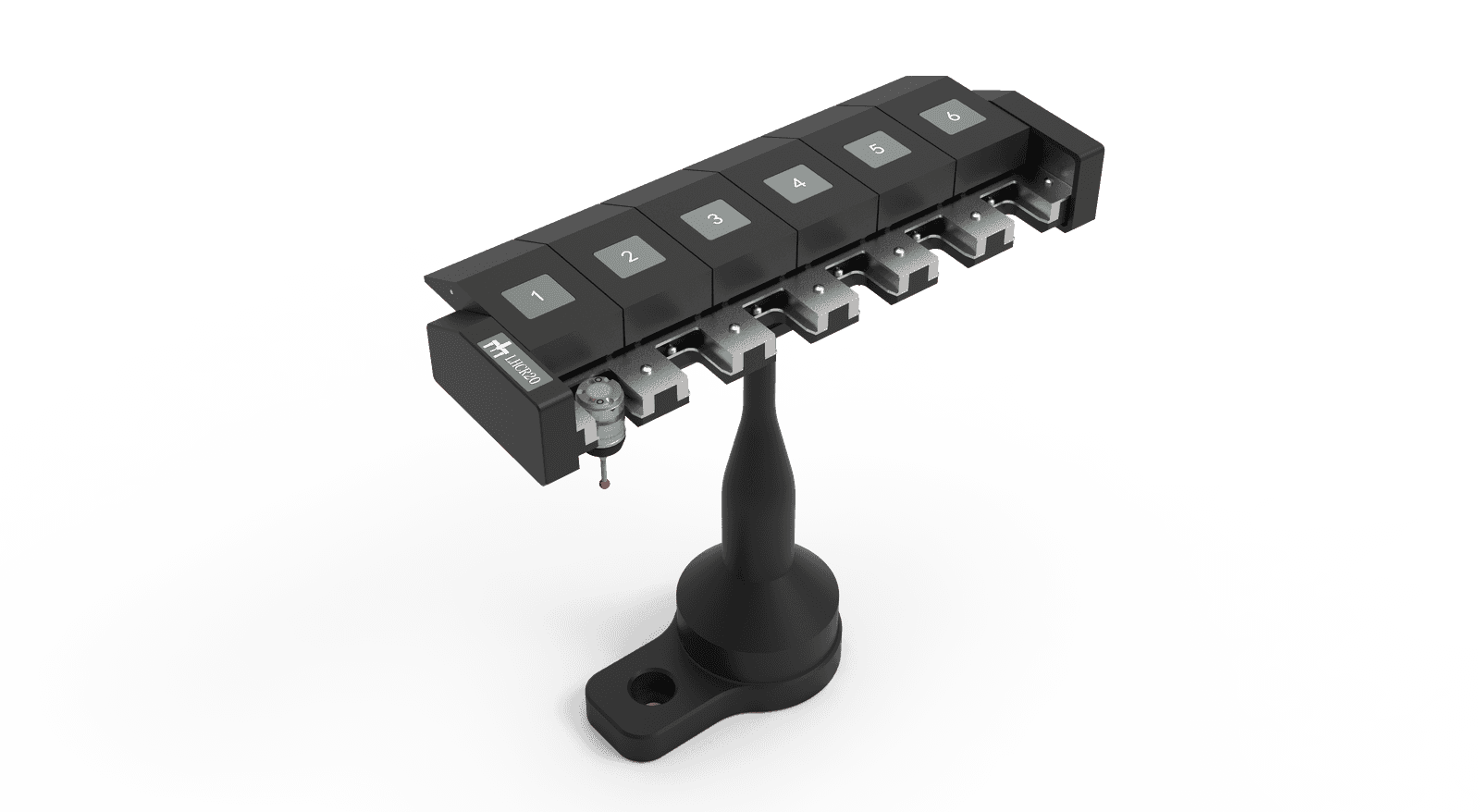

LHCR20 / LHCR25 Automatic Changing Racks
Keep probe modules protected and ready for program-controlled exchange, reducing manual intervention and supporting continuous automatic measurement.
SC30 & SP25M Stylus Exchange

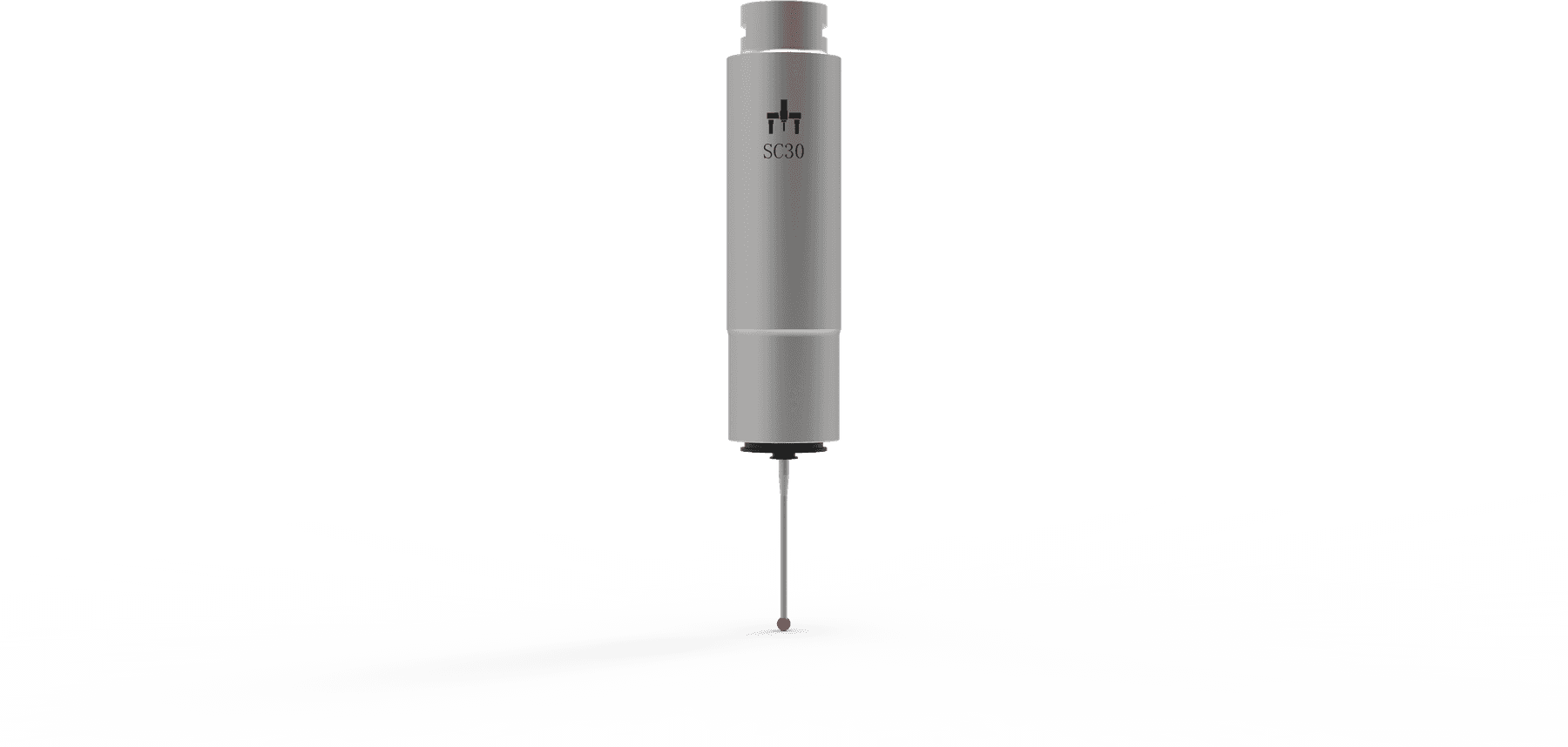

LHCR25 supports automatic exchange of styli for SC30 and SP25M probing systems.
- SC30 and SP25M stylus compatibility
- Six module ports
- Program-controlled automatic exchange
Model Comparison
- Compatible modules
- LHCR20: CF20 probe modules · LHCR25: SC30 and SP25M styli
- Capacity
- LHCR20: 6 ports · LHCR25: 6 ports
- Exchange control
- Automatic exchange under the measurement program
- Application
- Module storage and changeover for continuous automatic measurement
Prepare Rack Slots
Load the module configurations required by the measurement program.
Call the Exchange
The program commands the required module change at the rack.
Automatic Exchange
The CMM stores the active module and collects the next configuration.
Continue Measurement
Inspection resumes with the selected probe or stylus module.
Modular Workholding

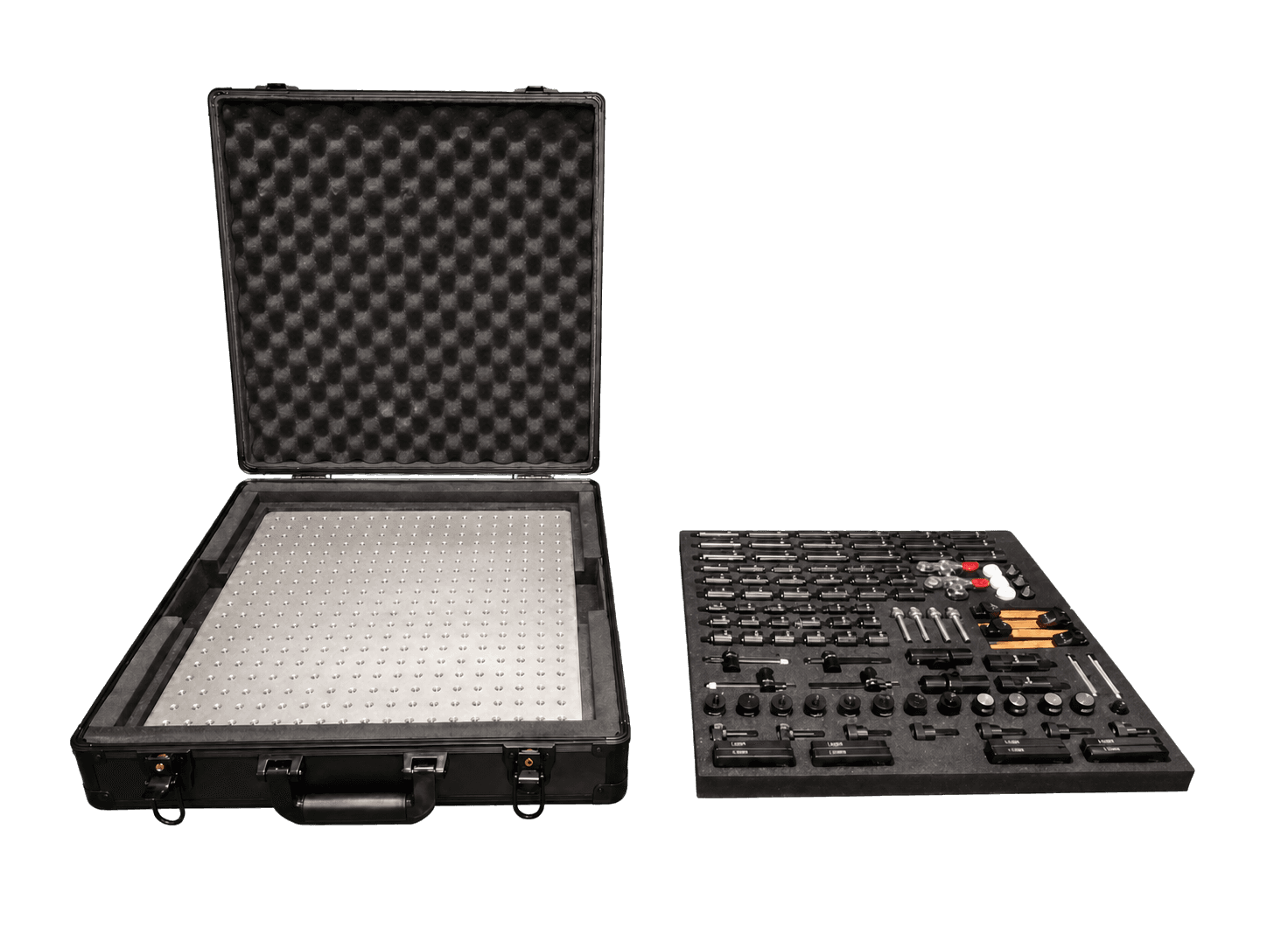

CMM Universal Fixturing System
A freely configurable combination of base plate and clamping components for supporting and locating workpieces with different sizes, shapes, and materials.
20 × 20 mmThreaded-hole grid
M8Thread size
ModularFreely combined components
FlexibleVaried workpiece geometry
- Fixture base plate with configurable supports
- Clamping plate or magnetic clamping plate set
- Supports repeatable workpiece positioning
- Designed for different sizes, shapes, and materials
Universal clamping kitConfigure Base Plate
Choose the base plate position and working area.
Select Supports
Combine the clamping and support elements required for the part.
Position Workpiece
Support and locate the component without obstructing measured features.
Measure
Run the inspection after confirming stable, repeatable positioning.
System Information
- System
- Combination-style universal CMM fixturing system
- Main components
- Fixture base plate with clamping plate set or magnetic clamping plate set
- Base plate grid
- 20 × 20 mm distributed M8 threaded holes
- Thread specification
- M8
- Suitable workpieces
- Parts with varied dimensions, shapes, and materials
Operator Control

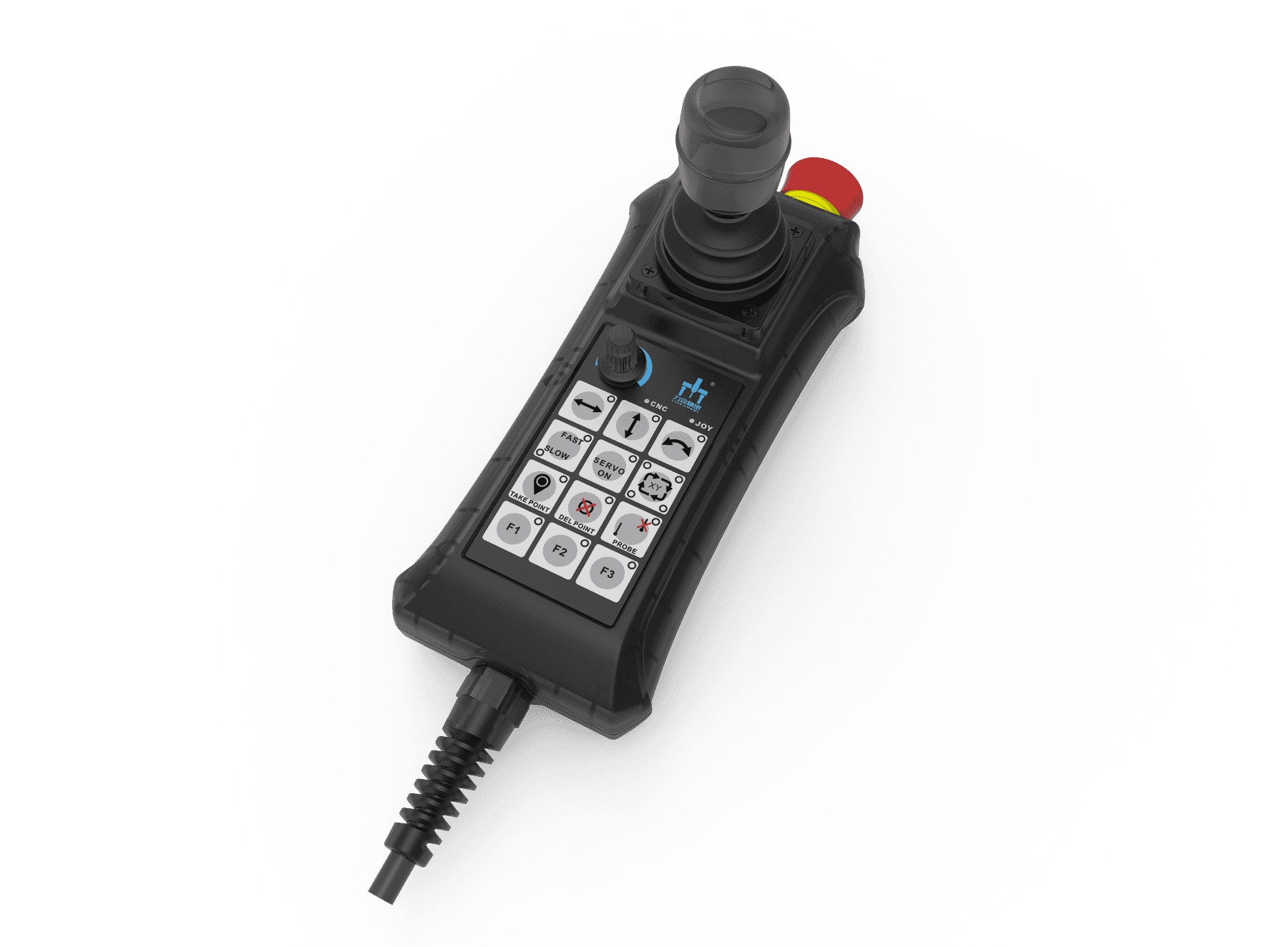

IMO Wired Operator Pendants
Economical hand controllers for three-axis coordinate measuring machines and vision measuring systems, compatible with PeakMerit MACC CMM controllers.
Function / SpecificationIMO-1/2
Connection typeWired cable
Axis movement controlYes
CNC / JOY status indicationYes
Servo on and fast / slowYes
Axis lock and speed overrideYes
Probe disableYes
Take point / delete last pointYes
Programmable function keys3
Display windowNo
Complete the System
Accessories as Part of the Complete CMM Package
Review the accessory selection together with the machine, probe head, probing modules, controller, software, and inspection application.
New CMM Systems
Specify the calibration, rack, fixturing, and operator accessories with a complete CMM package.
Existing CMM Retrofit
Coordinate accessories with the selected controller, probing system, and retrofit scope.
Distributor / Service Stock
Build practical accessory coverage around the CMM systems and probes your team supports.
Need Help Selecting the Right Accessories?
Send your CMM model, controller, probing configuration, current photos, and required workflow.
