CF20 Stylus Modules
The CF20 Stylus Modules are high-precision lower components of the CF20 touch-trigger probe system. Designed with a magnetic coupling mechanism, these modules can be changed manually or automatically without requiring stylus requalification, significantly reducing downtime and boosting measurement efficiency.
Each stylus module is tuned to a specific trigger force level—low, medium, standard, or extended—making the CF20 adaptable to a wide range of materials and probing conditions. From delicate plastic parts to rugged, unpolished surfaces, users can confidently select the appropriate module to ensure both accuracy and reliability.
Key Features:
Magnetic quick-change design for fast, repeatable module swaps
No need for stylus recalibration after changing modules
Available in four force levels: low, medium, standard, and extended
Optimized for varied surface types and measurement conditions
Fully compatible with the CF20 probe body and Renishaw’s TP20 body modular probing systems
The CF20 Stylus Modules are high-precision lower components of the CF20 touch-trigger probe system. Designed with a magnetic coupling mechanism, these modules can be changed manually or automatically without requiring stylus requalification, significantly reducing downtime and boosting measurement efficiency.
Each stylus module is tuned to a specific trigger force level—low, medium, standard, or extended—making the CF20 adaptable to a wide range of materials and probing conditions. From delicate plastic parts to rugged, unpolished surfaces, users can confidently select the appropriate module to ensure both accuracy and reliability.
Key Features:
Magnetic quick-change design for fast, repeatable module swaps
No need for stylus recalibration after changing modules
Available in four force levels: low, medium, standard, and extended
Optimized for varied surface types and measurement conditions
Fully compatible with the CF20 probe body and Renishaw’s TP20 body modular probing systems
The CF20 Stylus Modules are high-precision lower components of the CF20 touch-trigger probe system. Designed with a magnetic coupling mechanism, these modules can be changed manually or automatically without requiring stylus requalification, significantly reducing downtime and boosting measurement efficiency.
Each stylus module is tuned to a specific trigger force level—low, medium, standard, or extended—making the CF20 adaptable to a wide range of materials and probing conditions. From delicate plastic parts to rugged, unpolished surfaces, users can confidently select the appropriate module to ensure both accuracy and reliability.
Key Features:
Magnetic quick-change design for fast, repeatable module swaps
No need for stylus recalibration after changing modules
Available in four force levels: low, medium, standard, and extended
Optimized for varied surface types and measurement conditions
Fully compatible with the CF20 probe body and Renishaw’s TP20 body modular probing systems
| Model | Compatibility | Pre-travel Variation | Unidirectional Repeatability | Stylus Exchange Repeatability | Trigger Force | Compatible Stylus Length | Stylus Interface | Module Interface |
|---|---|---|---|---|---|---|---|---|
| CF20-LF | CF20 & Renishaw TP20 Body Module | ±0.72μm | ±0.42μm | Auto: ±0.5μm; Manual: ±1.0μm | X,Y: 0.06N; Z: 0.65N | 10–50mm | M2 | M8 thread |
| CF20-MF | CF20 & Renishaw TP20 Body Module | ±1.2μm | ±0.6μm | Auto: ±0.5μm; Manual: ±1.0μm | X,Y: 0.1N; Z: 0.9N | 10–50mm | M2 | M8 thread |
| CF20-SF | CF20 & Renishaw TP20 Body Module | ±0.96μm | ±0.42μm | Auto: ±0.5μm; Manual: ±1.0μm | X,Y: 0.08N; Z: 0.75N | 10–70mm | M2 | M8 thread |
| CF20-EF | CF20 & Renishaw TP20 Body Module | ±2.4μm | ±0.78μm | Auto: ±0.5μm; Manual: ±1.0μm | X,Y: 0.1N; Z: 3.2N | 10–50mm | M2 | M8 thread |

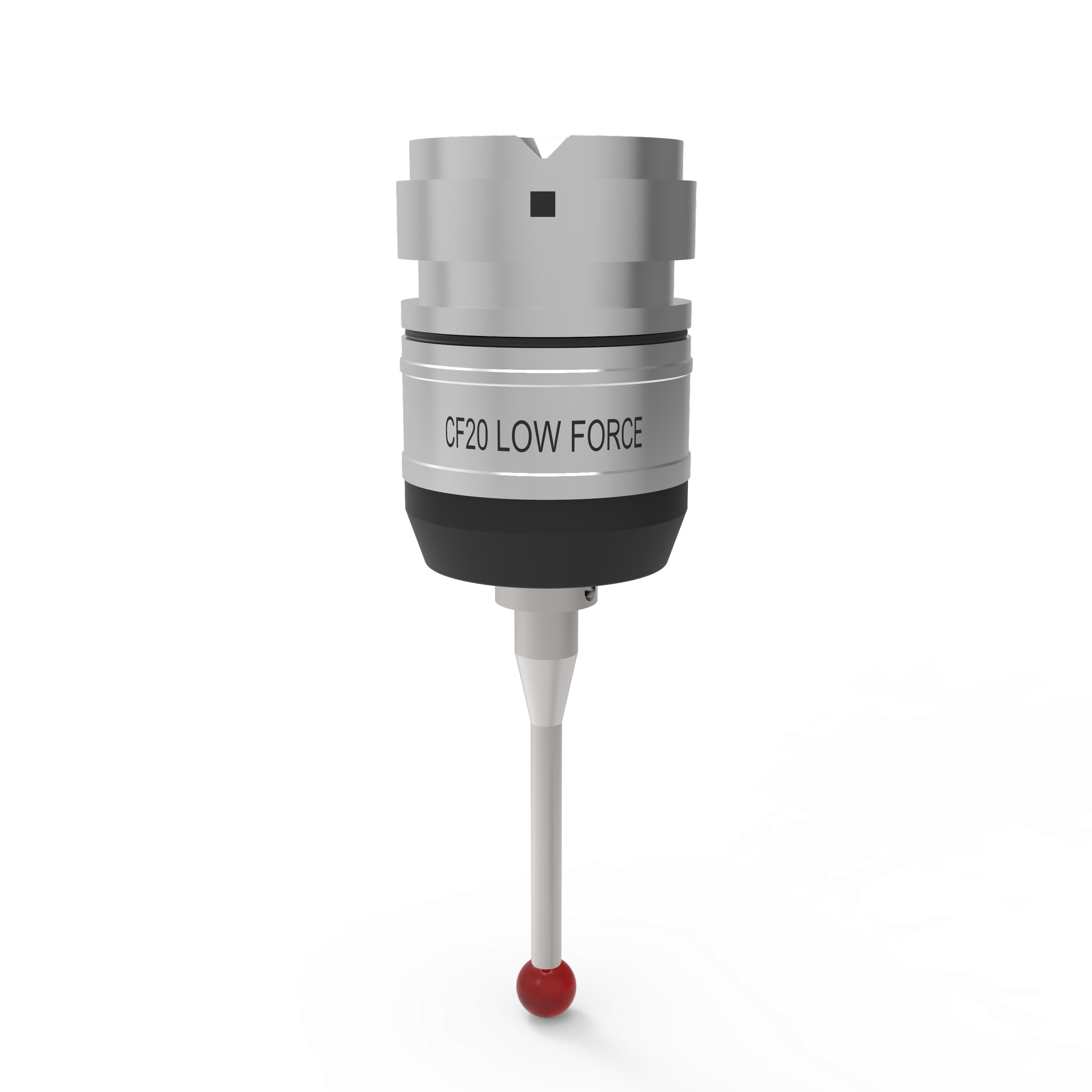

Model: CF20-LF
Compatibility: CF20 & Renishaw TP20 Body Module
Pre-travel Variation: ±0.72μm
Unidirectional Repeatability: ±0.42μm
Stylus Exchange Repeatability: Auto: ±0.5μm; Manual: ±1.0μm
Trigger Force: X,Y: 0.06N; Z: 0.65N
Compatible Stylus Length: 10–50mm
Stylus Interface: M2
Module Interface: M8 thread

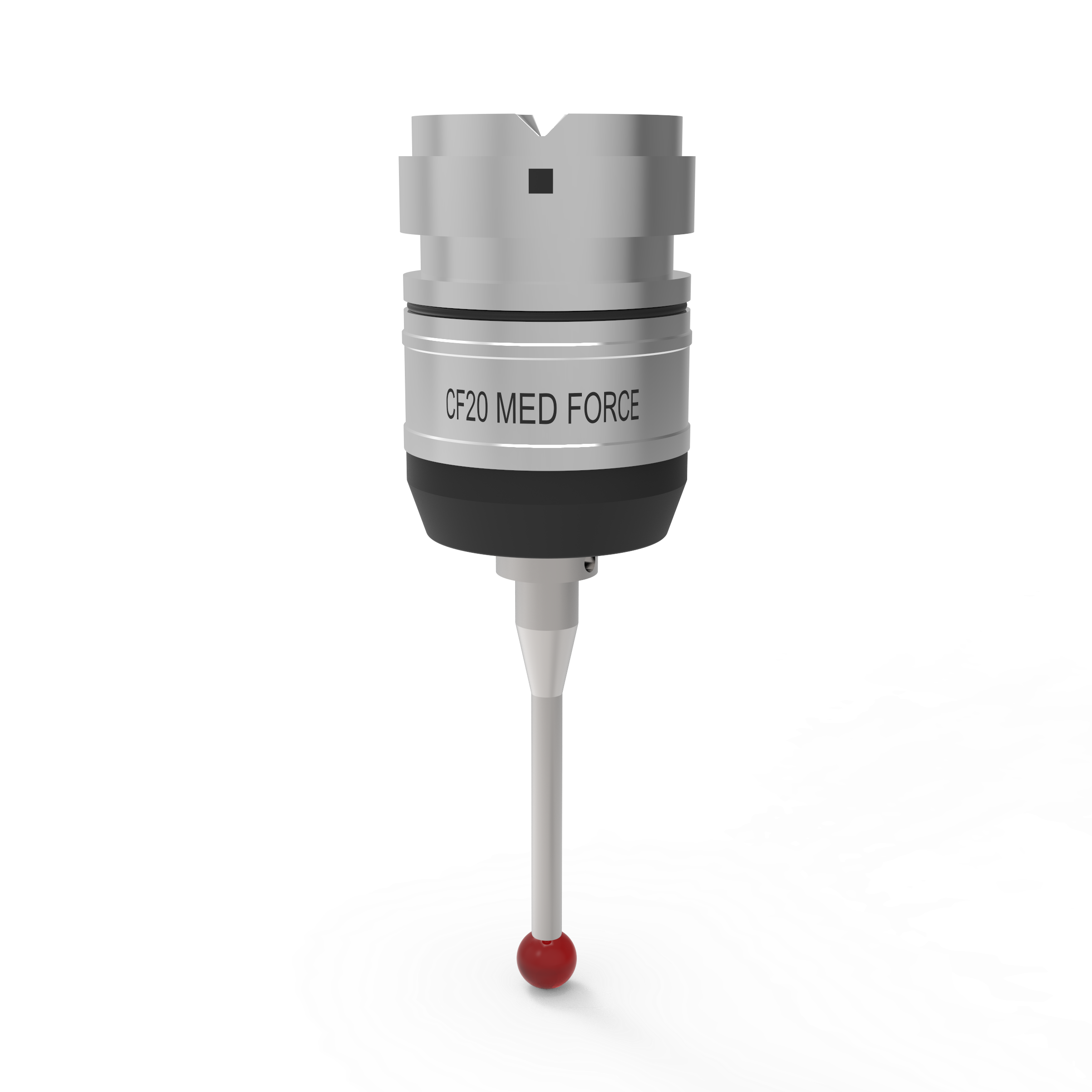

Model: CF20-MF
Compatibility: CF20 & Renishaw TP20 Body Module
Pre-travel Variation: ±1.2μm
Unidirectional Repeatability: ±0.6μm
Stylus Exchange Repeatability: Auto: ±0.5μm; Manual: ±1.0μm
Trigger Force: X,Y: 0.1N; Z: 0.9N
Compatible Stylus Length: 10–50mm
Stylus Interface: M2
Module Interface: M8 thread

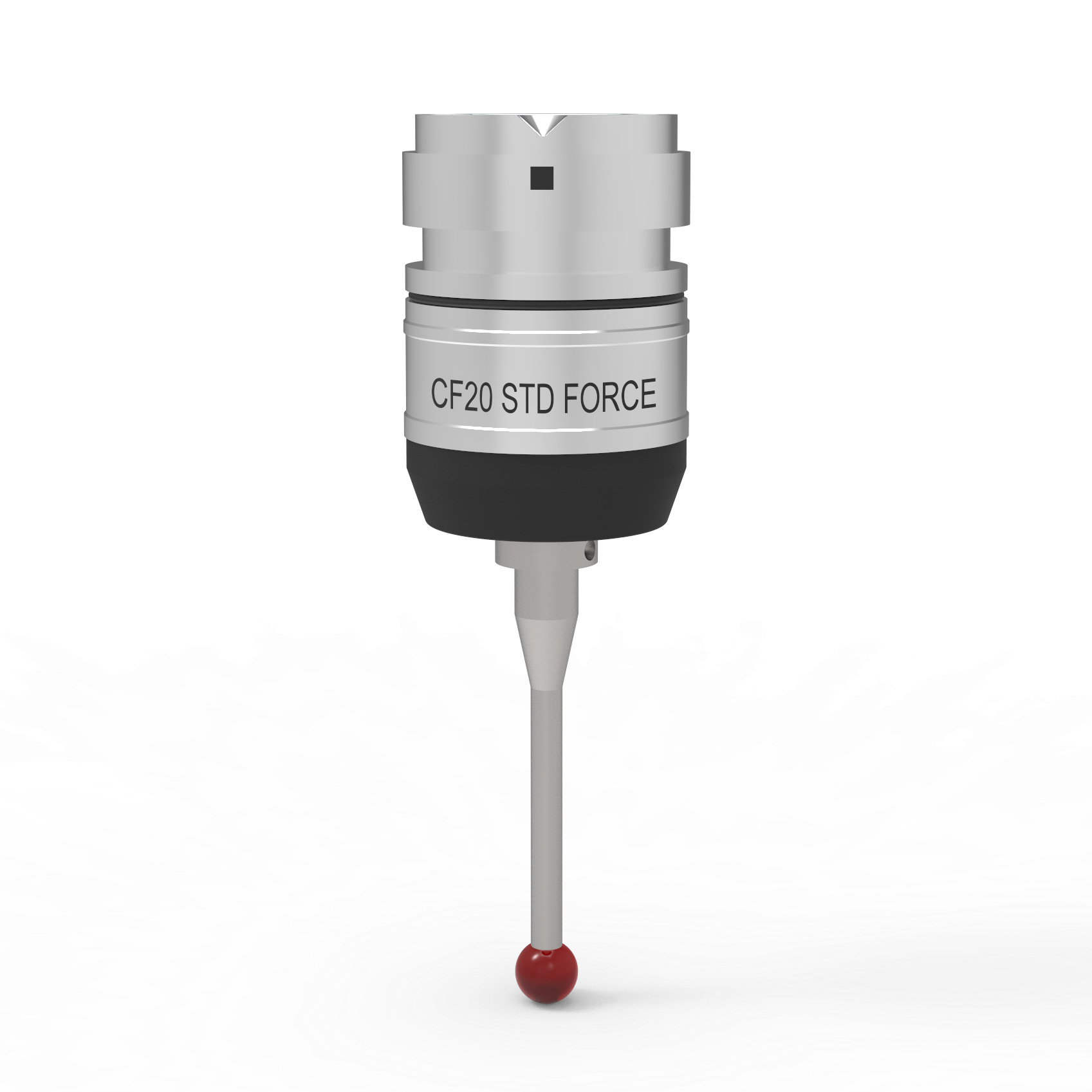

Model: CF20-SF
Compatibility: CF20 & Renishaw TP20 Body Module
Pre-travel Variation: ±0.96μm
Unidirectional Repeatability: ±0.42μm
Stylus Exchange Repeatability: Auto: ±0.5μm; Manual: ±1.0μm
Trigger Force: X,Y: 0.08N; Z: 0.75N
Compatible Stylus Length: 10–70mm
Stylus Interface: M2
Module Interface: M8 thread

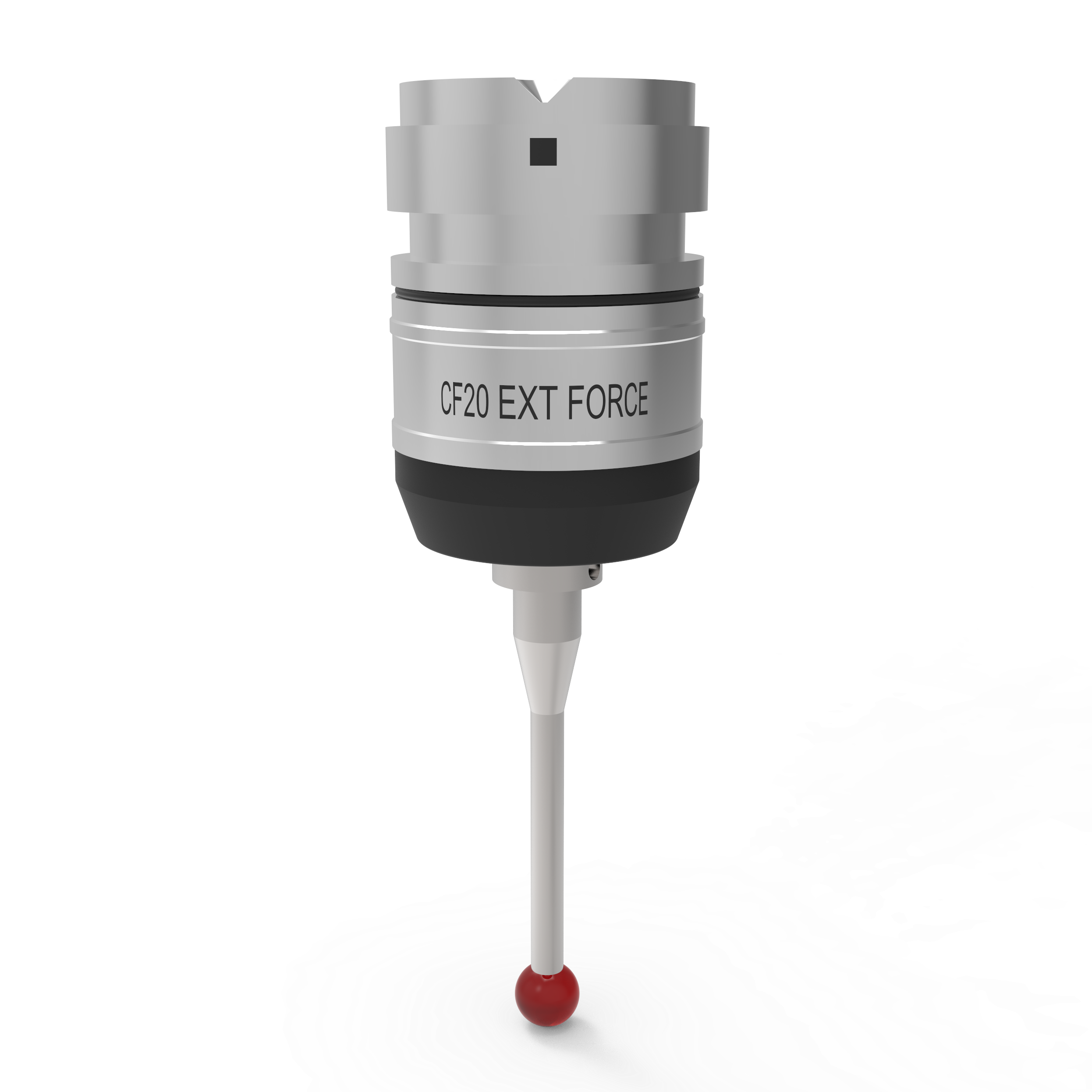

Model: CF20-EF
Compatibility: CF20 & Renishaw TP20 Body Module
Pre-travel Variation: ±2.4μm
Unidirectional Repeatability: ±0.78μm
Stylus Exchange Repeatability: Auto: ±0.5μm; Manual: ±1.0μm
Trigger Force: X,Y: 0.1N; Z: 3.2N
Compatible Stylus Length: 10–50mm
Stylus Interface: M2
Module Interface: M8 thread
