SC30 Scanning Package
Package Includes：
SC30 High-Precision Scanning Probe
(Choose from SC30-1, SC30-2, or SC30-3)CZ10M-S Motorized Probe Head
MACC3000Plus CMM Controller
Stylus Mounting Accessories
(Probe cups and magnetic coupling components)System Connection Cables
(Power and signal cables for probe head and controller)Joystick

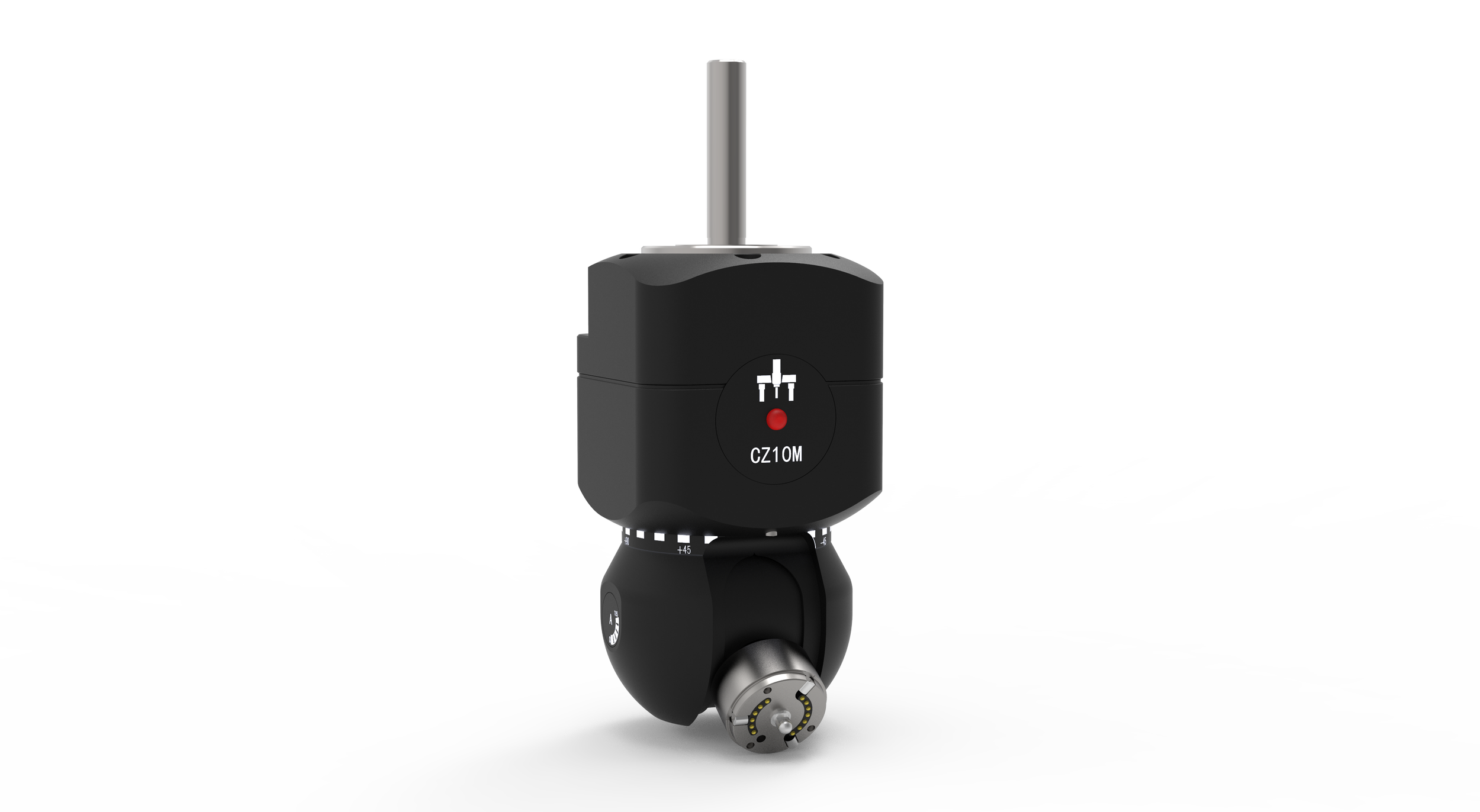

CZ10M-S Motorized Probe Head
A robust and compact motorized head featuring precise automatic indexing and compatibility with magnetic scanning probes.
Length: 126 mm
Width: 62 mm
Weight: 730 g
Mounting Method: Long shank
Probe Mount: M8 thread
Positioning Repeatability: 0.5 μm (2σ)
Index Positions: 720 positions (7.5° increments)
Full Rotation Cycle Time: 2.2 seconds
Angular Range: A-axis: 0°–105°, B-axis: ±180°
Max Drive Torque: 0.18 Nm
Max Stylus Extension: 100 mm (PAA2 extension compatible)

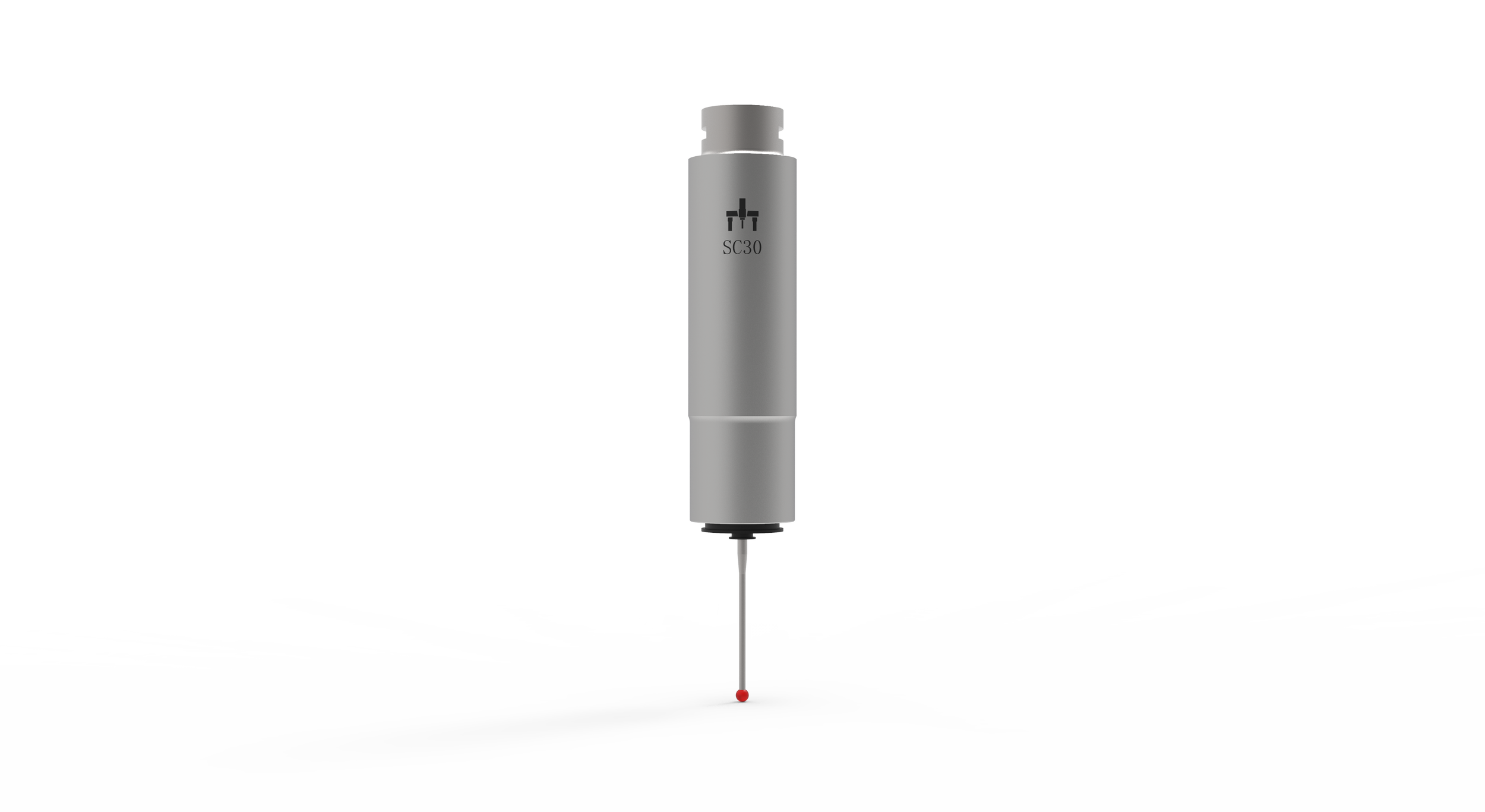

SC30 High-Precision Scanning Probe
The SC30 series supports both scanning and touch-trigger measurement modes, enabling flexible application across a wide range of parts. Its compact design allows magnetic auto-mounting on the CZ10M-S or compatible motorized heads. Internally, a high-sensitivity Hall sensor ensures outstanding performance and short measurement cycle times.

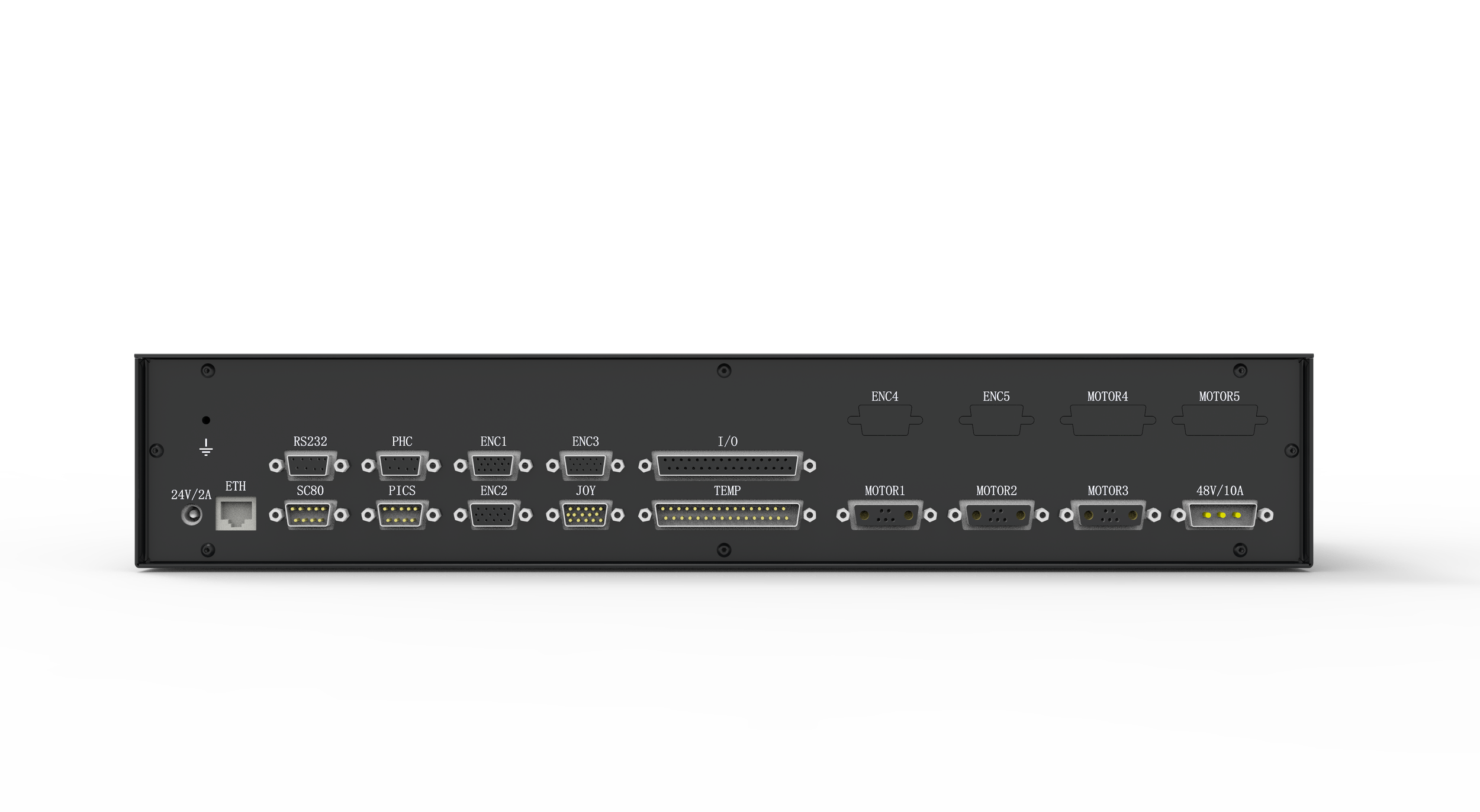

MACC3000Plus CMM Controller
A high-performance scanning controller designed for modern CMM systems.
Real-time control for both scanning and indexing
High-speed processing for stable and accurate measurement
Fully compatible with SC30 probes and CZ10M-S head
Ideal for complex part geometries and fast inspection cycles
Package Includes：
SC30 High-Precision Scanning Probe
(Choose from SC30-1, SC30-2, or SC30-3)CZ10M-S Motorized Probe Head
MACC3000Plus CMM Controller
Stylus Mounting Accessories
(Probe cups and magnetic coupling components)System Connection Cables
(Power and signal cables for probe head and controller)Joystick
CZ10M-S Motorized Probe Head
A robust and compact motorized head featuring precise automatic indexing and compatibility with magnetic scanning probes.
Length: 126 mm
Width: 62 mm
Weight: 730 g
Mounting Method: Long shank
Probe Mount: M8 thread
Positioning Repeatability: 0.5 μm (2σ)
Index Positions: 720 positions (7.5° increments)
Full Rotation Cycle Time: 2.2 seconds
Angular Range: A-axis: 0°–105°, B-axis: ±180°
Max Drive Torque: 0.18 Nm
Max Stylus Extension: 100 mm (PAA2 extension compatible)
SC30 High-Precision Scanning Probe
The SC30 series supports both scanning and touch-trigger measurement modes, enabling flexible application across a wide range of parts. Its compact design allows magnetic auto-mounting on the CZ10M-S or compatible motorized heads. Internally, a high-sensitivity Hall sensor ensures outstanding performance and short measurement cycle times.
MACC3000Plus CMM Controller
A high-performance scanning controller designed for modern CMM systems.
Real-time control for both scanning and indexing
High-speed processing for stable and accurate measurement
Fully compatible with SC30 probes and CZ10M-S head
Ideal for complex part geometries and fast inspection cycles
Package Includes：
SC30 High-Precision Scanning Probe
(Choose from SC30-1, SC30-2, or SC30-3)CZ10M-S Motorized Probe Head
MACC3000Plus CMM Controller
Stylus Mounting Accessories
(Probe cups and magnetic coupling components)System Connection Cables
(Power and signal cables for probe head and controller)Joystick
CZ10M-S Motorized Probe Head
A robust and compact motorized head featuring precise automatic indexing and compatibility with magnetic scanning probes.
Length: 126 mm
Width: 62 mm
Weight: 730 g
Mounting Method: Long shank
Probe Mount: M8 thread
Positioning Repeatability: 0.5 μm (2σ)
Index Positions: 720 positions (7.5° increments)
Full Rotation Cycle Time: 2.2 seconds
Angular Range: A-axis: 0°–105°, B-axis: ±180°
Max Drive Torque: 0.18 Nm
Max Stylus Extension: 100 mm (PAA2 extension compatible)
SC30 High-Precision Scanning Probe
The SC30 series supports both scanning and touch-trigger measurement modes, enabling flexible application across a wide range of parts. Its compact design allows magnetic auto-mounting on the CZ10M-S or compatible motorized heads. Internally, a high-sensitivity Hall sensor ensures outstanding performance and short measurement cycle times.
MACC3000Plus CMM Controller
A high-performance scanning controller designed for modern CMM systems.
Real-time control for both scanning and indexing
High-speed processing for stable and accurate measurement
Fully compatible with SC30 probes and CZ10M-S head
Ideal for complex part geometries and fast inspection cycles
| Parameter | SC30-1 | SC30-2 | SC30-3 |
|---|---|---|---|
| Weight (g) | 180 | 180 | 180 |
| Dimensions (mm) | 33 | 33 | 33 |
| Stylus Thread Interface | M3 | M3 | M3 |
| Measuring Range (mm) | ±0.5 | ±0.5 | ±0.5 |
| Stiffness (N/mm) | 0.6 N/mm (longest stylus) ~ 1.5 N/mm (shortest stylus) | 0.6 N/mm (longest stylus) ~ 1.5 N/mm (shortest stylus) | 0.6 N/mm (longest stylus) ~ 1.5 N/mm (shortest stylus) |
| Accuracy (μm) | 0.1 | 0.1 | 0.1 |
| Overtravel (mm) | X,Y=±1.5; +Z=±1.7; -Z=1.2 | X,Y=±1.5; +Z=±1.7; -Z=1.2 | X,Y=±1.5; +Z=±1.7; -Z=1.2 |
| Stylus Length (mm) | Axial: 21–100 mm; L-shaped: 40 mm | Axial: 100–250 mm; L-shaped: 40 mm | Axial: 30–150 mm; L-shaped: 65 mm |
SC30-1
Weight: 180g
Dimensions: 33mm
Stylus Thread Interface: M3
Measuring Range: ±0.5mm
Stiffness: 0.6 N/mm ~ 1.5 N/mm
Accuracy: 0.1μm
Overtravel: X,Y=±1.5; +Z=±1.7; -Z=1.2
Stylus Length: Axial: 21–100mm; L-shaped: 40mm
SC30-2
Weight: 180g
Dimensions: 33mm
Stylus Thread Interface: M3
Measuring Range: ±0.5mm
Stiffness: 0.6 N/mm ~ 1.5 N/mm
Accuracy: 0.1μm
Overtravel: X,Y=±1.5; +Z=±1.7; -Z=1.2
Stylus Length: Axial: 100–250mm; L-shaped: 40mm
SC30-3
Weight: 180g
Dimensions: 33mm
Stylus Thread Interface: M3
Measuring Range: ±0.5mm
Stiffness: 0.6 N/mm ~ 1.5 N/mm
Accuracy: 0.1μm
Overtravel: X,Y=±1.5; +Z=±1.7; -Z=1.2
Stylus Length: Axial: 30–150mm; L-shaped: 65mm
