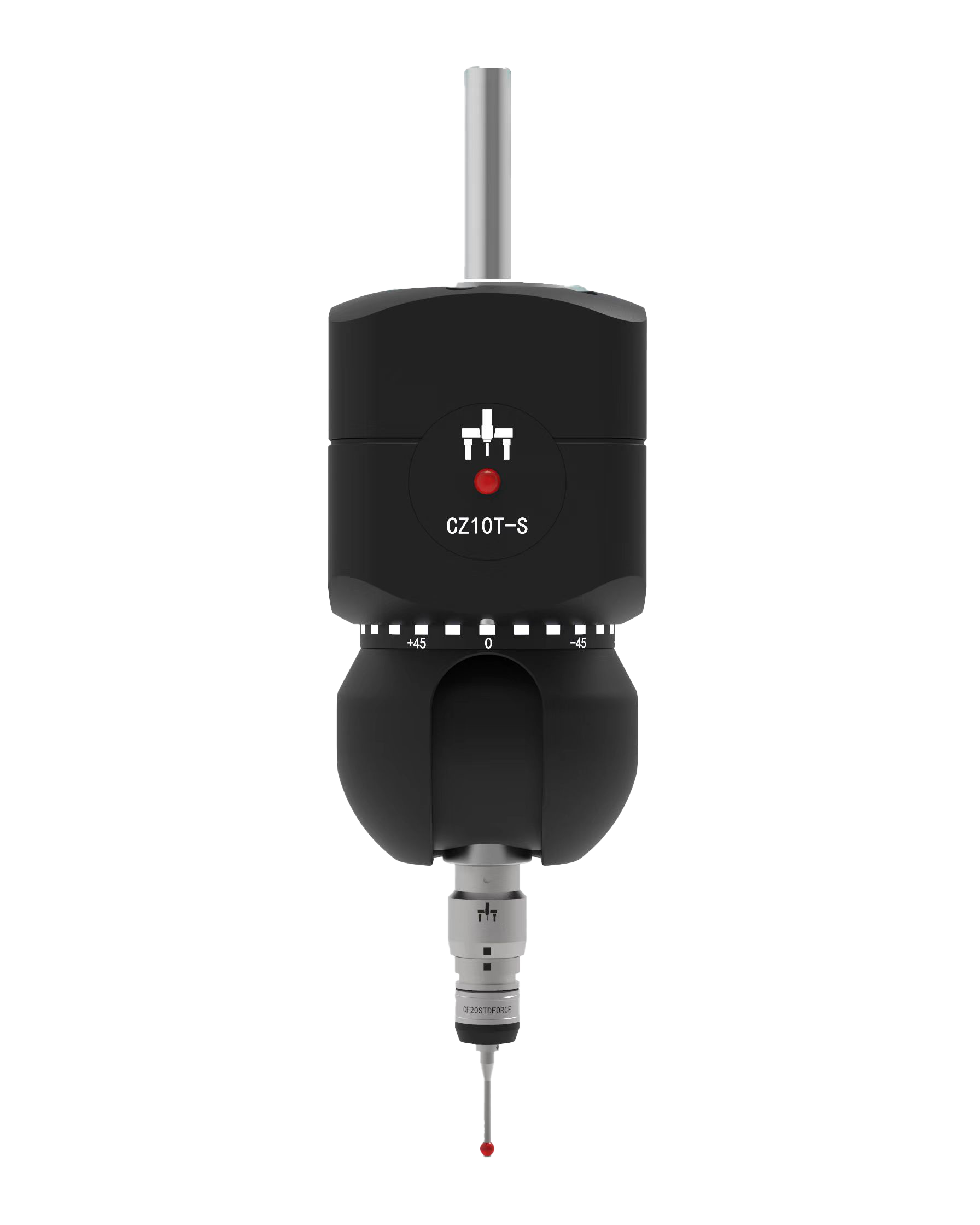

CZ10T-S Motorized Probe Head
Fast, Precise, and Built for High-Throughput Metrology
The CZ10T-S is a high-speed motorized indexing probe head engineered through tens of thousands of parameter optimizations and tests. Designed to meet the demands of modern high-volume precision inspection, the CZ10T-S completes a full 360° rotation in just 2.2 seconds—faster than Renishaw’s PH10T-Plus probe head.
With 720 repeatable positioning angles, ±0.5 μm repeatability, and fast automatic indexing, it’s ideal for industries such as consumer electronics (3C), precision machining, and small component inspection, where both throughput and accuracy are critical.
Key Advantages:
High-speed indexing for time-critical inspection routines
Ultra-precise repeatability for high-accuracy measurement
Wide angular coverage with 7.5° increments in dual axes
Compatible with Renishaw M8 probes, including TP20 and our CF20 series
Ideal for automated CMM environments
Specifications:
Length: 113 mm
Width: 62 mm
Weight: 725 g
Mounting: Shank-mounted
Probe Interface: M8 threaded (supports TP20, CF20, etc.)
Repeatability: 0.5 μm (2σ)
Full Rotation Time (360°): 2.2 seconds
Indexing Positions: 720
Maximum Output Torque: 0.18 Nm
Extension Compatibility: Up to 100 mm using PAA3 extension bar
Indexing Angles:
A-axis: 0° to 105°
B-axis: ±180°
7.5° increments
Please note: using the CZ10T-S may require adding our probe head controller or upgrading your CMM controller, depending on your current system. Our probe head controller supports Deva, Pantec, and legacy UCCT3 (Non-Plus Version) systems.
Please contact us for a solution.
